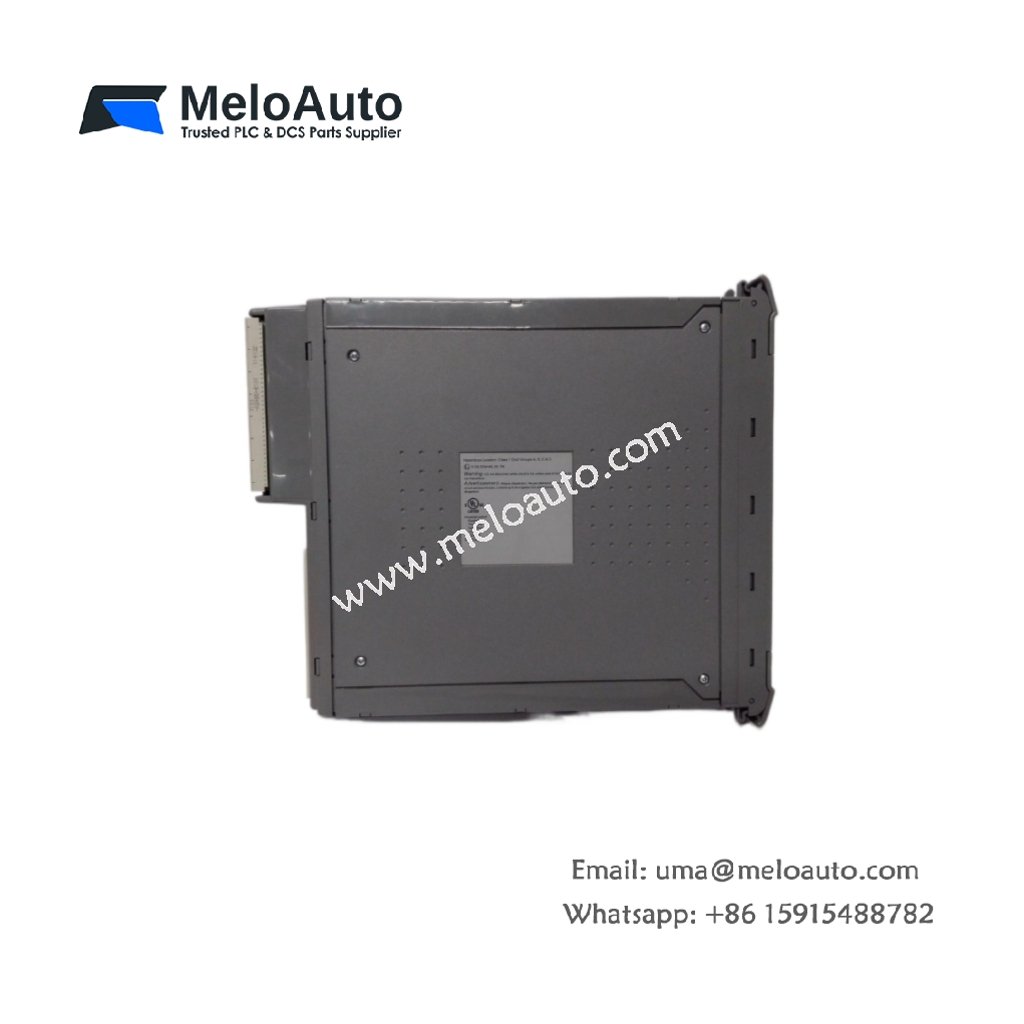

ICS Triplex T8461 Digital Output Module for Trusted TMR Systems

Core High-Integrity Output Control for Safety Applications

The ICS Triplex T8461 is a 40-channel digital output module within the Trusted TMR (Triple Modular Redundant) system, now part of the Schneider Electric Triconex product line . This module provides high-integrity 24 VDC or 48 VDC outputs to actuate critical field devices like emergency shutdown valves and relays in safety instrumented systems (SIS) . It meets IEC 61508 SIL 3 standards, ensuring extremely high reliability for demanding process safety applications .

TMR Architecture and Self-Diagnostics for Fault Tolerance

The T8461 employs a TMR architecture with three independent output circuits that operate in parallel . The system performs a hardware “majority vote” on all outputs, ensuring correct operation continues even if one channel fails . It supports hot-swap module replacement, allowing for maintenance without process interruption . Furthermore, integrated self-diagnostics and a 2-minute test cycle provide early fault detection, maximizing system availability and preventing costly downtime .

Technical Specifications and Integration

The ICS Triplex T8461 is designed for use in extreme industrial environments, from freezing temperatures to high heat . Its 40 output channels feature fast response times and high accuracy, making it suitable for the tight control loops found in process-critical industries. The following table details the module’s key specifications .

Application in Safety Instrumented Systems (SIS)

System integrators use this module in critical industries like oil & gas, chemical processing, and power generation to drive emergency shutdown valves and safety interlocks . It provides the high reliability necessary for demanding control applications in hazardous environments. The ICS Triplex T8461 is a core component for building robust, available, and certifiable safety loops.
