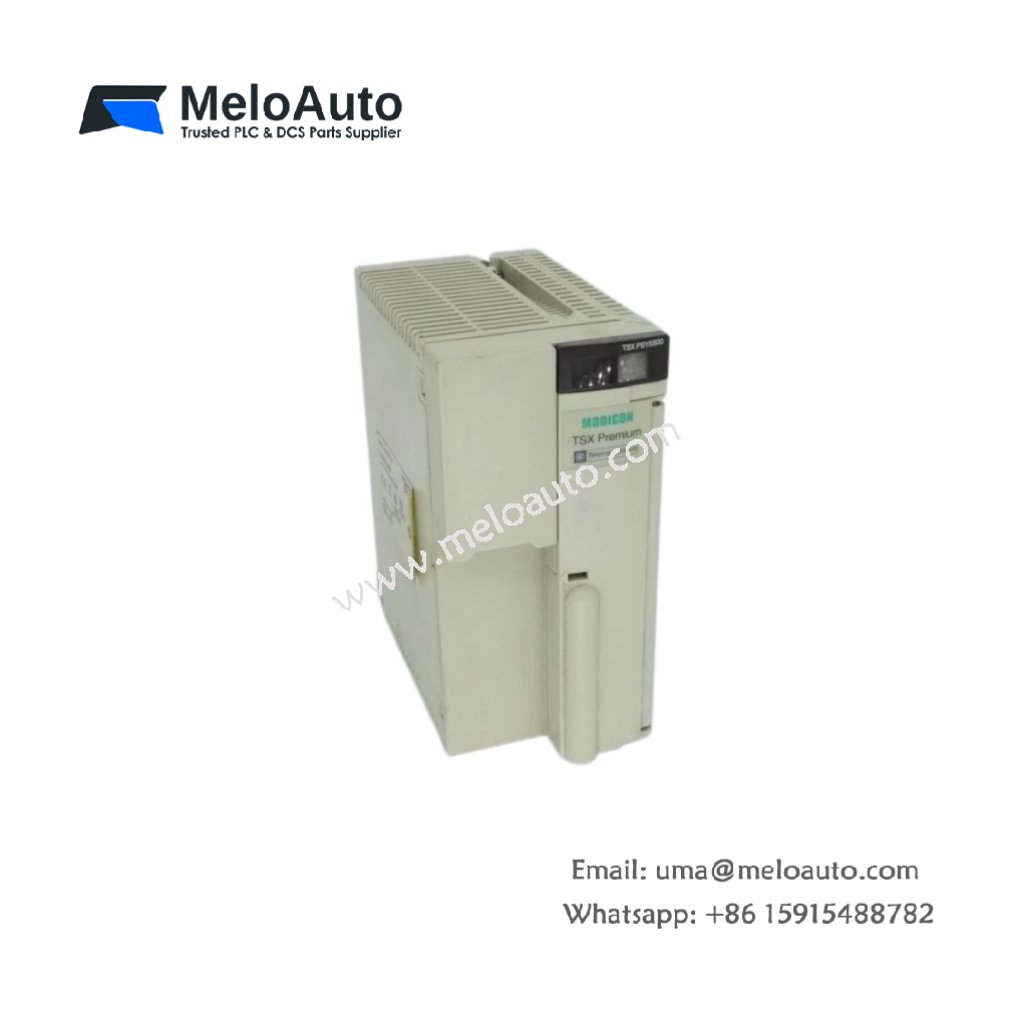

Schneider TSXPSY5500M | Power Supply Module

The Schneider TSXPSY5500M provides reliable DC power for the Modicon Premium automation platform. This power supply module converts 100-240 V AC input to 5 V DC and 24 V DC outputs. It delivers up to 55 W of total output power for rack-mounted modules. Weighing only 0.85 kg, the Schneider TSXPSY5500M fits into any standard Premium rack slot. Its dimensions measure 187.9 mm x 151.5 mm x 160 mm.

Output Specifications and Load Capacity

The Schneider TSXPSY5500M supplies 5 V DC at 8 A for logic and backplane operations. It also provides 24 V DC at 0.5 A for auxiliary field power needs. The module achieves 85% typical efficiency for reduced heat generation. Moreover, the Schneider TSXPSY5500M includes built-in overload and short-circuit protection. Consequently, it automatically shuts down during fault conditions and recovers when the fault clears.

Input Specifications and Energy Storage

The Schneider TSXPSY5500M accepts a wide input voltage range from 85 V AC to 264 V AC. This module also supports 47 Hz to 63 Hz frequency variations for global compatibility. It features no internal battery for complete maintenance-free operation. The Schneider TSXPSY5500M includes 1,000 µF of output capacitance for energy storage. This capacitance provides 20 ms of hold-up time during input power interruptions. Therefore, your PLC continues running through brief power dips and voltage sags.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider TSXPSY5500M
Product Category	Modicon Premium Power Supply Module
Input Voltage Range (AC)	85 V AC to 264 V AC
Input Frequency	47 Hz to 63 Hz
Inrush Current	30 A maximum at 115 V AC
Output 1 (Logic)	5 V DC at 8 A
Output 2 (Auxiliary)	24 V DC at 0.5 A
Total Output Power	55 W maximum
Efficiency	85% typical at full load
Hold-up Time	20 ms at 5 V DC output
Output Capacitance (Energy Storage)	1,000 µF
Ripple and Noise (5V)	< 50 mV peak-to-peak
Ripple and Noise (24V)	< 120 mV peak-to-peak
Line Regulation	±1% maximum
Load Regulation	±2% maximum
Protection Features	Overload, short-circuit, over-voltage
Protection Reset	Automatic after fault removal
Current Consumption (Input)	0.8 A at 115 V AC
Energy Storage Type	Electrolytic capacitor (no battery)
Number of Components	1 main PCB + transformer + 2 capacitors + metal housing
Net Weight	0.85 kg (850 grams)
Gross Weight (packaged)	1.05 kg
Dimensions (H x W x D)	187.9 mm x 151.5 mm x 160 mm
Cooling Method	Natural convection (no fan)
MTBF	500,000 hours
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA, ATEX Zone 2

Installation and Application Details

The Schneider TSXPSY5500M mounts into the leftmost slot of any Premium rack. This module supplies power to all other modules in the same rack. Connect the line (L), neutral (N), and protective earth (PE) terminals correctly. The Schneider TSXPSY5500M requires no external cooling fan for normal operation. It suits large Premium systems with multiple I/O and communication modules. Thus, this power supply delivers stable DC power for demanding industrial control applications. Replace the unit only if it fails, as it contains no user-serviceable parts inside.
