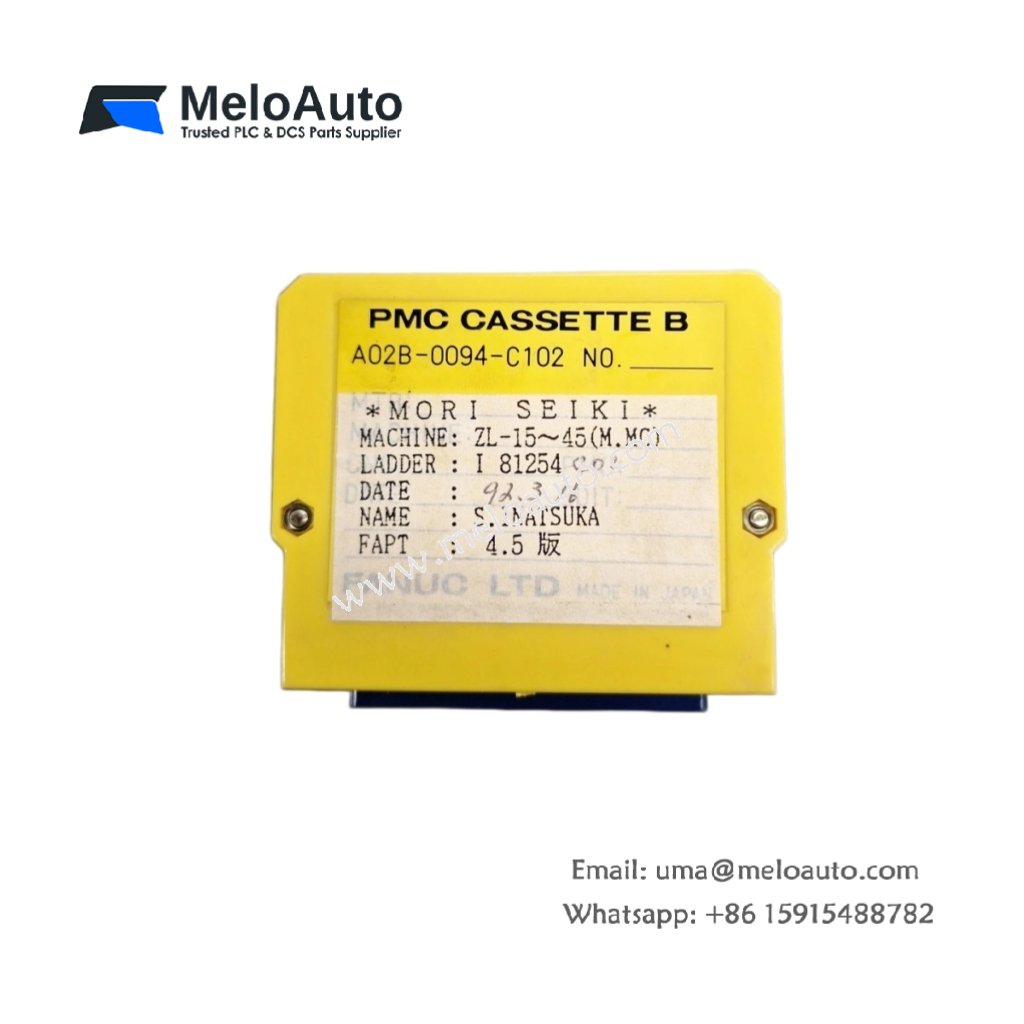

GE A02B-0094-C102 PMC Cassette B | 4KB | 128 I/O

This PMC cassette B provides programmable logic control for GE Fanuc CNC systems. It executes machine sequences and handles I/O signals for automation tasks. You can install this unit directly into the CNC main board.

Technical Specifications

Parameter	Details
Brand	GE Fanuc
Model	GE A02B-0094-C102
Category	PMC Cassette B (Programmable Machine Controller)
Dimensions (H x W x D)	45 mm x 120 mm x 180 mm
Weight	0.28 kg
Memory Type	CMOS RAM with battery backup
Program Capacity	4 KB (approximately 2000 steps)
Number of I/O Points Supported	128 digital inputs + 128 digital outputs
Processing Speed	5 µs per basic instruction
Number of Internal Components	1 CPU + 1 memory chip + 1 interface connector + 1 PCB
Interface Type	64-pin edge connector (matches CNC backplane)
Scan Time	10 ms per 1K of logic (typical)
Power Supply	5 V DC from CNC backplane
Current Draw (5V)	350 mA typical
Built-in Energy Storage	1000 µF capacitor + lithium battery socket
Battery Type	3.6 V lithium (BR-2/3A or equivalent)
Data Retention (with battery)	Approximately 30 days
Status Indicators	2 LEDs (POWER, RUN)
Operating Temperature	0°C to 55°C
Humidity Tolerance	10% to 90% non-condensing

Detailed Feature Overview

This cassette stores up to 4 KB of user logic for machine control. It executes basic instructions in just 5 microseconds each. The unit supports 128 inputs and 128 outputs for medium-sized CNC applications.

A 1000 µF capacitor provides short-term energy buffering during power dips. With an optional lithium battery, data retention reaches about 30 days. Consequently, your PMC logic remains safe through brief outages.

You will find a 64-pin edge connector at the bottom of this unit. This connector interfaces directly with the CNC backplane bus. The scan time of 10 ms per 1K suits typical machine tool cycles.

Installation and Compatibility

GE A02B-0094-C102 fits PMC cassette slots in Fanuc CNC systems like Series 0, 15, or 18. Insert the cassette firmly until the latch clicks. Replace the lithium battery every two years for reliable backup.
