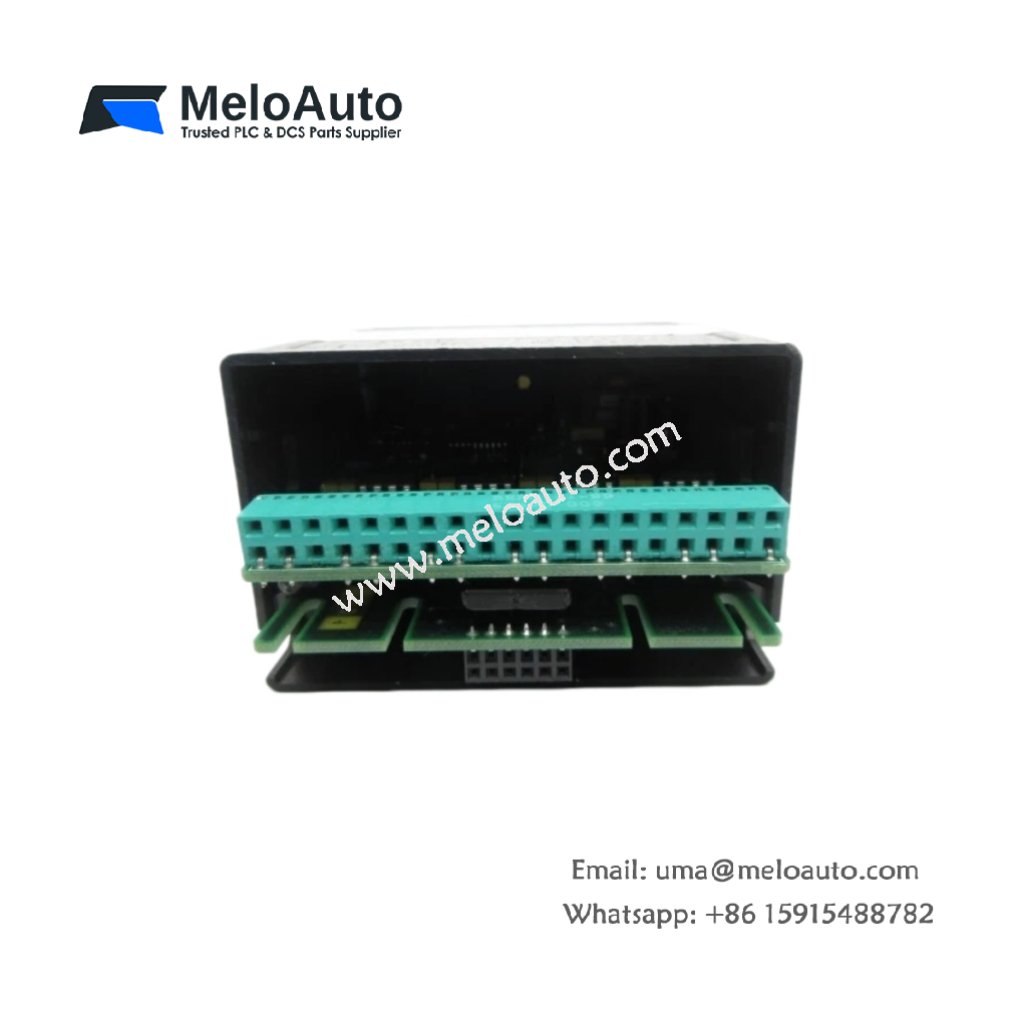

GE HE670ADC830 Analog Input Module

This high-density analog input module captures precision signals for GE Genius I/O systems. The GE HE670ADC830 accepts up to eight independent analog channels from field transmitters. Each channel supports voltage or current inputs with 16-bit resolution for accurate measurements. Consequently, process engineers can monitor pressure, flow, temperature, and level signals reliably.

Technical Specifications of the Analog Input Module

The GE HE670ADC830 measures 140 mm in height and 115 mm in depth. Its width fits a standard Genius I/O terminal base at 70 mm. The module weighs approximately 0.32 kg including all internal conversion circuitry. A single front panel LED indicator shows module power and communication status. The rear side uses a 24-pin connector for bus interface and field wiring. This design stores minimal energy in small filtering capacitors only. Therefore, the module contains no batteries or large energy storage elements.

Functional Features and Configuration Flexibility

The GE HE670ADC830 allows you to configure each channel independently from the host controller. You can mix voltage and current inputs across the eight channels without any jumpers. The onboard analog-to-digital converter provides automatic ranging for each selected input type. An integrated digital filter removes 50Hz and 60Hz noise from industrial environments. Consequently, the module delivers stable, accurate readings even near variable frequency drives.

Installation and System Compatibility

You must mount this analog input module onto a compatible Genius I/O terminal base. The GE HE670ADC830 inserts into the base without any tools or brackets. A removable terminal block accepts field wiring from 16 to 22 AWG. The module automatically identifies itself to the Genius bus controller upon power-up. Always verify input signal ranges before connecting field transmitters to the system.

Maintenance and Operational Benefits

Because the GE HE670ADC830 stores no battery-backed data, it needs no periodic battery changes. Technicians can replace the module without losing calibration or configuration settings. The module stores all channel configuration in non-volatile Flash memory. Consequently, maintenance becomes simple and cost-effective for large Genius I/O installations.
