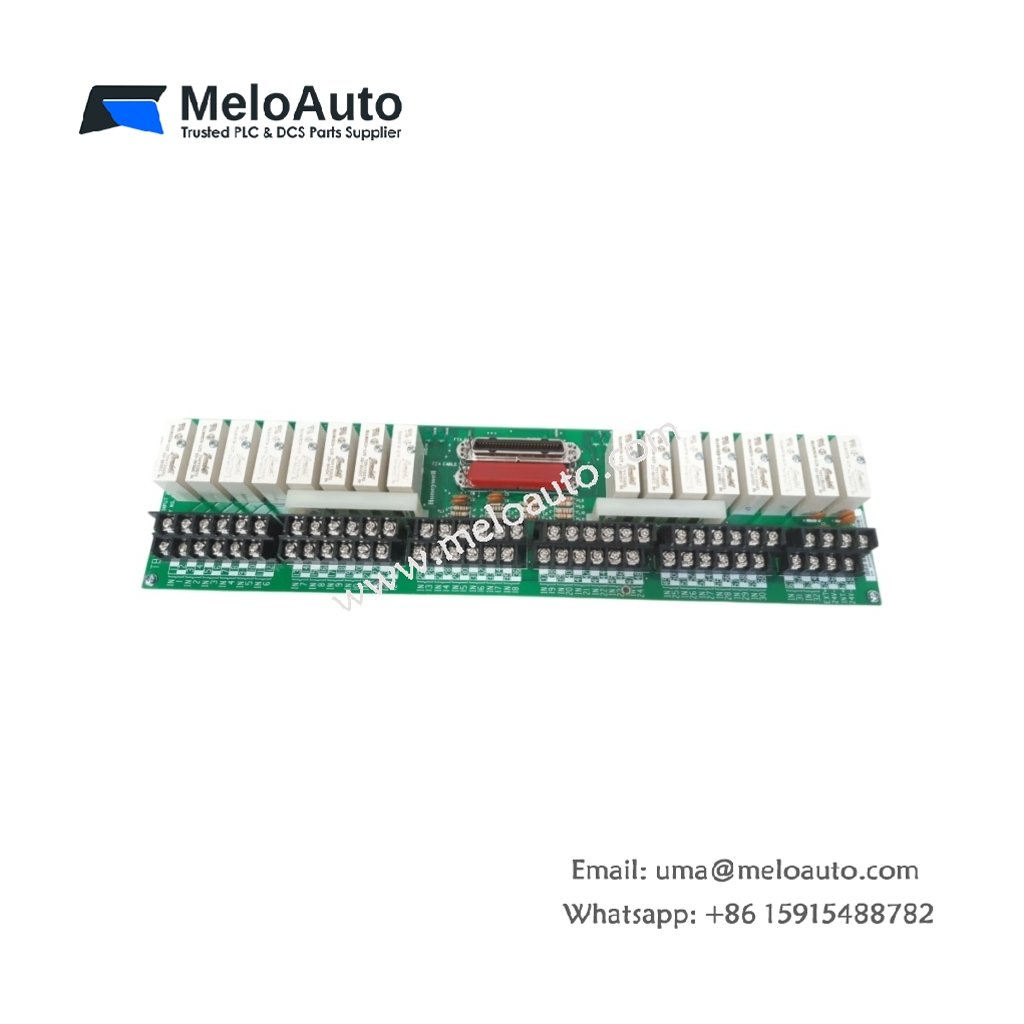

Honeywell MC-TDID52 51304441-275 Digital Input Module

Product Overview

The Honeywell MC-TDID52 51304441-275 delivers reliable digital input processing for industrial control systems. This module accepts 32 discrete input channels and operates with a nominal voltage range of 24 VDC. Each channel provides optical isolation to protect the control system from field wiring transients. The module supports field devices like limit switches, push buttons, and proximity sensors.

Technical Specifications

Parameter	Specification
Model Number	MC-TDID52 51304441-275
Input Channels	32 discrete inputs
Nominal Voltage	24 VDC
Input Voltage Range	20–30 VDC
Input Current	7 mA per channel typical
Isolation	Optical isolation, 1500 VAC
Power Dissipation	6.5 W typical
Operating Temperature	0°C to 60°C
Storage Temperature	–40°C to 85°C
Relative Humidity	5% to 95% (non-condensing)

Physical Dimensions and Mounting

This module measures 125 mm in height, 45 mm in width, and 160 mm in depth. The unit weighs approximately 0.45 kg. It mounts directly onto a standard DIN rail within a Honeywell Series C cabinet. The front face includes 32 LED indicators that display the real-time status of each input channel. These LEDs provide immediate visual feedback for troubleshooting and maintenance.

Electrical Interface and Connectivity

A 50-pin D-sub connector serves as the primary interface for field wiring. The connector supports both sinking and sourcing input configurations for flexible system design. Each input channel features built-in surge suppression and reverse polarity protection. The module draws its operating power directly from the backplane, which simplifies installation. Typical power consumption stays under 8 W under full load conditions.

Performance and Reliability

The MC-TDID52 51304441-275 scans all 32 inputs within a single control cycle for deterministic response times. The optical isolation barrier withstands 1500 VAC for one minute during dielectric testing. This module also includes self-diagnostic routines that check for open wires and short circuits. Meanwhile, the firmware monitors channel health and reports faults to the main controller. These features ensure high availability in critical process applications.

Installation and Compatibility

This input module integrates seamlessly with the Honeywell TDC 3000 and Experion PKS systems. You can install the module in any I/O slot of the Series C chassis without additional configuration jumpers. The backplane automatically assigns addresses and handles power distribution. For redundant applications, you can pair two modules for hot-standby operation. Always verify firmware revision compatibility before installation.

Environmental Compliance

The module meets RoHS and WEEE directives for environmental responsibility. It also carries CE marking and UL certification for global deployment. The unit operates reliably in industrial environments with moderate vibration and electromagnetic interference.
