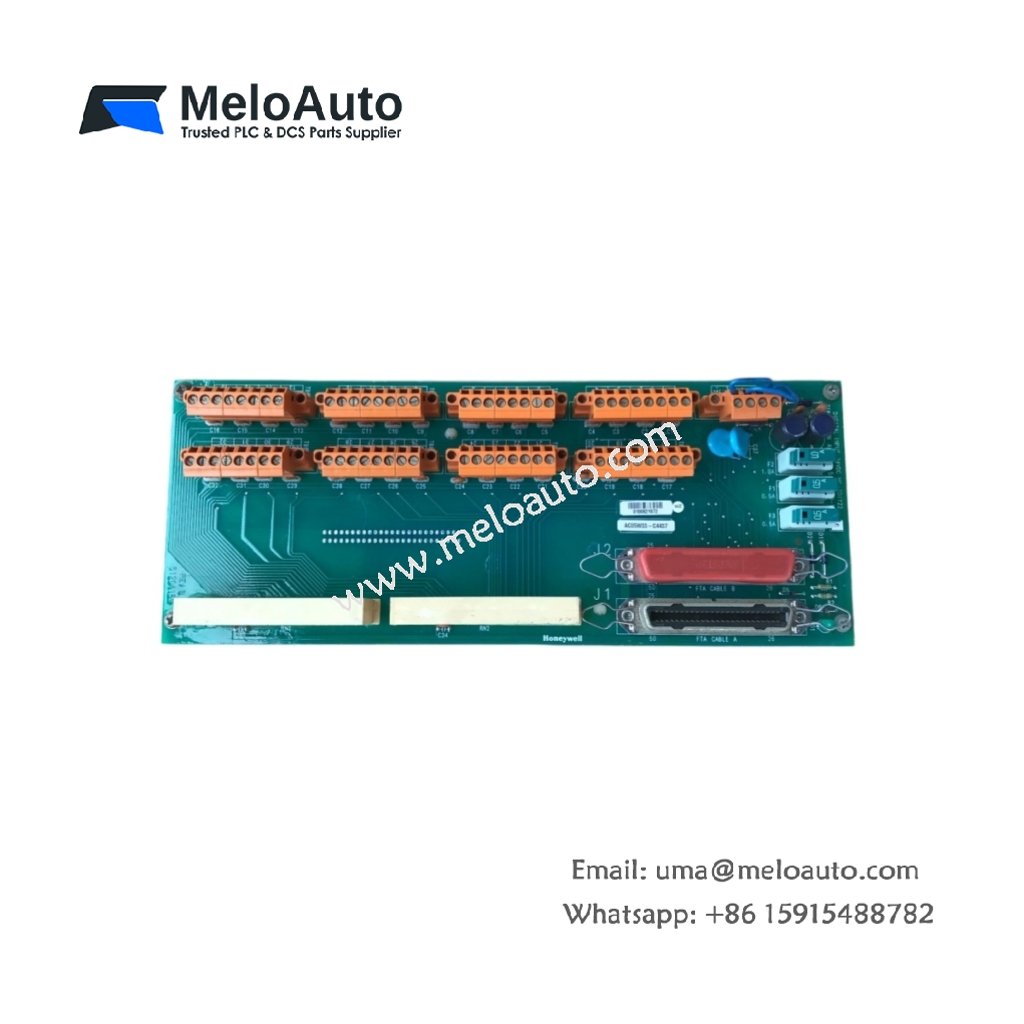

Honeywell 51304431-175 MC-TDIA22 Digital Input Module

This module captures discrete signals from field sensors and operator controls. It provides 16 independent input channels for monitoring digital status conditions. Engineers use this unit for pushbuttons, limit switches, and proximity sensors. The design offers selectable sink or source wiring configurations for maximum flexibility. Its compact form factor fits standard Honeywell Experion PKS and TDC 3000 racks.

Input Channel Architecture

The 51304431-175 MC-TDIA22 provides 16 optically isolated input channels arranged in two groups of eight. Each group shares a common return terminal for simplified field wiring. Every channel incorporates a built-in LED indicator for immediate visual status verification. The optocouplers provide 1500 VAC isolation between field circuits and the backplane logic. This isolation protects the processor from external surges and wiring errors.

Electrical Specifications and Input Ranges

Each channel accepts DC input voltages from 10 VDC to 30 VDC with a nominal 24 VDC rating. The input current measures approximately 7.5 mA at the nominal voltage level. Channel turn-on threshold sits at 8 VDC while turn-off occurs below 4 VDC. This hysteresis prevents contact bounce and noise-induced false triggering. Consequently, the module reliably interprets switch status in electrically harsh environments.

Response Speed and Filtering

The 51304431-175 MC-TDIA22 achieves a response time of 1 to 3 milliseconds for input detection. Users can select programmable input filters from 0.5 ms to 10 ms for noise rejection. The module includes built-in input delay for contact debouncing applications. These filtering options accommodate both fast and slow field devices. Furthermore, the module captures short-duration pulses for basic counting applications.

Physical Dimensions and Rack Mounting

The 51304431-175 MC-TDIA22 measures 12.7 cm in width, 25.4 cm in height, and 20.3 cm in depth. It weighs approximately 0.9 kg, which ensures secure seating in the rack assembly. A steel housing provides mechanical protection and electromagnetic shielding. The unit mounts directly into Honeywell Experion PKS or standard 19-inch racks. Its front panel places input terminals and status LEDs for convenient access.

Field Wiring and Connector Details

A 32-pin barrier-style terminal block handles all field termination points on the front face. This terminal block accepts wire gauges from 0.2 mm² to 2.5 mm² for flexible wiring. The module includes removable terminal blocks for straightforward installation and replacement. Each terminal block carries clear labeling for channel identification and wiring guidance. Moreover, the terminal block features a positive locking mechanism for vibration resistance.

Internal Components and Power Consumption

The printed circuit board contains 16 optocouplers, 16 resistors, and 4 transient suppression diodes. It draws 300 mA from the 5 VDC backplane under full operational load. The module also requires 50 mA from the 24 VDC field supply for input excitation. No energy storage devices appear on the board for this purely combinational circuit. The simple passive input design ensures high reliability and zero calibration requirements.

Status Indication and Diagnostic Functions

Each of the 16 input channels has a dedicated front-panel green LED indicator. The LEDs illuminate when the corresponding input voltage exceeds the turn-on threshold. A single red LED signals overall module health and backplane communication status. The module transmits real-time input data to the processor during each scan cycle. This immediate visual feedback enables rapid field troubleshooting without software tools.

Environmental Durability and Compliance

The 51304431-175 MC-TDIA22 operates reliably across temperatures from 0°C to 55°C. It withstands humidity levels up to 95% without condensation affecting circuit performance. The module complies with IEC 61000-4-4 for electrical fast transient immunity. Vibration tolerance meets IEC 60068-2-6 requirements for factory floor installations. This robust design suits chemical processing, power generation, and refinery automation applications.

Technical Data Sheet – Honeywell 51304431-175 MC-TDIA22
