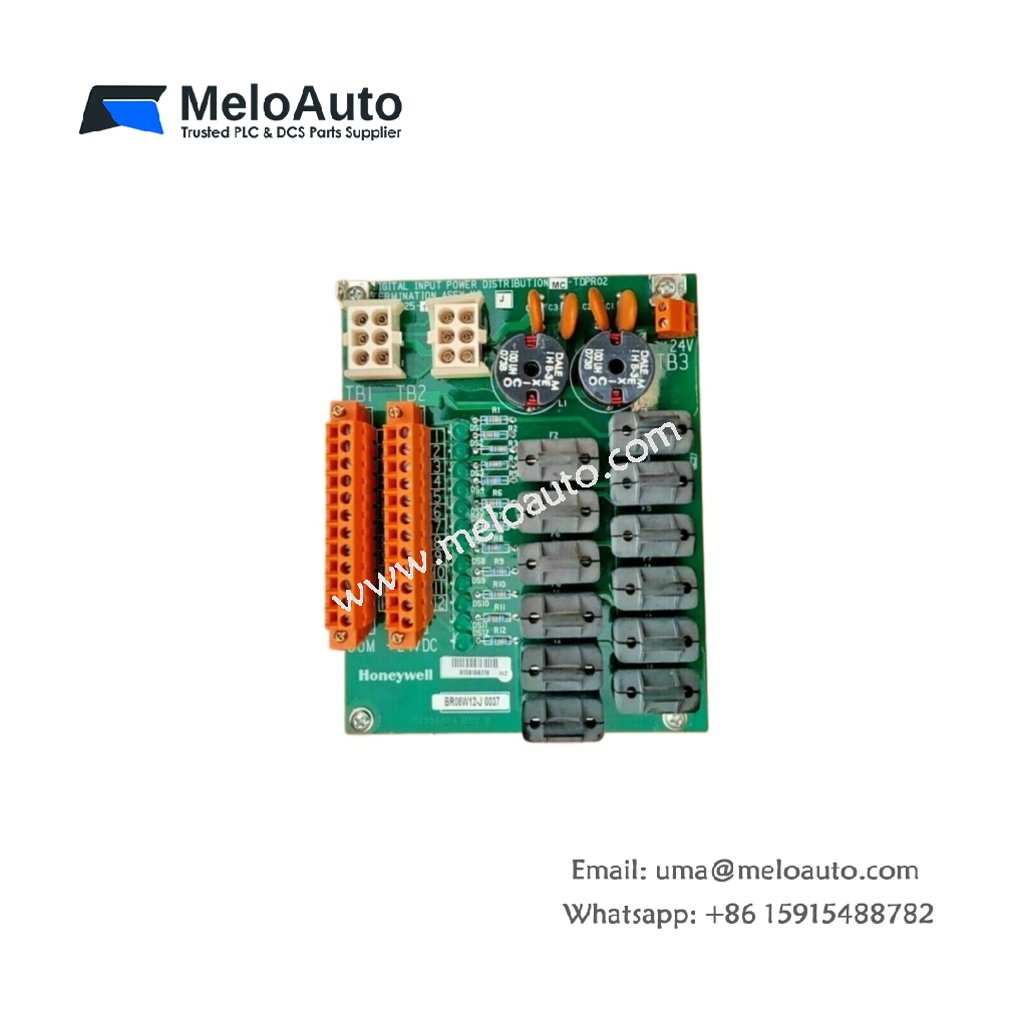

Honeywell 51304425-175 Digital Input Power Distribution Board

Product Overview

The Honeywell 51304425-175 provides dedicated power distribution for digital input field devices. This board manages voltage routing and current delivery across multiple input channels. It works alongside I/O modules to ensure stable power for sensors and switches. The unit integrates directly into Honeywell Series C cabinet assemblies.

Technical Specifications

Physical Dimensions and Mounting

This board measures 215 mm in width, 165 mm in depth, and 45 mm in height. The assembly weighs approximately 0.65 kg. It mounts vertically on a DIN rail or directly onto a backplate inside the control cabinet. The PCB layout includes clearly marked input and output terminal blocks for straightforward wiring. Status LEDs on the board indicate fuse health and supply voltage presence.

Electrical Interface and Connectivity

A single 24 VDC input terminal accepts power from the system power supply. The board then distributes this power to 16 individually fused output channels. Each fused output uses a screw-clamp terminal that accommodates solid or stranded wire. The barrier strip design prevents accidental shorts between adjacent terminations. This board also includes a common return bus for completing field device circuits.

Performance and Protection Features

Each of the 16 output channels incorporates a fast-acting fuse for overcurrent protection. These fuses clear quickly during a fault condition to prevent damage to downstream wiring. The board provides visual fuse status through integrated LED indicators. A blown fuse triggers the corresponding LED to illuminate, simplifying fault location. The power distribution design minimizes voltage drop across the board under full load conditions. The total energy dissipation stays below 10 W during normal operation.

Installation and Compatibility

You can install this distribution board in any Honeywell Series C or TDC 3000 cabinet. The mounting holes align with standard rail profiles for quick mechanical assembly. Wiring connections use color-coded terminals that match common industry conventions. Always verify the input power polarity before energizing the board. For redundant power applications, you can pair two boards with separate feeds.

Environmental Compliance and Durability

This board meets RoHS requirements for hazardous substance restrictions. It also complies with UL 508 and CSA C22.2 industrial control equipment standards. The conformal coating on the PCB protects against moisture and dust ingress. This coating extends the service life in harsh industrial environments.
