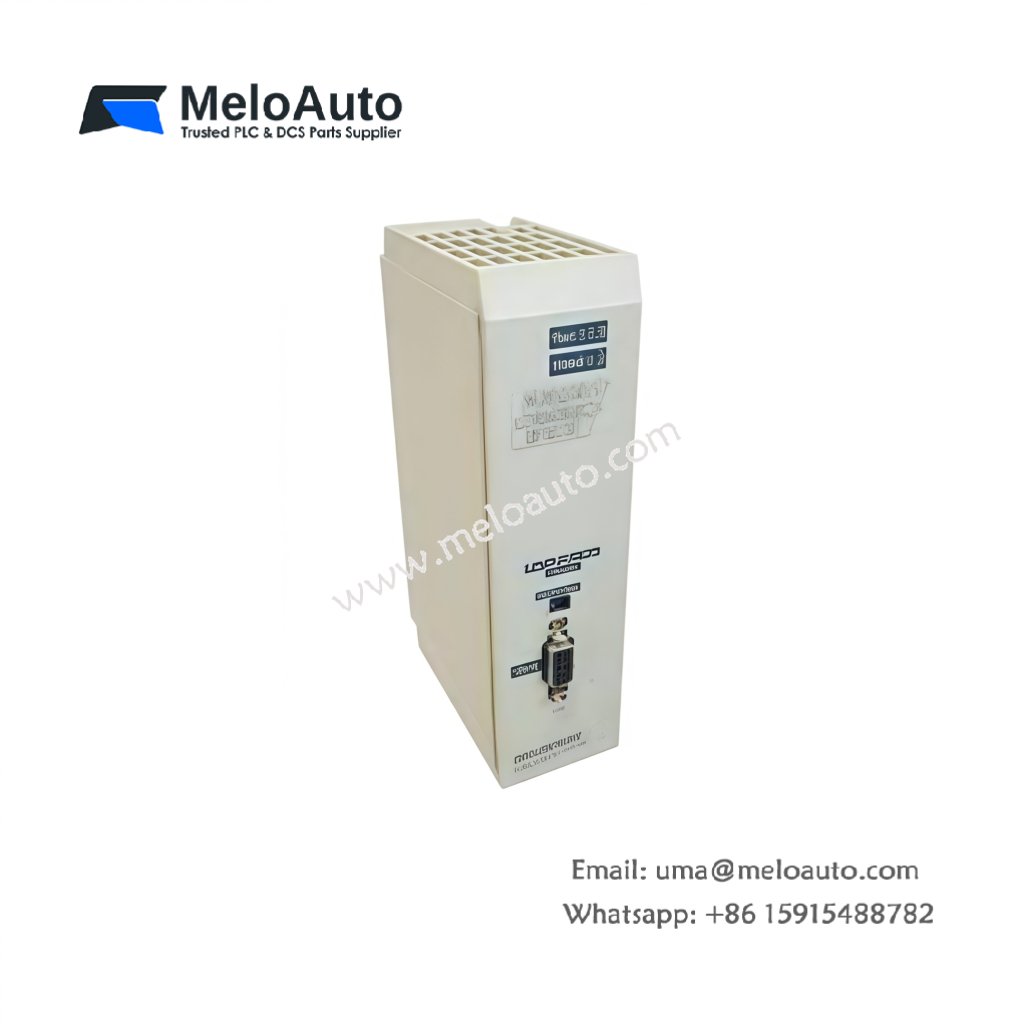

ABB 200-CIPB/DP – Communication Interface Module for Fieldbus Networks

The ABB 200-CIPB/DP bridges PROFIBUS DP networks to ABB drive systems seamlessly. This module measures 125 mm in width and 90 mm in height. It has a depth of 35 mm, so it fits compact DIN rail enclosures. The unit weighs 0.28 kg, making installation quick and effortless.

Internal Architecture and Protocol Handling

This communication module contains two separate circuit boards inside its plastic housing. One board manages PROFIBUS DP protocol processing, while the other handles drive interface logic. The ABB 200-CIPB/DP includes a dedicated 16-bit microcontroller for message filtering. A 32 kB buffer stores incoming and outgoing telegrams temporarily. The module stores 47 µF of capacitance for power supply filtering only.

Network Interface and Connection Details

You will find one 9-pin D-sub connector on the front panel for PROFIBUS DP. This connector uses standard pin assignment for easy network integration. The ABB 200-CIPB/DP supports baud rates from 9.6 kbit/s up to 12 Mbit/s. Auto-baud detection selects the correct speed without manual configuration. The module also includes two LEDs for network status and diagnostic indication.

Drive Interface and Power Requirements

A 10-pin ribbon cable connects this module to the host drive unit directly. The ABB 200-CIPB/DP draws 80 mA at 24V DC during normal operation. Therefore, total power consumption reaches 1.92 watts for the entire module. The unit receives power through the ribbon cable from the host drive. It contains no battery, so maintenance stays minimal over its lifetime.

Configuration and Environmental Specifications

You can configure this module using standard PROFIBUS GSD files easily. The ABB 200-CIPB/DP operates reliably from 0°C to 55°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The module supports up to 16 cyclic data words in each direction. For diagnostics, it provides 8 bytes of additional status information.

Below is a complete summary of its technical specifications.

The ABB 200-CIPB/DP integrates ABB drives into Siemens PROFIBUS networks directly. You do not need any external gateways or protocol converters. This module also supports acyclic parameter access for drive configuration. Consequently, you can monitor and control drives from any PROFIBUS master device.
