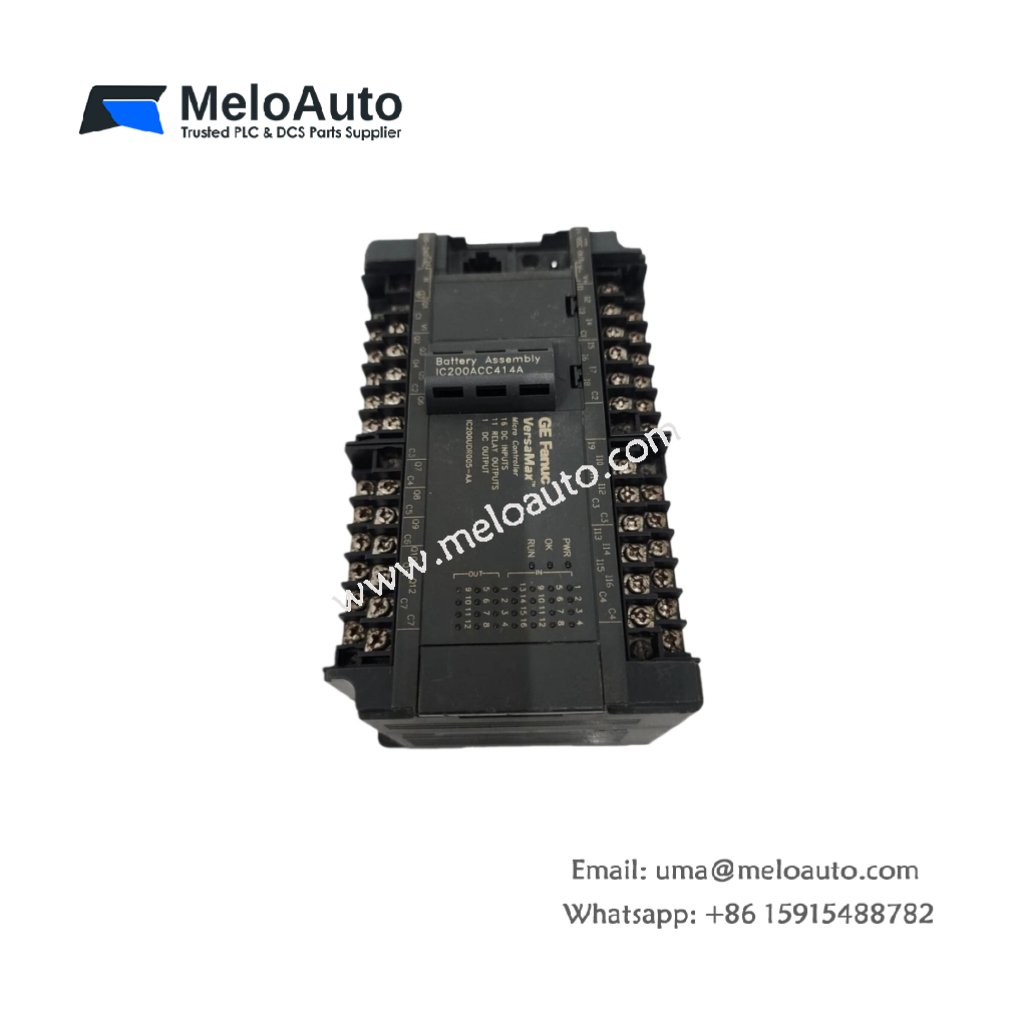

GE Fanuc IC200UDR005-AA VersaMax PLC Module with 28 I/O Points

The IC200UDR005-AA is a powerful programmable logic controller (PLC) from the VersaMax Micro series by GE Fanuc Emerson. This module is designed for flexible and scalable automation tasks, offering a robust configuration with both digital and analog I/O points.

Key Features

• 28 I/O Points: The module offers a combination of sixteen 24VDC inputs, eleven relay outputs, and one 24VDC output, making it ideal for various automation applications.
• Expandable I/O: It supports up to four discrete I/O expansion units and four analog I/O expansion units, offering scalability to meet growing automation demands.
• Ample Logic Memory: With 9K words of logic memory for user programs and 2K words for register storage, the module can handle complex tasks efficiently.
• Adjustable Analog Control: It includes two integrated analog potentiometers for precise data adjustments in real-time.
• Multiple Communication Ports: The module features two communication ports: an RJ-45/RS-232 port for simple communication and a DB-15/RS-485 port for extended network connections.

Technical Specifications

Overview

The IC200UDR005-AA is a versatile and compact PLC module that integrates seamlessly into industrial automation systems. With 28 I/O points, it provides both digital and analog capabilities for a wide range of control tasks. This flexibility makes it suitable for various types of equipment, including sensors, actuators, and process control systems.

The module’s 16 inputs operate at 24VDC, providing reliable data acquisition, while its 11 relay outputs and 1 24VDC output deliver precise control for connected devices. The expandability of the IC200UDR005 is another significant advantage, as users can extend I/O capabilities by adding up to four discrete I/O units and four analog I/O units, enabling systems to handle up to 140 physical I/O points.

For more complex automation tasks, the IC200UDR005 offers 9K words of logic memory for storing user programs, ensuring ample space for intricate control logic. The additional 2K words for register storage provide further capacity for data handling. Users can also adjust analog inputs and outputs in real-time using the two built-in analog potentiometers, ensuring precise control over processes.

Connectivity and Communication

The IC200UDR005-AA features two communication ports for connectivity:

• RJ-45/RS-232 port: Ideal for simpler communication setups with minimal configuration.
• DB-15/RS-485 port: Suitable for more complex networking needs, enabling communication over longer distances and with more devices.

These communication capabilities make the IC200UDR005-AA compatible with a wide range of industrial automation networks and devices, supporting effective data exchange in large-scale systems.

Applications

The IC200UDR005-AA is ideal for use in:

• Process control systems requiring both discrete and analog I/O.
• Automation systems that demand scalability with additional I/O expansion.
• Industrial machines and equipment where flexible control is essential.
• Data logging and process monitoring applications requiring precise adjustments via analog control.
