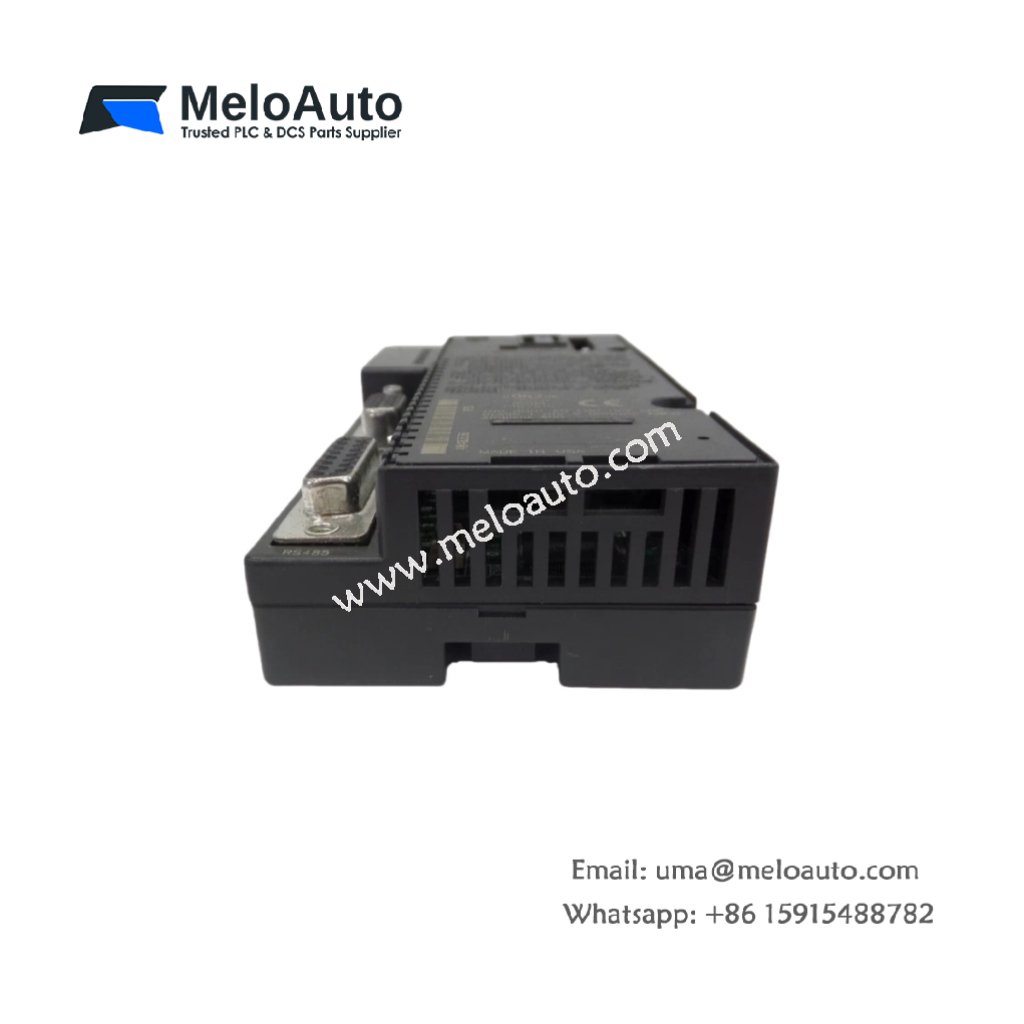

GE Fanuc IC200CPU001 | Configurable CPU with 2048 I/O Points

The IC200CPU001 is a powerful Central Processing Unit (CPU) from the VersaMax series by Emerson Automation, previously manufactured by GE Intelligent Platforms. This compact CPU module is ideal for industrial automation, supporting high-speed processing, configurable memory, and robust communication interfaces.

Key Features

Compact and Versatile: The IC200CPU001 is designed for DIN rail or panel mounting, offering flexibility in various system setups.
High-Speed Execution: It executes Boolean logic at a speed of 1.8 ms per 1K logic to ensure fast and reliable performance in automation tasks.
Flexible Memory Allocation: With 34 KB of configurable memory, the CPU can handle user programs, registers, and both analog inputs and outputs efficiently.
Extensive I/O Support: It supports up to 2048 discrete inputs and 2048 discrete outputs, making it suitable for large-scale industrial control systems.
Built-in Communication: The IC200CPU001 features two serial ports (RS232 and RS485), supporting industrial protocols like Modbus RTU Slave, SNP Slave, and Serial I/O.

Technical Specifications

Specification	Value
Manufacturer	Emerson Automation (GE Fanuc)
Product Type	CPU module
Product Line	VersaMax
Part Number	IC200CPU001
Weight	0.25 lbs (0.11 kg)
Description	Configurable Central Processing Unit
Serial Ports	2
User Memory	34 KB
Supported Programming	Ladder Diagram, Instruction List
Discrete Internal Bits	1024 points
Typical Scan Rate	1.8 ms per 1K logic (Boolean)
Discrete Inputs	2048 points
Discrete Outputs	2048 points
Discrete Temporary Bits	256 points
Global Discrete Bits	1280 points
Floating Point Math	Supported
Real-Time Clock	Battery-backed, 100 ppm accuracy
Communication Ports	1 x RS232, 1 x RS485
Supported Protocols	SNP Slave, RTU Slave, Serial I/O
Memory Storage Type	RAM and Flash
Override Functions	Supported
Backplane Current Consumption	140 mA @ 5V, 100 mA @ 3.3V

Overview

The IC200CPU001 is a versatile and configurable CPU module designed for industrial automation systems. It supports a wide range of I/O configurations, including up to 2048 discrete inputs and 2048 discrete outputs. This makes it a perfect choice for applications requiring high input/output processing.

The CPU features 34 KB of configurable memory, which can be used for storing user programs, registers, and analog data. With 1024 discrete internal bits, 256 temporary bits, and 1280 global discrete bits, the IC200CPU001 offers extensive internal memory for efficient logic execution.

Equipped with two serial communication ports (RS232 and RS485), the CPU ensures seamless integration with other devices and systems. It supports key industrial protocols such as Modbus RTU Slave, SNP Slave, and Serial I/O. These capabilities make it suitable for distributed I/O systems and data exchange between various control systems.

The IC200CPU001 also supports floating-point math, enabling more complex calculations and precise control. Additionally, it features a battery-backed Real-Time Clock (RTC) with an impressive accuracy of 100 ppm or ±9 seconds per day across the full temperature range, making it ideal for time-sensitive applications.

Applications

The IC200CPU001 is commonly used in:

Large-scale industrial automation systems
Process control systems requiring extensive I/O capabilities
Data exchange applications using Modbus RTU and other communication protocols
Time-sensitive control requiring a reliable Real-Time Clock (RTC)

Additional Features

User-configurable serial ports: Configure the serial ports to switch automatically between RTU Slave and SNP Slave modes.
Enhanced PID Function Block: The module comes with an advanced PID control block for precise control applications.
LED Indicators: The front panel includes LED indicators that provide real-time system status and event notifications.
Override Functions: Supports manual override operations for critical processes, ensuring flexibility in control.
