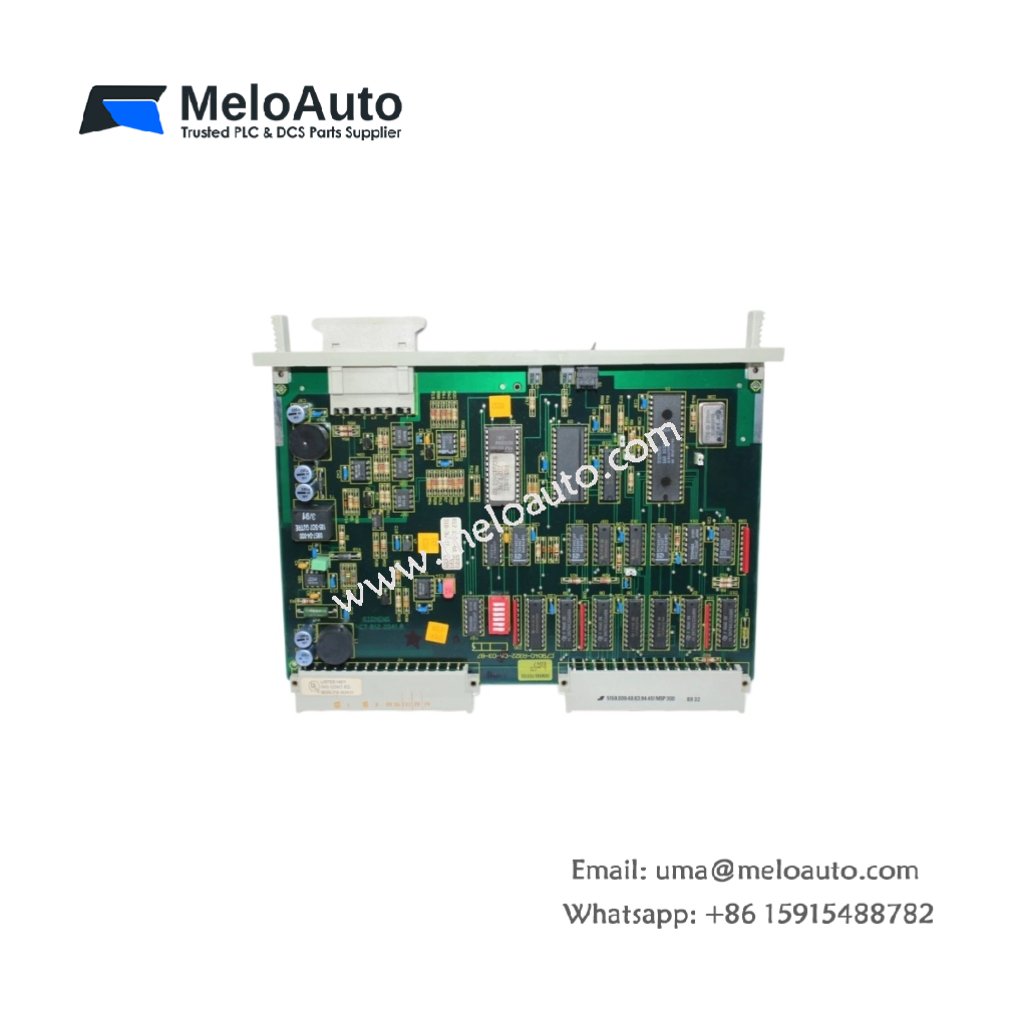

Siemens 6ES5318-3UA11 Interface Module

Technical Overview

The Siemens 6ES5318-3UA11 (IM318A) is a central controller interface module from the SIMATIC S5 series . This unit connects a central controller to expansion units (EUs) like the EU 183U, EU 185U, and EU 186U, thereby extending the system’s I/O capacity . It also supports connections to ET 100U distributed I/O and ICM 560 individual control modules . The Siemens 6ES5318-3UA11 acts as a data buffer between the serial interface and the backplane bus, effectively enabling parallel data exchange to occur within one cycle . This module requires an adapter casing (Order No. 6ES5 491-0L .11) for use in block-type expansion units .

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5318-3UA11
Product Type	Central Controller Interface Module (IM318A)
System Compatibility	SIMATIC S5-115U, S5-135U, S5-155U
Function	Expansion unit interface (central to expansion rack)
Number of Network Nodes	Up to 31 additional nodes
Supported Devices	EU 183U, EU 185U, EU 186U, ET 100U, ICM 560
Configuration	Coding switch (S2) for baud rate and I/O area
Indicators	Red FAULT LED, green ON LED
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Weight	Approx. 0.3 kg
Mounting	Expansion unit or block-type unit (with adapter)
Protection Rating	IP20
Power Supply	24V DC (external), 5V DC (backplane logic)

Key Features

System Expansion Capability – The Siemens 6ES5318-3UA11 allows up to three additional racks (with S5-135U/155U), enabling flexible system scaling .

Transparent Data Exchange – The module supports data mapping directly at the backplane bus level, eliminating the protocol conversion delays that are common with modern fieldbuses .

Electrical Isolation – The module provides 500V AC isolation between the central rack and the field ground, protecting the controller from ground potential differences .

Diagnostic LEDs – Red FAULT and green ON LEDs simplify troubleshooting by providing immediate visual status feedback .

Efficient Data Buffering – The module buffers input and output data independently, allowing asynchronous and time-independent data exchange cycles .

Applications

The Siemens 6ES5318-3UA11 suits expansion applications for SIMATIC S5 systems in manufacturing, process control, and material handling . It is ideal for extending the I/O capacity of legacy S5 installations in industries such as power generation, steel production, and chemical processing .
