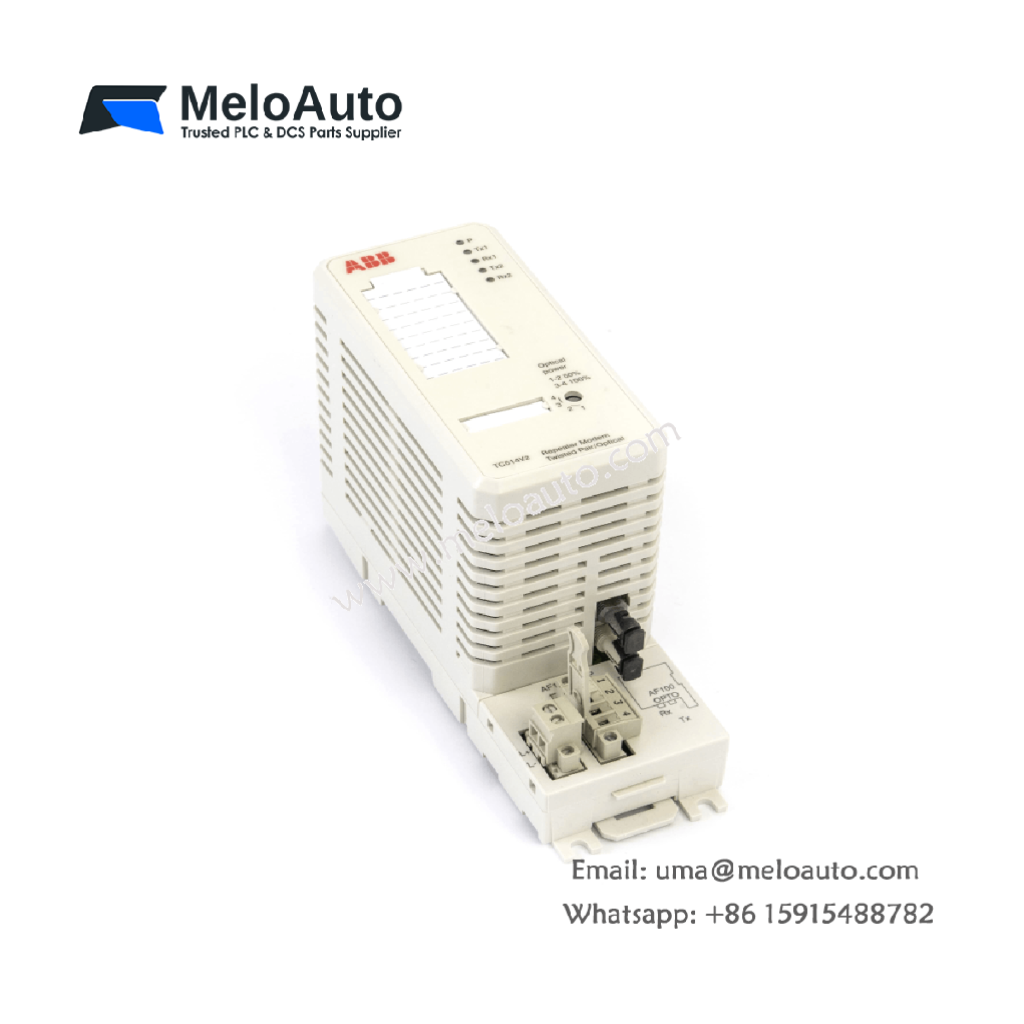

ABB 3BSE013281R1 TC514V2 AF100 Twisted Pair to Opto Repeater

General Description

The ABB TC514V2 is an AF100 twisted pair to opto repeater module used for communication in industrial automation networks. It acts as a media converter, bridging twisted pair lines to optical fiber, enabling reliable data transmission across extended distances in harsh industrial environments.

Product Details

• Product ID: 3BSE013281R1

• ABB Type Designation: TC514V2

• Catalog Description: TC514V2 AF100 Twisted Pair/Opto Modem

• Long Description: TC514V2 AF100 Twisted Pair to Opto Repeater

• Product Type: Communication Module

Technical Specifications

• Function: Advant Fieldbus 100 twisted pair to optical fiber repeater

• Power Supply: 24 V DC

• Rated Isolation: 50 V

Compliance & Certifications

• RoHS Status: Compliant with EU Directive 2011/65/EU (exempt under Article 2(4)(c), (e), (f), (j))

• WEEE Category: 5 – Small Equipment (No External Dimension Over 50 cm)

• SCIP Number: 8f4443f7-b972-444b-a88d-1f08fa1104e8 (Sweden)

Dimensions & Weight

• Length / Depth: 168 mm

• Height: 122 mm

• Width: 58 mm

• Net Weight: 0.34 kg

Ordering & Classification

• HS Code: 853890

• Customs Tariff Number: 85389091

Application Compatibility

The TC514V2 module is compatible with a wide range of ABB systems including:

• Advant Fieldbus 100 communication modules

• Advant Controller 160, 410, 450, 450RMC

• S800 I/O systems (Versions 4.0 to 5.1)

• Advant OPC Server, Advant Station 100 Engineering

• MOD 300 SW systems and controllers
