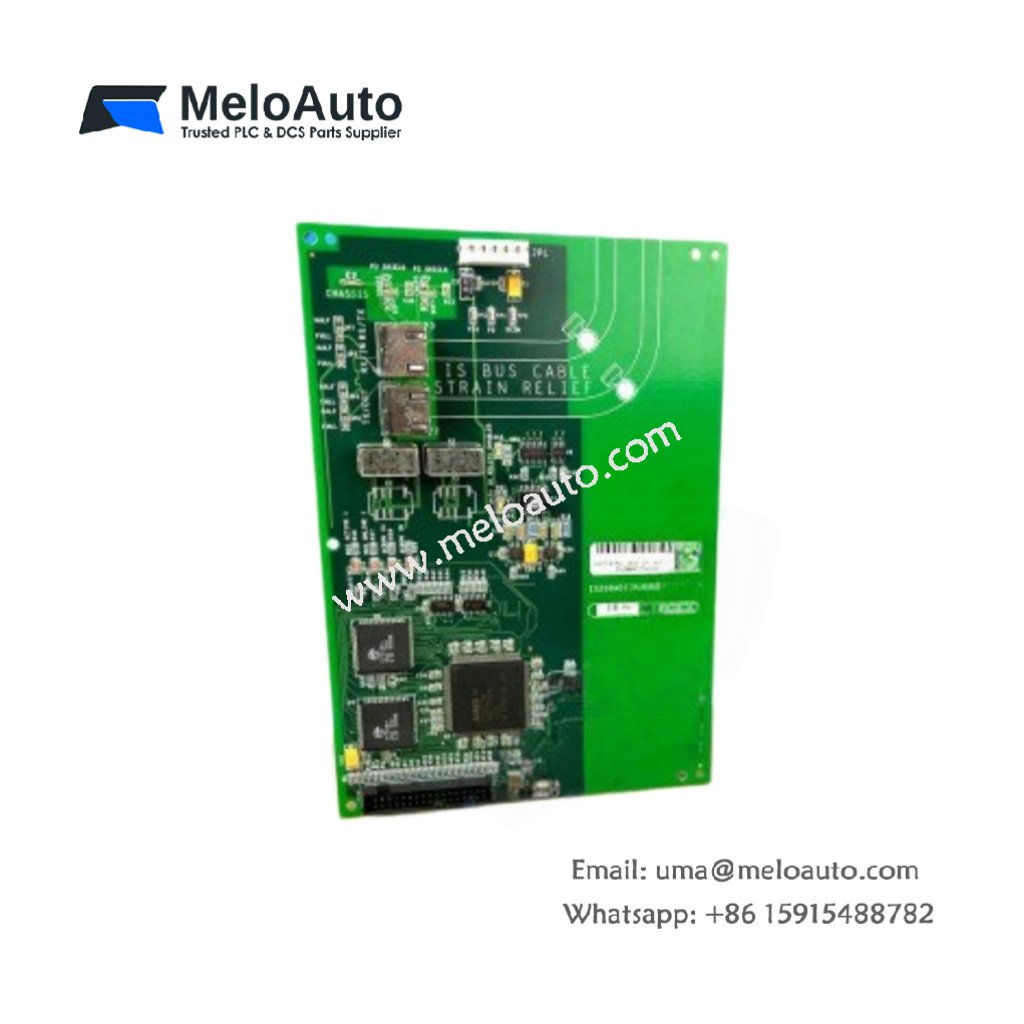

GE DS200TCQCG1A DS200TCQCG1AHE RST Overflow Board

The GE DS200TCQCG1A DS200TCQCG1AHE belongs to the Mark V series. General Electric designed this board as an RST overflow unit. This component monitors signal levels and triggers reset events. It also prevents data overflow in critical control loops.

Technical Specifications

The table below lists all key parameters for the GE DS200TCQCG1A DS200TCQCG1AHE.

RST Overflow Detection Features

The GE DS200TCQCG1A DS200TCQCG1AHE uses a rugged four-layer PCB. Over 125 resistors, comparators, and logic gates detect overflow conditions. A single 64-pin DIN connector links this board to the backplane. Consequently, overflow alerts trigger immediate reset actions within 5 microseconds. Three onboard LEDs show overflow, reset, and normal status. Moreover, tantalum capacitors provide stable energy for comparator reference voltages.

Reset and Monitoring Capabilities

You get eight programmable comparator circuits on this RST overflow board. Each circuit monitors a separate analog input channel. The GE DS200TCQCG1A DS200TCQCG1AHE provides four dedicated reset output signals. Therefore, this board can reset multiple subsystems simultaneously. Always handle this RST overflow board by its edges. This precaution prevents electrostatic discharge damage to sensitive comparator chips.

Power and Energy Storage

You must install this board inside a protected Mark V cabinet. The backplane supplies 5 VDC to the GE DS200TCQCG1A DS200TCQCG1AHE. Ceramic capacitors filter high-frequency noise on power lines. Tantalum capacitors store energy for stable threshold references. As a result, the board delivers accurate and reliable overflow detection.

Mechanical Layout

This RST overflow board measures exactly 25.4 cm in width. Its height reaches 17.8 cm. The total weight equals just 0.45 kg. As a result, this board saves valuable rack space. The lightweight design also reduces stress on the backplane connector. You get reliable reset control from this industrial-grade board.

Installation Context

This board works alongside other Mark V I/O and processor cards. Its compact size allows easy placement near analog input modules. The robust design handles continuous industrial monitoring. Choose the GE DS200TCQCG1A DS200TCQCG1AHE for your turbine reset and overflow needs.
