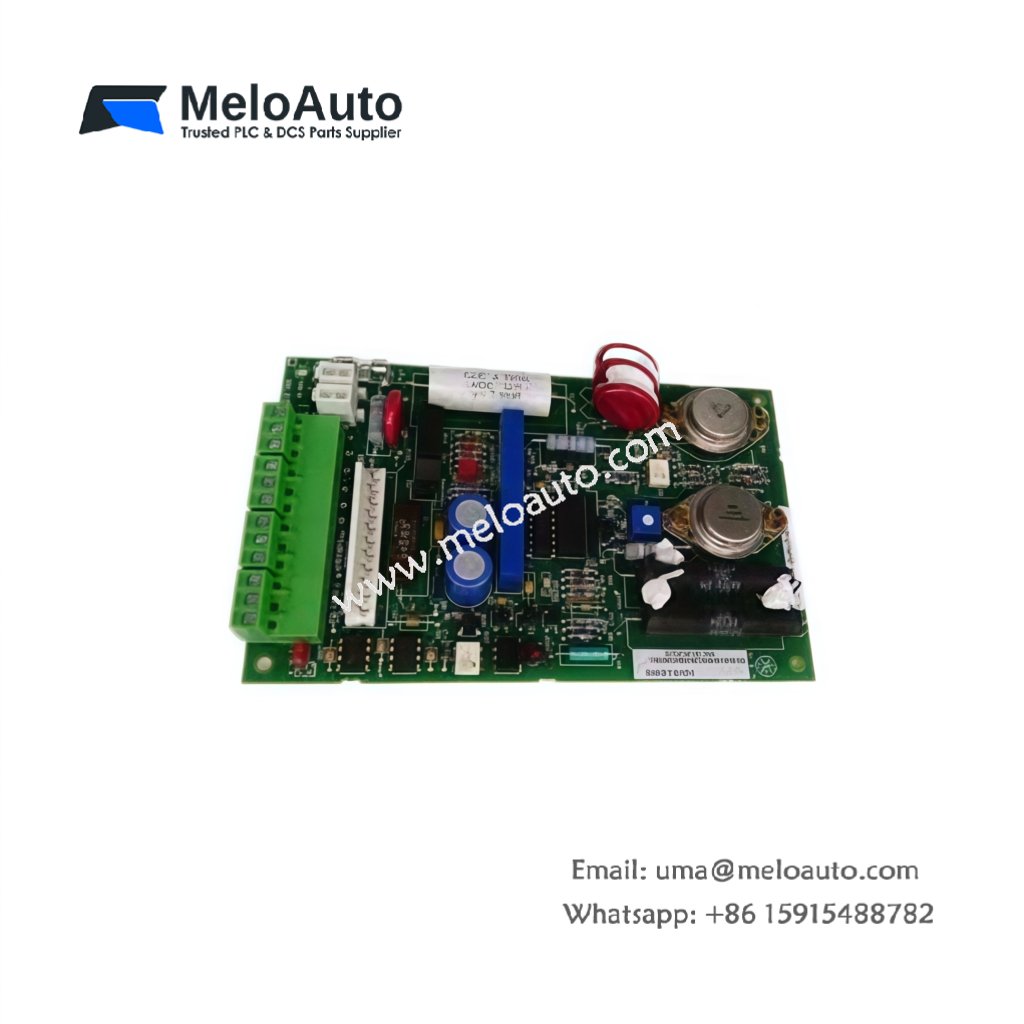

GE DS200FCGDH1B DS200FCGDH1BBA | Field Control Board

The GE DS200FCGDH1B DS200FCGDH1BBA belongs to the Mark V series. General Electric designed this board as a field control unit. This component manages gate drive signals for power semiconductors. It also monitors feedback from field devices.

Technical Specifications

The table below lists all key parameters for the GE DS200FCGDH1B DS200FCGDH1BBA.

Parameter	Specification
Manufacturer	General Electric (GE)
Full Model	DS200FCGDH1B / DS200FCGDH1BBA
Product Type	Field Control / Gate Driver Board
Series	Mark V
Width	10.0 inches (25.4 cm)
Height	7.0 inches (17.8 cm)
Weight	1.0 lb (0.45 kg)
Component Count	Over 140 surface-mount devices
Main Interface	One 64-pin male DIN connector
Gate Drive Outputs	6 channels for IGBT/SCR
Feedback Inputs	6 isolated voltage monitors
Propagation Delay	Less than 2 microseconds
Energy Storage	Ceramic and film capacitors
Status Indicators	Three LEDs (power, gate, fault)

Gate Drive Features

The GE DS200FCGDH1B DS200FCGDH1BBA uses a rugged four-layer PCB. Over 140 resistors, capacitors, and driver ICs process gate signals. A single 64-pin DIN connector links this board to the backplane. Consequently, gate commands reach power devices within 2 microseconds. Three onboard LEDs show power, gate activity, and fault status. Moreover, film capacitors provide stable energy for gate drive circuits.

Output and Feedback Capabilities

You get six gate drive output channels on this field control board. These channels drive IGBT or SCR gates directly. The GE DS200FCGDH1B DS200FCGDH1BBA also provides six isolated voltage feedback inputs. These inputs monitor device status for protection logic. Therefore, this board ensures reliable switching for power converters.

Power and Energy Storage

You must install this board inside a protected Mark V cabinet. The backplane supplies 5 VDC and 24 VDC to the GE DS200FCGDH1B DS200FCGDH1BBA. Ceramic capacitors filter high-frequency noise on control lines. Film capacitors store energy for gate drive pulses. As a result, the board delivers consistent gate signals under all load conditions.

Mechanical Layout

This field control board measures exactly 25.4 cm in width. Its height reaches 17.8 cm. The total weight equals just 0.45 kg. As a result, this board saves valuable rack space. The lightweight design also reduces stress on the backplane connector. Always handle this board by its edges. This precaution prevents electrostatic discharge damage.

Installation Context

This board works alongside other Mark V power supply and I/O cards. Its compact size allows easy placement near power semiconductors. The robust design handles continuous industrial switching. Choose the GE DS200FCGDH1B DS200FCGDH1BBA for your field control and gate drive needs.
