The GE A20B-8001-0124/03B provides advanced I/O control for GE Fanuc CNC systems. You can install this board into the main CNC rack of Series 15 or 16 controllers. It interfaces with servo drives and machine peripherals reliably. This board suits machining centers, lathes, and robotic applications.
Technical Specifications and Hardware Layout

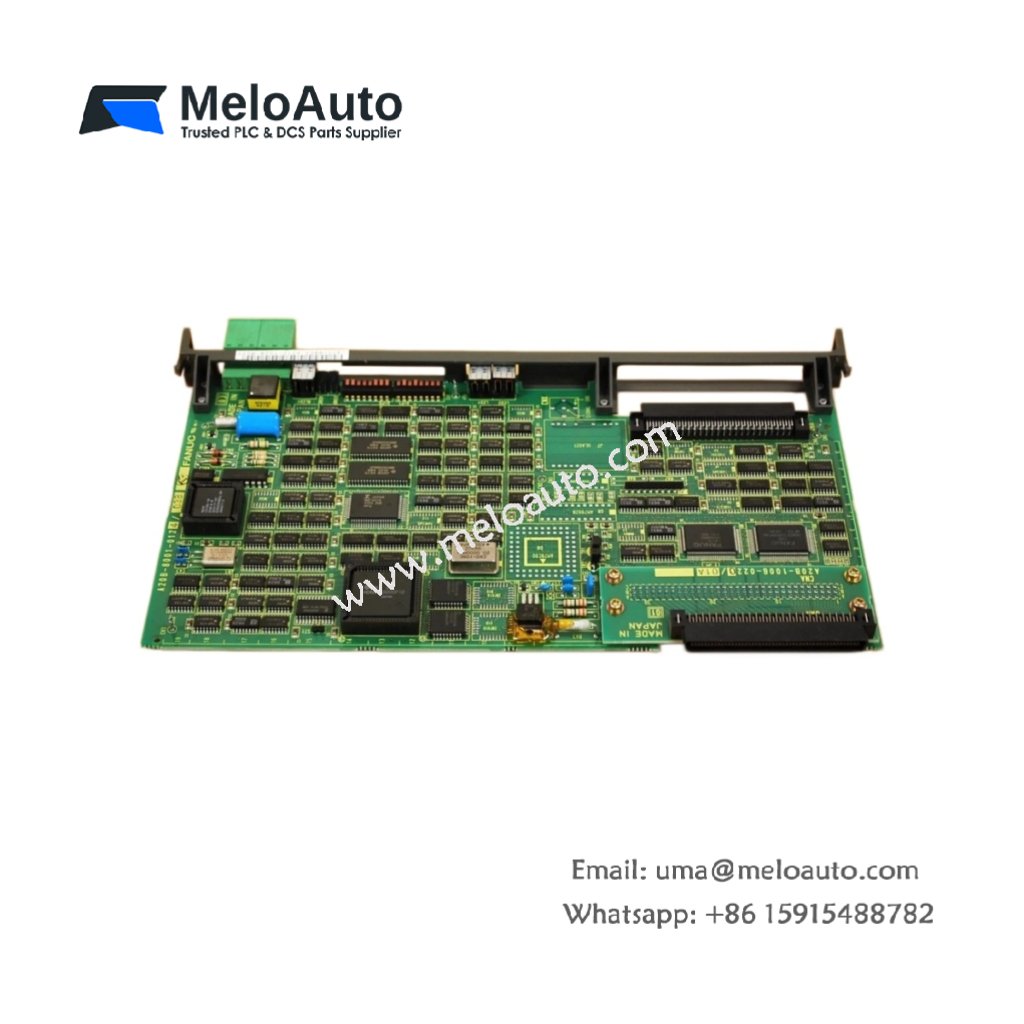

This PC ABRIO board measures 260 mm in height. Its width reaches 210 mm, and the depth equals 35 mm. The GE A20B-8001-0124/03B weighs approximately 0.62 kilograms. A single multilayer PCB holds all processing and interface circuits. The board contains no energy storage capacitors or batteries. Three 50-pin ribbon connectors provide I/O signals to peripheral devices. Two 34-pin headers handle encoder feedback inputs from servo motors. Eight test points allow signal monitoring with oscilloscope probes.
| Parameter | Specification |
|---|---|
| Model | GE A20B-8001-0124/03B |
| Category | PC ABRIO Board |
| Dimensions (H x W x D) | 260 mm x 210 mm x 35 mm |
| Weight | 0.62 kg |
| PCB Layers | 6 |
| Energy Storage | None |
| I/O Connectors | 3 x 50-pin ribbon |
| Encoder Connectors | 2 x 34-pin headers |
| Test Points | 8 |
| Temperature Range | 0°C to 55°C |
Processing Capabilities and Compatibility
The GE A20B-8001-0124/03B manages high-speed I/O signals for real-time control. It communicates with the main CNC processor through a dedicated bus. This board handles up to 64 discrete I/O points and 8 analog channels. Consequently, it supports complex machine tool applications with many peripherals. The board generates PWM signals for spindle and axis control. A built-in watchdog circuit disables outputs during processor faults. The board stores configuration parameters in onboard EEPROM memory.
Installation and Diagnostic Features
You must insert this board firmly into a dedicated CNC rack slot. Transitioning to wiring, route I/O cables away from motor power cables. The board includes LED indicators for power and fault status. For troubleshooting, use the eight test points with a multimeter. Always power off the system before removing or inserting the board. The operating temperature range spans from 0°C to 55°C reliably.
