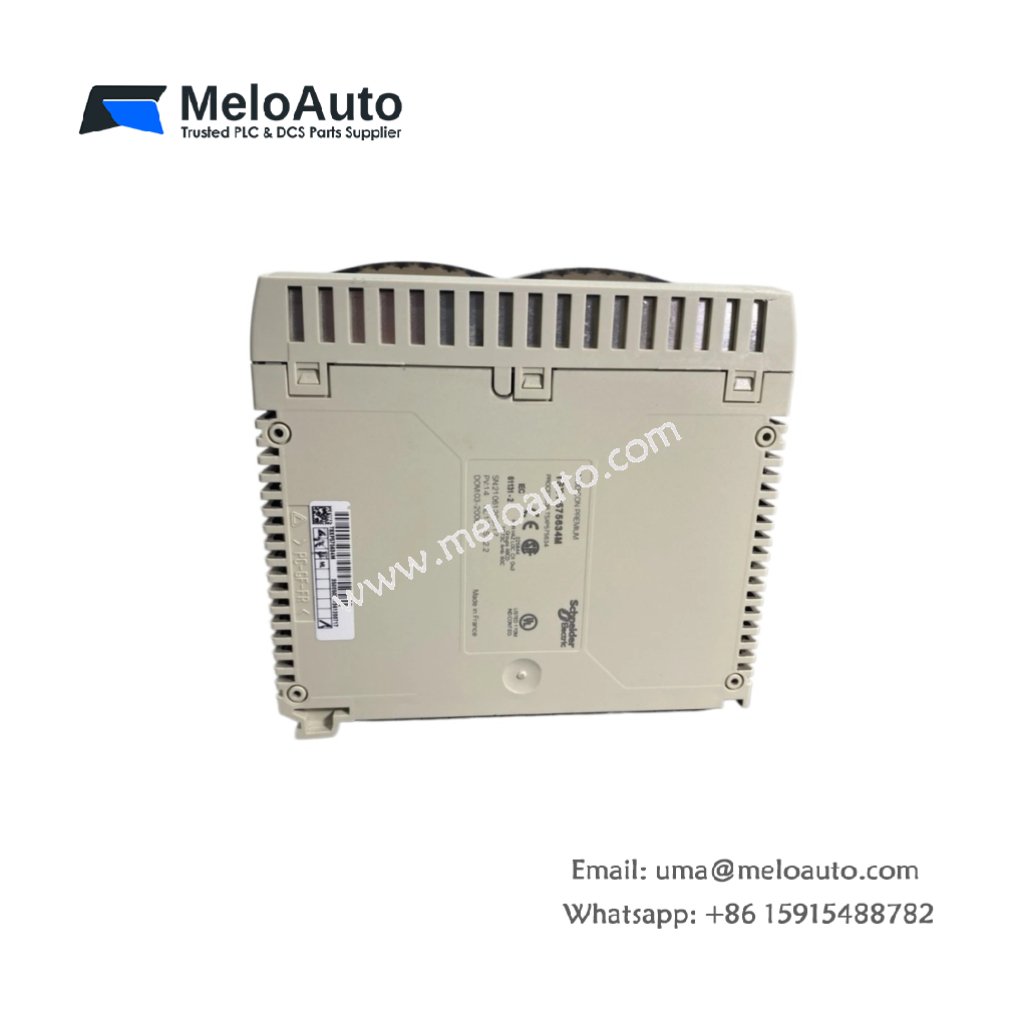

Schneider TSXP575634 Unity Processor

Core Processing Capabilities

The Schneider TSXP575634 executes Unity Pro applications for large automation systems. This Unity processor manages complex logic, process control, and communication tasks. It handles up to 16,384 discrete I/O points and 2,048 analog channels. Consequently, the module supports demanding applications like assembly lines and chemical processing.

Physical Dimensions and Module Construction

This Unity processor measures 130 mm in total height. Its width reaches 56 mm for a dual-slot Premium form factor. The module depth stands at 110 mm including the front panel. You will find 1,128 discrete components on this multi-layer PCB. These include a 32-bit CPU, memory ICs, and communication controllers. The Schneider TSXP575634 weighs approximately 510 grams for secure rack mounting.

Processor and Memory Configuration

The Schneider TSXP575634 houses a 32-bit PowerPC processor running at 266 MHz. This CPU executes Unity Pro applications with exceptional speed and precision. The processor contains 4 MB of flash memory for firmware and program storage. It also includes 4 MB of SRAM for runtime data and variables. A replaceable lithium battery preserves the SRAM contents during power outages. This battery provides a typical retention period of one year.

Memory Capacity and Application Support

This Unity processor stores up to 4 MB of user application code. It handles 16,384 discrete input and output points simultaneously. The module supports 2,048 analog I/O channels for process applications. It also manages 8,192 internal data storage registers. The processor handles up to 4,096 timers and 4,096 counters. Advanced users can store up to 16 MB of additional data on PCMCIA memory cards.

Communication Ports and Interfaces

The Schneider TSXP575634 offers two built-in Modbus ports for serial networking. Port 1 provides RS-232 for programming and local device connections. Port 2 provides RS-485 for multi-drop Modbus networks. The module also includes one USB port for fast program uploads. A dedicated PCMCIA slot accepts memory cards for program backup.

I/O Capacity and Expansion Support

This Unity processor supports up to 16 local I/O modules in the main rack. It also manages up to 16 remote drops via Modbus Plus or Ethernet. The module handles a maximum of 16,384 digital I/O points system-wide. It also manages up to 2,048 analog I/O channels for process control. The processor supports hot-standby redundancy for critical applications.

Real-Time Clock and Event Management

The Schneider TSXP575634 includes a battery-backed real-time clock. This clock enables time-stamped alarm and event logging functions. The processor supports up to 4,096 event messages in its history buffer. It also manages scheduled tasks with millisecond resolution. The clock accuracy reaches ±2 seconds per day at 25°C ambient.

Status Indicators and Diagnostic Features

This Unity processor provides 10 LED status indicators on the front panel. A green run LED illuminates when the processor executes the user program. A yellow stop LED shows when the module remains in configuration mode. Red LEDs indicate memory, communication, and system fault conditions. The module also includes a hardware watchdog timer for fail-safe supervision.

Energy Storage and Power Requirements

The Schneider TSXP575634 draws 600 mA from a 5 V DC logic supply. It also requires 8 mA from a 24 V DC field supply for status circuits. The board incorporates eight 100 µF tantalum capacitors for power decoupling. Total stored energy reaches approximately 0.07 joules at nominal voltage. The module dissipates 3.2 W of heat during normal operation.

Parameter	Specification
Model	TSXP575634
Brand	Schneider Electric
Category	Unity Processor
Height x Width x Depth	130 x 56 x 110 mm
Weight	510 grams
Component Count	1,128
Processor type	32-bit PowerPC at 266 MHz
Flash memory	4 MB
SRAM with battery	4 MB (1-year retention)
User program storage	4 MB maximum
Discrete I/O capacity	16,384 points
Analog I/O capacity	2,048 channels
Internal registers	8,192
Timer/counter capacity	4,096 each
PCMCIA memory support	16 MB maximum
Modbus RS-232 port	1 (programming)
Modbus RS-485 port	1 (multi-drop)
USB port	1 (program upload)
PCMCIA slot	1 (memory cards)
Local I/O modules	16 maximum
Remote I/O drops	16 maximum
Hot-standby redundancy	Yes (supported)
Real-time clock	Yes (battery-backed)
Event history buffer	4,096 messages
Clock accuracy	±2 sec/day at 25°C
Status LEDs	10 (run, stop, faults)
Watchdog timer	Yes (hardware)
Logic supply	600 mA at 5 V DC
Field supply	8 mA at 24 V DC
Decoupling capacitors	8 x 100 µF tantalum
Total stored energy	0.07 Joules
Power dissipation	3.2 W
Operating temperature	0°C to +60°C

Installation and Programming Notes

You must install this processor in a Modicon Premium TSX rack. Always replace the lithium battery during scheduled maintenance every 10 months. Then, write your application using Schneider EcoStruxure Control Expert software. The processor requires a USB cable for initial program download. Regular battery replacement prevents data loss during unexpected power outages.
