Precise Motion Control for SIMATIC S5 Automation Systems

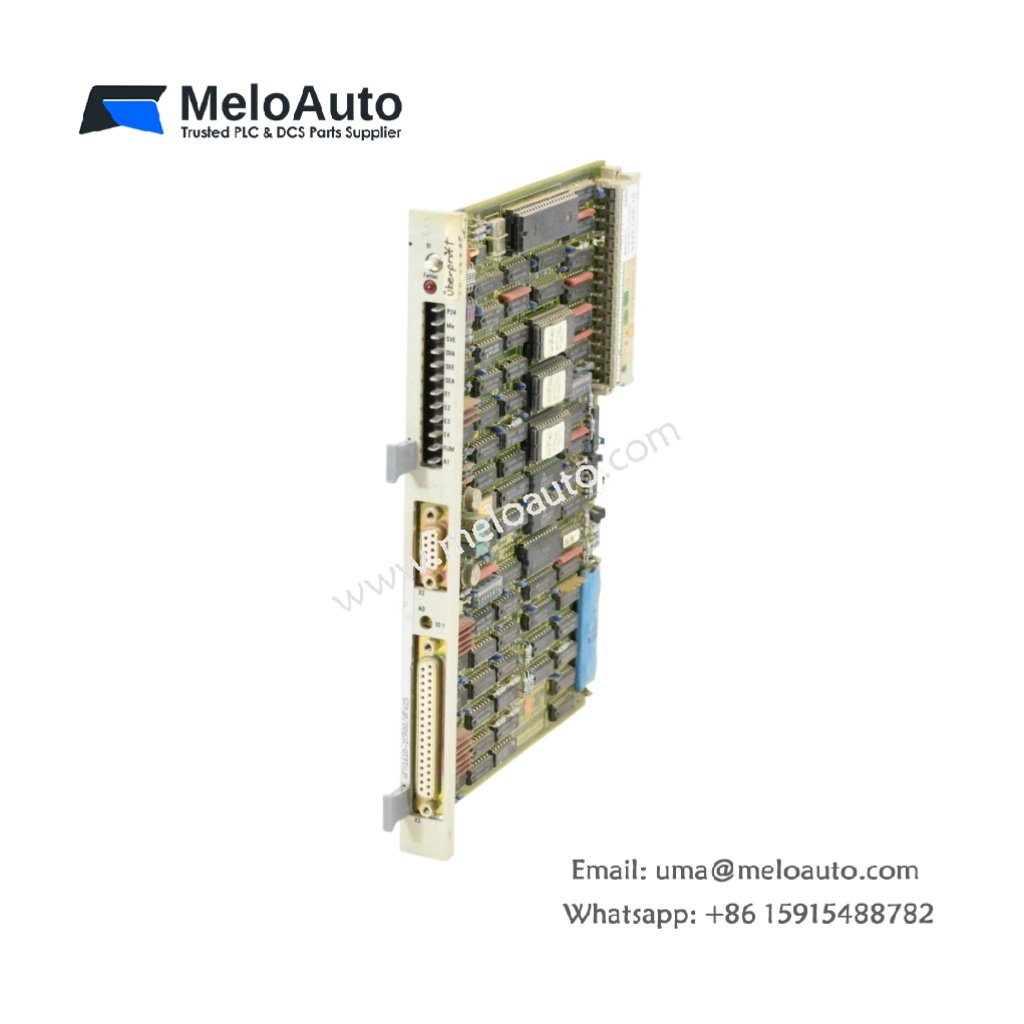

The Siemens 6FM1610-1CB00 positioning module provides accurate single-axis positioning control for SIMATIC S5 programmable controllers. This module drives stepper motors or servo axes with integrated incremental encoders for closed-loop position feedback. It handles positioning tasks ranging from simple point-to-point moves to complex interpolated profiles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6FM1610-1CB00 |
| Series | SIMATIC S5 |
| Product Type | Positioning Module |
| Number of Axes | 1 |
| Motor Control | Stepper motor or servo axis with encoder feedback |
| Encoder Interface | Incremental encoder (5V TTL) |
| Position Resolution | 10 µm (typical with standard encoders) |
| Positioning Range | Up to 1,000,000 increments (software configurable) |
| Programmable Speed | 0.01 to 100 mm/s (depending on mechanics) |
| Acceleration/Deceleration | Programmable (linear ramps) |
| Travel per Motor Revolution | Software configurable |
| Reference Point Approach | Automatic (with reference cam) |
| Power Supply | 5V DC via backplane bus |
| Current Consumption | 5V DC / 300mA (max) |
| Weight | 0.45 kg |
| Dimensions (W x H x D) | 25 x 120 x 116.4 mm |
| Operating Temperature | 0°C to 60°C |
| Protection Rating | IP20 |
Flexible Drive Integration
The Siemens 6FM1610-1CB00 controls either stepper motors for cost-effective positioning or servo motors for high-performance applications. The module generates step/direction signals for stepper drives or provides ±10V analog output for servo amplifiers. This flexibility allows system designers to select the most appropriate drive technology for each application.
Precision Feedback and Resolution
An integrated incremental encoder interface accepts 5V TTL signals for precise position verification. The module achieves a positioning resolution of 10 µm with standard encoders, ensuring accurate part placement. Software configuration of travel per motor revolution also accommodates various mechanical transmission systems.
Comprehensive Positioning Functions
Users can define position setpoints, speeds, and acceleration/deceleration ramps through the S5 CPU. The module handles automatic reference point approach using a reference cam for reproducible machine zeroing. It also supports absolute positioning with defined software limits.
Application Versatility
This positioning module serves applications such as pick-and-place machines, cutting systems, and assembly stations. It ensures precise movement control for both single-step and multi-position operations. The robust design delivers reliable performance in demanding industrial environments.
