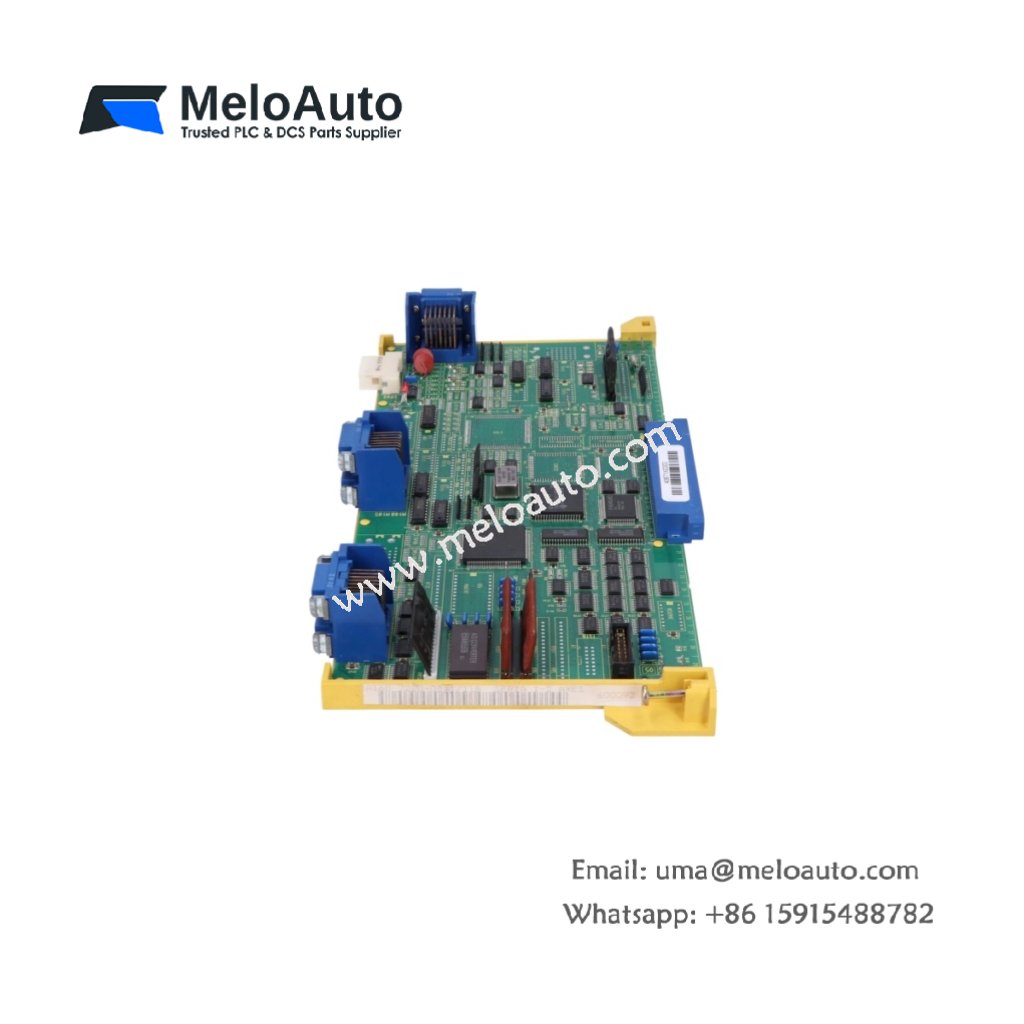

GE A16B-2200-039 Control Board

Key Technical Specifications at a Glance

Parameter	Value
Model	A16B-2200-039
Category	Control Board
Weight	1.2 lbs (0.54 kg)
Dimensions	8.5 x 6.2 x 1.8 inches
Board Layers	6-layer PCB
Component Count	128 discrete components
Onboard Memory	4MB flash, 512KB SRAM
Operating Voltage	5V DC ±5%
Power Consumption	15W typical
Interface Ports	2 x RS-232, 1 x Ethernet
Connector Pins	64-pin expansion bus

Dimensions and Physical Construction

This A16B-2200-039 control board measures 8.5 inches in length. Its width reaches 6.2 inches with a height of only 1.8 inches. The total weight comes to approximately 1.2 pounds. Manufacturers designed this PCB with six conductive layers. These layers improve signal integrity and reduce electromagnetic interference.

Component Layout and Storage Capabilities

A16B-2200-039 contains exactly 128 discrete components on its surface. These components include capacitors, resistors, and integrated circuits. For energy storage, the board integrates four 1000µF electrolytic capacitors. They handle short-term power fluctuations effectively. Additionally, onboard memory includes 4MB of flash storage. The flash memory holds firmware and configuration data permanently. A separate 512KB SRAM module manages temporary operational data.

Connectivity and Power Requirements

The control board features three external interface ports. Two of these are RS-232 serial ports for legacy equipment. One 10/100 Ethernet port enables modern network connectivity. A 64-pin expansion bus connects to external I/O modules. The A16B-2200-039 requires a stable 5V DC power supply. Voltage tolerance stays within ±5% for reliable operation. Typical power draw measures 15 watts under normal load.

Operational Reliability and Applications

You will find this control board in CNC machines and industrial robots. It also suits automated assembly lines and test equipment. The board operates between 0°C and 60°C ambient temperatures. Its six-layer design dissipates heat more evenly than four-layer boards. Consequently, this unit provides long service life in demanding factory floors.
