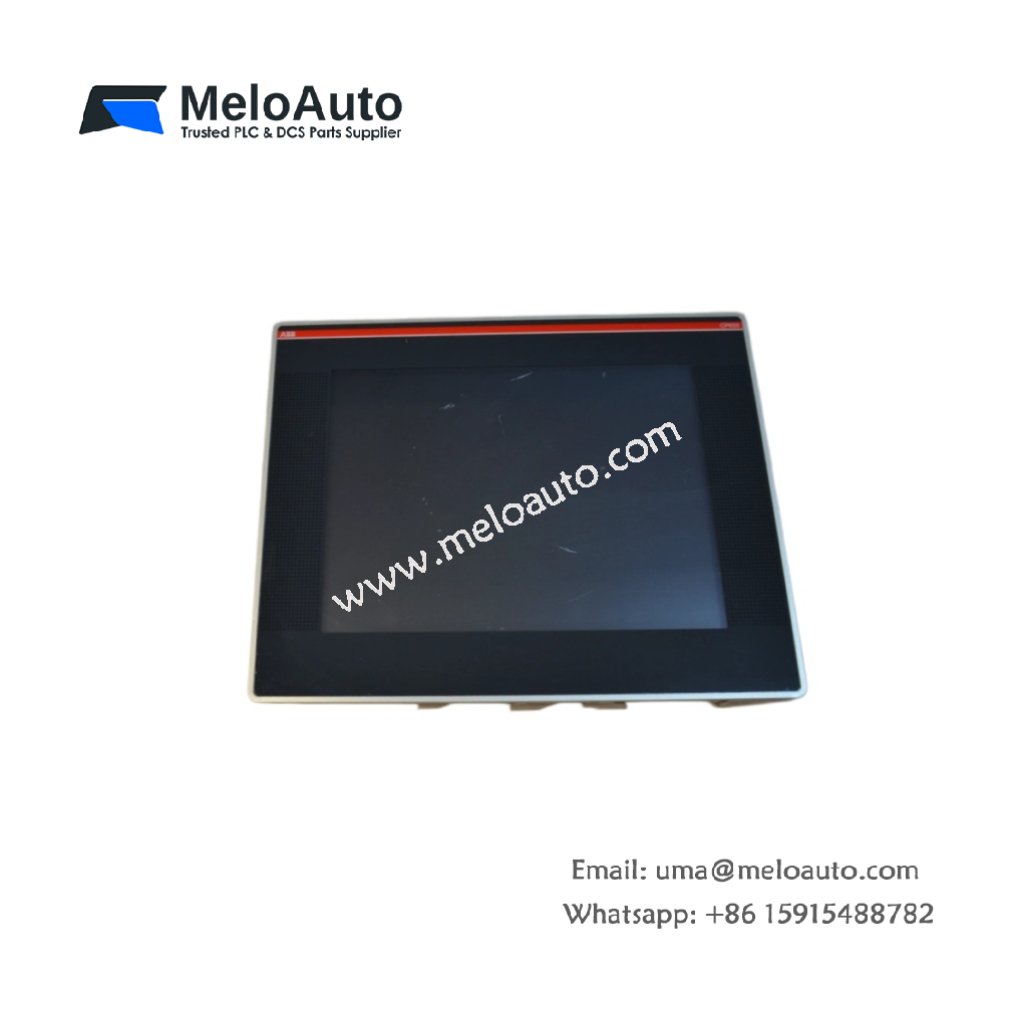

ABB 1SAP550100R0001 | Touch Screen Display

This touch screen display provides operator interface for ABB AC500 PLC systems. It visualizes process data and accepts commands through a fingertip touch. Therefore, this component enables intuitive control of industrial machinery and production lines.

Physical Dimensions and Weight Specifications

The ABB 1SAP550100R0001 features a flat panel design for panel mounting. Its screen measures 7 inches diagonally for clear visibility. The total depth reaches 55 mm including the rear electronics. Consequently, technicians can install this display on cabinet doors.

Parameter	Specification
Product Model	ABB 1SAP550100R0001
Screen Size	7 inches diagonal
Width	210 mm
Height	165 mm
Depth	55 mm
Weight	0.85 kg

Interface Types and Connection Layout

The ABB 1SAP550100R0001 provides one Ethernet port for PLC communication. A second USB port supports data transfer and firmware updates. The rear panel carries a 24V DC power input terminal. Hence, users can connect this display directly to plant networks.

Component Count and Display Technology

This touch screen contains one main board with a 32-bit ARM processor. The board holds 128 MB of flash memory for screen projects. You will also find 64 MB of RAM for runtime operations. An onboard real-time clock timestamps alarm events for diagnostics.

Technical Feature	Description
Display Type	TFT-LCD, 800 x 480 pixels
Touch Technology	Resistive analog
Backlight	LED, 50,000 hours typical
Communication	Ethernet, USB host
Runtime Memory	64 MB RAM, 128 MB flash

Energy Storage and Power Consumption

The ABB 1SAP550100R0001 draws 400 mA from the 24V DC supply. A supercapacitor retains the real-time clock for 14 days without power. This storage maintains event timestamps during display shutdowns. Therefore, the screen shows correct time after power restoration.

Operating Conditions and Environmental Ratings

The display operates in temperatures from 0°C to 50°C. Its front face carries an IP65 rating for water and dust resistance. Users can interact with the screen while wearing gloves. This durability suits harsh factory environments.
