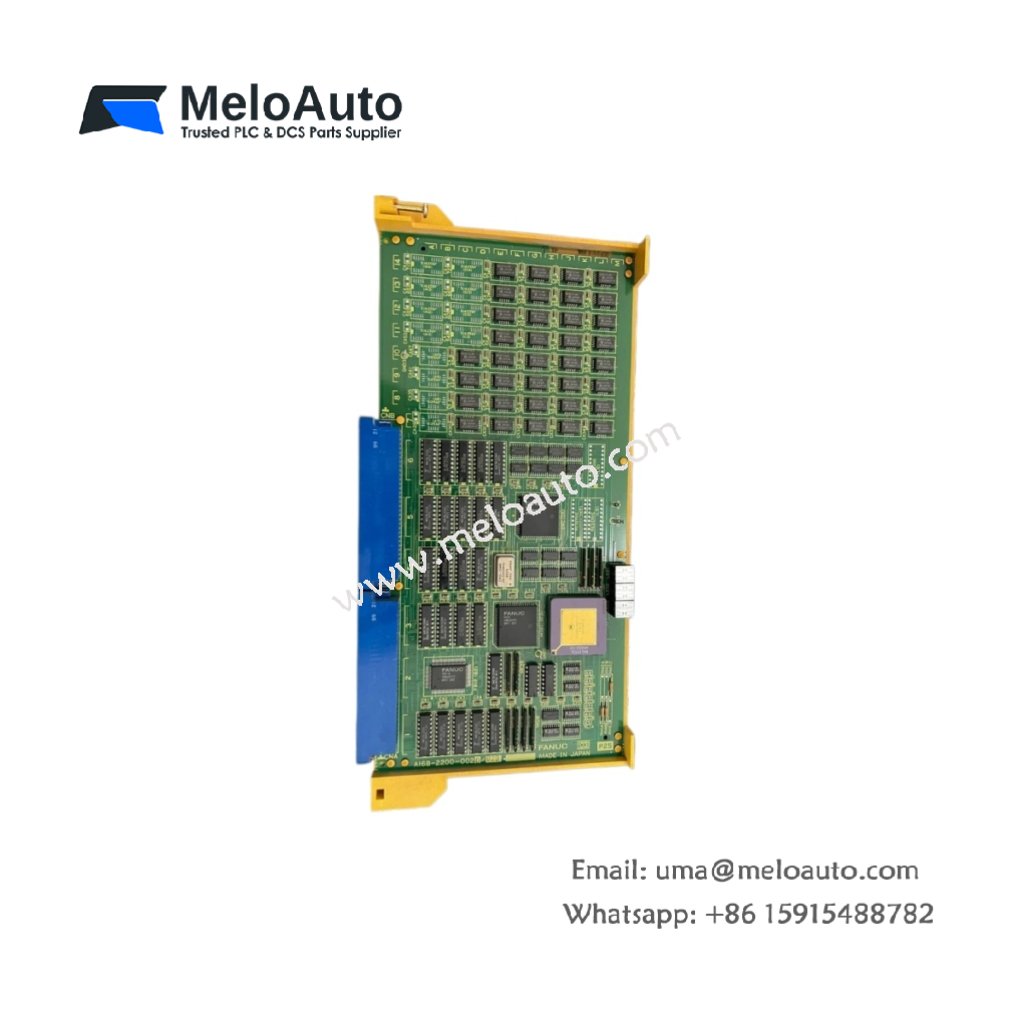

GE A16B-2200-0020/03B PCB Board for GE Fanuc CNC Systems

Brand: General Electric
Model Number: A16B-2200-0020/03B
Type: PCB Board
Product Origin: USA
Payment: T/T, Western Union, Credit Card
Price: USD 120
Dimensions: 5.2 x 7.0 inches (132.08 x 177.8 mm)
Weight: 1.2 lbs (544 grams)
Warranty: 12 months

  • Product Details

The GE A16B-2200-0020/03B serves as a control circuit board for GE Fanuc CNC systems. You can install this board into the main rack of Series 15 or 16 controllers. It processes machine I/O signals and axis command data. This board suits machining centers, lathes, and industrial automation applications.

Technical Specifications and Hardware Layout

This PCB board measures 260 mm in height. Its width reaches 210 mm, and the depth equals 35 mm. The GE A16B-2200-0020/03B weighs approximately 0.55 kilograms. A single multilayer PCB holds all processing and interface circuits. The board contains no energy storage capacitors or batteries. Two 50-pin ribbon connectors provide I/O signal interfaces. Three 34-pin headers handle peripheral device connections. Four test points allow signal monitoring with oscilloscope probes.

Parameter Specification
Model GE A16B-2200-0020/03B
Category PCB Board
Dimensions (H x W x D) 260 mm x 210 mm x 35 mm
Weight 0.55 kg
PCB Layers 6
Energy Storage None
I/O Connectors 2 x 50-pin ribbon
Peripheral Headers 3 x 34-pin
Test Points 4
Temperature Range 0°C to 55°C

Processing Capabilities and Compatibility

The GE A16B-2200-0020/03B interfaces with servo drives and machine peripherals. It communicates with the main CNC processor through a high-speed bus. This board handles up to 64 discrete I/O points for machine control. Consequently, it supports tool changers, coolant systems, and safety circuits. The board includes a built-in watchdog timer for fault detection. It stores configuration parameters in onboard EEPROM memory. The board generates and monitors machine interlock signals.

Installation and Diagnostic Features

You must insert this board firmly into a dedicated CNC rack slot. Transitioning to wiring, route I/O cables away from motor power cables. The board includes LED indicators for power and fault status. For troubleshooting, use the four test points with a multimeter. Always power off the system before removing or inserting the board. The operating temperature range spans from 0°C to 55°C reliably.
