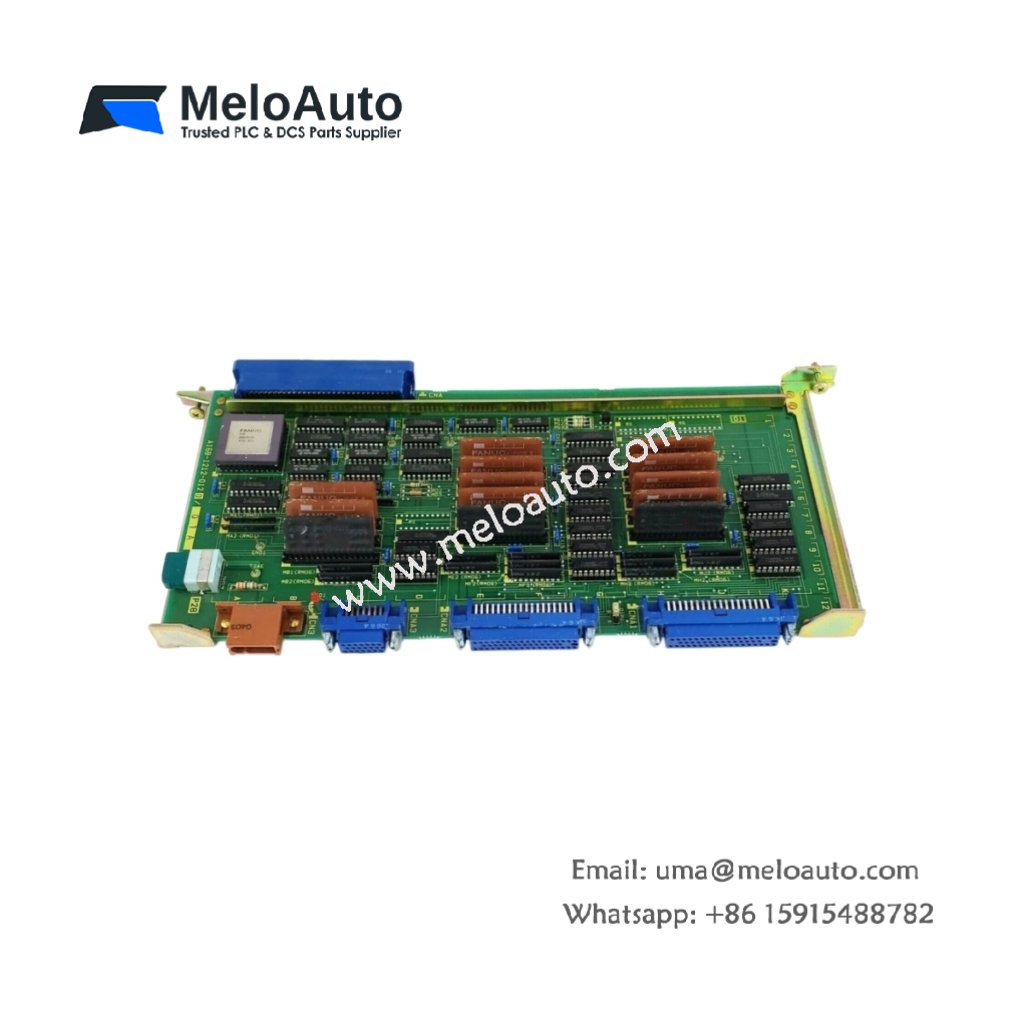

GE A16B-1212-0120 I/O Additional Board

The GE A16B-1212-0120 expands input and output capacity for GE CNC controls. This additional board measures 250 mm in width and 180 mm in height. It has a depth of 25 mm, so it fits standard card racks easily. The unit weighs 0.38 kg, making installation straightforward.

I/O Channels and Signal Types

This I/O board provides 32 digital input channels and 24 digital output channels. The GE A16B-1212-0120 accepts 24V DC signals from machine sensors and limit switches. Each input channel includes optocoupler isolation for noise immunity. The outputs use transistor switching rated for 0.1 amps at 24V DC. LED indicators show the status of all input and output channels.

Communication Interface and Data Transfer

The board connects to the main CNC processor via a 50-pin backplane connector. The GE A16B-1212-0120 transfers I/O data every 4 milliseconds for reliable response. A dedicated microcontroller manages all I/O scanning and filtering functions. The board supports daisy-chaining for additional expansion boards. Diagnostic LEDs show communication and power status clearly.

Internal Architecture and Component Layout

The circuit board contains three major integrated circuits and passive components. The GE A16B-1212-0120 includes separate sections for input and output signal conditioning. Field-programmable gate arrays handle I/O mapping and data routing tasks. The board stores 100 µF of capacitance for power supply filtering. Surge protection components guard against field wiring transients.

Power Requirements and Environmental Tolerance

The GE A16B-1212-0120 draws 250 mA at 5V DC from the backplane supply. It also draws 100 mA at 24V DC for output driver circuits. The board operates reliably from 5°C to 45°C ambient temperature. It tolerates humidity levels up to 85 percent without any condensation issues. The unit withstands vibration up to 1g from 10 to 55 Hz.

Below is a complete summary of its technical specifications.

Parameter	Value
Dimensions (W x H x D)	250 mm x 180 mm x 25 mm
Weight	0.38 kg
Digital Inputs	32 at 24V DC
Digital Outputs	24 transistor, 0.1 A at 24V DC
Input Isolation	Optocoupler
Output Type	Transistor
Scan Time	4 ms
Microcontroller	Dedicated
FPGA	Yes (I/O mapping)
Backplane Connector	50-pin
Daisy-chain Support	Yes
Number of Major ICs	3
Internal Capacitance	100 µF
Backplane Current (5V)	250 mA
Backplane Current (24V)	100 mA
Surge Protection	Yes
Status LEDs	Inputs, outputs, power
Operating Temperature	5°C to 45°C
Vibration Tolerance	1g (10-55 Hz)
Humidity Tolerance	85% non-condensing

The GE A16B-1212-0120 replaces older additional I/O boards in GE CNC systems. You do not need any special adapters or configuration tools. This board also supports hot-swapping in compatible backplane configurations. Consequently, it expands I/O capacity for complex machining centers.
