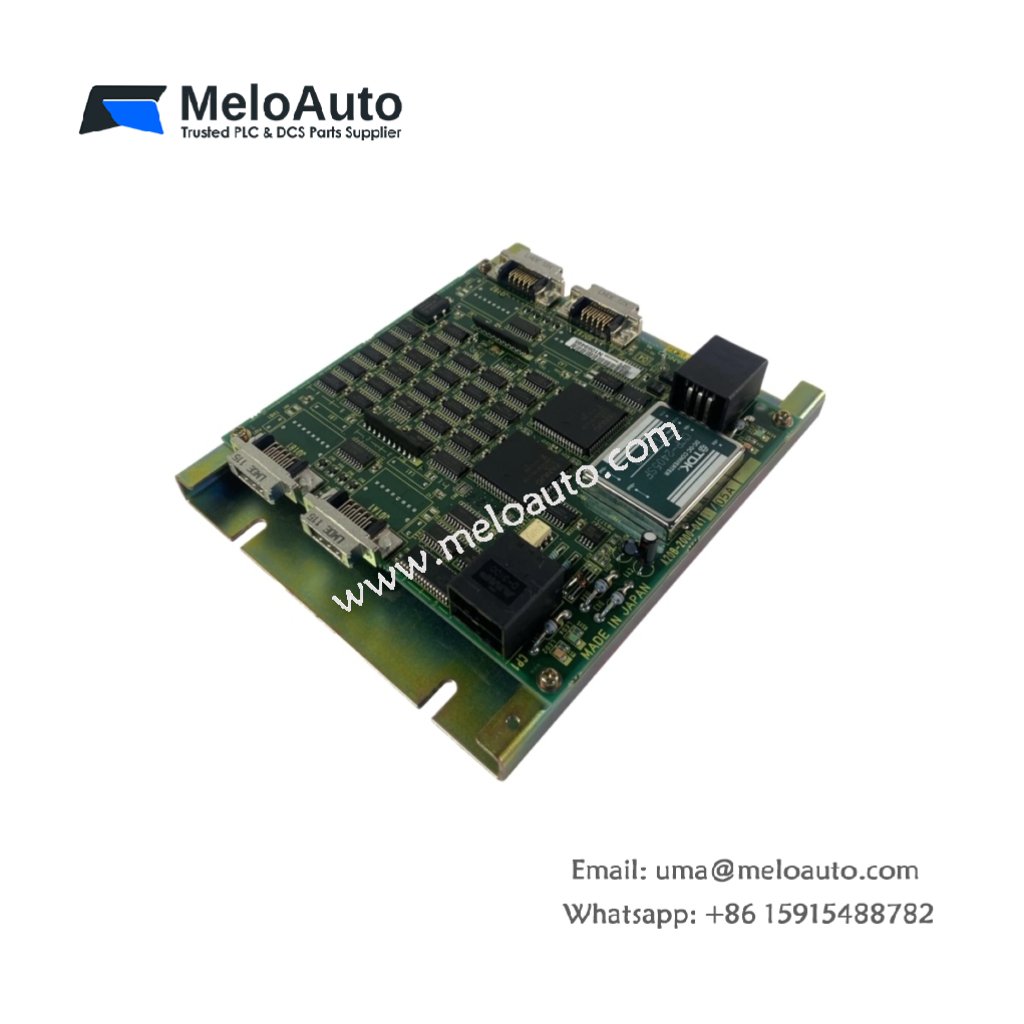

GE A20B-2000-0411 Circuit Board

The GE A20B-2000-0411 provides control logic for CNC servo amplifier systems. This circuit board measures 220 mm in width and 160 mm in height. It has a depth of 30 mm, so it fits standard amplifier card racks. The unit weighs 0.35 kg, making replacement straightforward.

Processor and Control Functions

This circuit board contains a 16-bit microcontroller running at 20 MHz. The GE A20B-2000-0411 generates PWM signals for servo motor current control. It processes feedback from resolver or encoder inputs for position tracking. The board handles up to 2 servo axes simultaneously. A dedicated watchdog timer monitors processor operation for safety.

Signal Processing and Feedback Interface

The board accepts resolver input signals at frequencies up to 10 kHz. The GE A20B-2000-0411 converts analog current commands into digital PWM outputs. It includes three analog-to-digital converters for motor current monitoring. The board also processes encoder signals with A, B, and Z channels. A 16-bit digital-to-analog converter generates ±10V test outputs.

Internal Architecture and Component Layout

The circuit board contains five major integrated circuits and passive components. The GE A20B-2000-0411 includes separate sections for power supply and signal conditioning. A 50-pin edge connector interfaces with the servo amplifier power stage. The board stores 220 µF of capacitance for power supply filtering. LED indicators show processor status, fault conditions, and power health.

Power Requirements and Environmental Tolerance

The GE A20B-2000-0411 draws 300 mA at 5V DC from the backplane supply. It also draws 150 mA at ±15V DC for analog circuits. The board operates reliably from 5°C to 45°C ambient temperature. It tolerates humidity levels up to 85 percent without any condensation issues. The unit withstands vibration up to 1g from 10 to 55 Hz.

Below is a complete summary of its technical specifications.

Parameter	Value
Dimensions (W x H x D)	220 mm x 160 mm x 30 mm
Weight	0.35 kg
Processor	16-bit, 20 MHz
Servo Axes Controlled	Up to 2
PWM Outputs	For motor current control
Feedback Type	Resolver or encoder
Resolver Frequency	10 kHz max
ADC Channels	3 for current monitoring
DAC Resolution	16-bit (±10V test output)
Watchdog Timer	Yes
Number of Major ICs	5
Edge Connector	50-pin
Internal Capacitance	220 µF
Backplane Current (5V)	300 mA
Backplane Current (±15V)	150 mA
Status LEDs	Processor, fault, power
Operating Temperature	5°C to 45°C
Vibration Tolerance	1g (10-55 Hz)
Humidity Tolerance	85% non-condensing

The GE A20B-2000-0411 replaces older control boards in GE servo amplifiers. You do not need any special adapters or additional configuration tools. This board also supports both resolver and encoder feedback types. Consequently, it ensures precise servo motor control for CNC axis drives.
