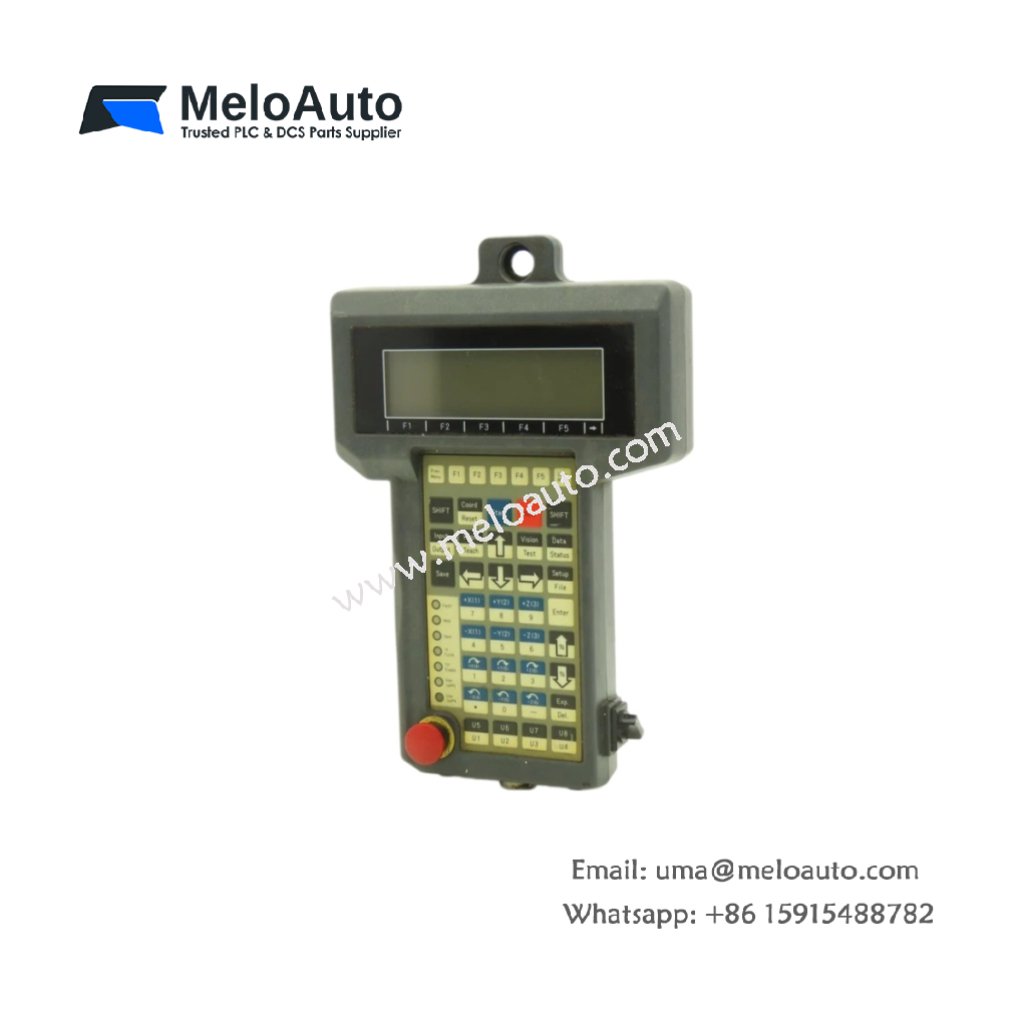

GE A05B-2051-C143 | Teach Pendant | Industrial Robot Controller

The GE A05B-2051-C143 provides handheld programming and control for industrial robots. This teach pendant connects directly to GE robot controllers. It allows operators to program motion paths and diagnostic routines manually.

Technical specifications of GE A05B-2051-C143

Parameter	Specification
Brand	GE (Fanuc compatible)
Model	GE A05B-2051-C143
Category	Teach Pendant (Programming Terminal)
Display Type	Monochrome LCD
Display Size	5.7 inches diagonal
Number of Keys	48 membrane keys
Key Types	Numeric, navigation, function, emergency stop
Emergency Stop	2-channel redundant push button
Enable Switch	3-position deadman switch on rear
Communication Interface	RS-422 / RS-485
Cable Type	Shielded coiled cable
Cable Length	8 meters (extended)
Connector Type	25-pin D-sub (male)
Power Source	From controller (5V DC)
Current Consumption	200 mA typical
Number of Components	1 housing, 1 LCD, 48 keys, 1 cable, 1 PCB
Dimensions (L x W x H)	Approx. 25 cm x 12 cm x 5 cm
Weight	Approx. 1.2 kg (including cable)
Energy Storage	None (no battery or capacitor)
Operating Temperature	0°C to 45°C
Protection Rating	IP54 (splash resistant)

Detailed Technical Analysis

The GE A05B-2051-C143 features a 5.7-inch monochrome LCD for program viewing. This display shows current robot position, program lines, and diagnostic messages. The pendant has 48 membrane keys for complete robot programming. It includes numeric keys, navigation arrows, and dedicated function buttons.

Now let us examine its safety features. The GE A05B-2051-C143 includes a large red emergency stop button. This two-channel button immediately halts all robot motion when pressed. The rear side features a three-position enable switch. You must hold this switch in the middle position for motion commands.

The pendant connects to the robot controller via an 8-meter coiled cable. This cable extends from 1.5 meters to 8 meters when stretched. The GE A05B-2051-C143 uses a 25-pin D-sub connector at the controller end. It draws 5V DC power directly from the connected controller.

Installation and Operation Guidelines

You plug the GE into the robot controller’s pendant port. The system automatically recognizes the device at power-up. Select the desired operating mode using the key switch on the controller. Then use the pendant to jog axes, teach points, and edit programs.

For safe operation, always test the enable switch before programming. The GE A05B-2051-C143 requires no external power source or batteries. Its IP54 rating resists dust and splashing water in factory environments. Clean the membrane keypad with a soft, damp cloth only.

Practical Applications

Engineers use this teach pendant for robot programming and debugging. For example, you can teach pick-and-place positions for a material handling robot. The GE A05B-2051-C143 also allows manual axis jogging for maintenance tasks. Its emergency stop provides immediate safety response during teaching.

Summary

To conclude, the GE offers an 8-meter cable and 48 programming keys. It weighs 1.2 kilograms and requires no batteries. Choose this teach pendant for reliable robot programming and control.
