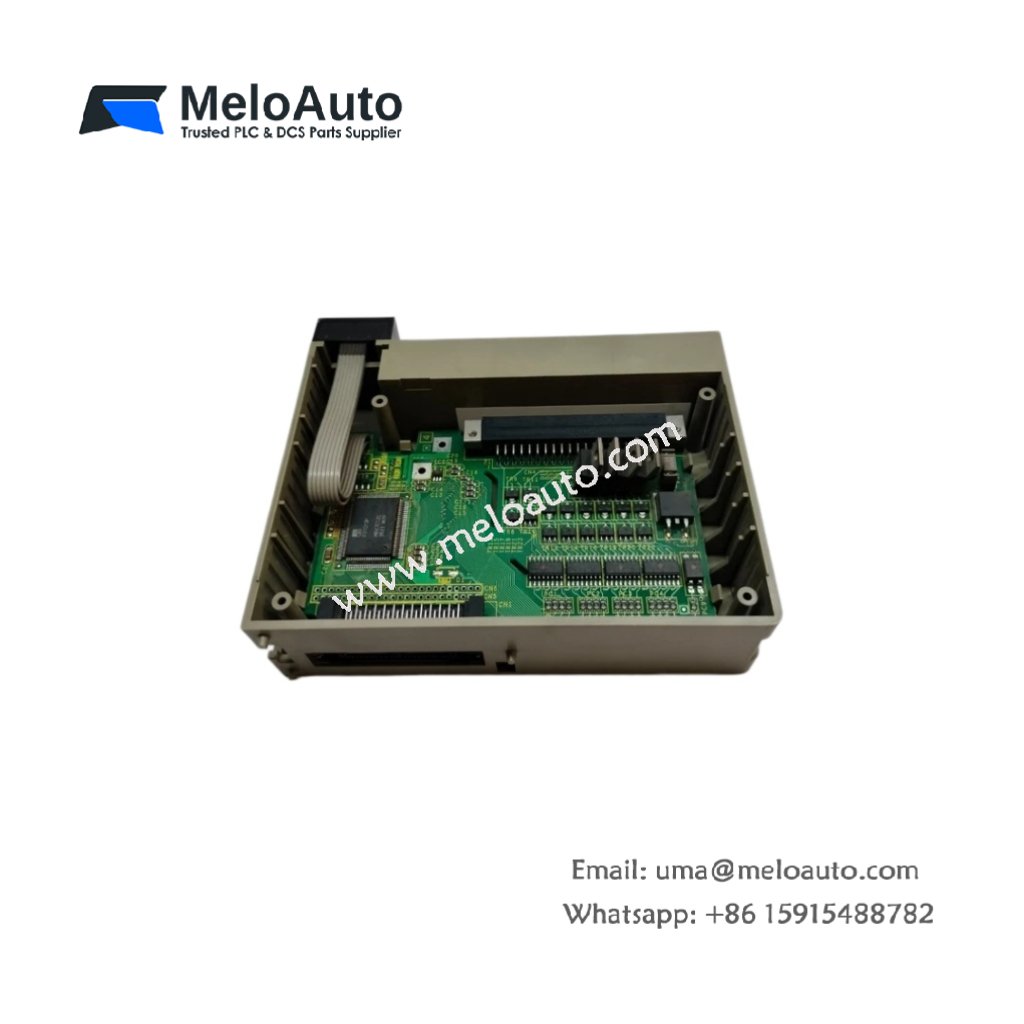

Fuji NC1Y32T05P1 | 32‑Channel Digital Output Module

The Fuji NC1Y32T05P1 provides thirty‑two transistor outputs for high‑density control. This module drives solenoids, LEDs, and small relays efficiently. It fits perfectly into NC1 series PLC systems. Panel builders value this unit for its compact channel packing.

Complete Technical Specifications

Parameter	Specification
Dimensions (W x H x D)	82 mm x 90 mm x 55 mm
Weight	0.28 kg
Number of Output Points	32 channels
Output Type	Transistor, NPN
Output Current per Channel	0.5 A at 24V DC
Total Output Current	8 A maximum (common)
Internal Energy Storage	470 µF capacitor
Operating Voltage	24V DC +20% / -15%
Power Consumption	4 W typical
Isolation Method	Optocoupler per channel
Response Time	0.2 ms maximum
Terminal Type	40‑pin connector (ribbon cable)
LED Indicators	32 green status LEDs

Physical Layout and Connection Design

The Fuji NC1Y32T05P1 weighs only 0.28 kilograms for lightweight mounting. Its 82 mm width occupies just one slot on the base board. Thirty‑two output channels appear on a single 40‑pin ribbon connector. Each channel includes a green status LED for visual feedback. A 470 µF capacitor filters supply voltage transients effectively. The module uses optocouplers to isolate every output from the backplane.

Output Characteristics and Switching Performance

Each channel delivers 0.5 amperes continuously at 24V DC. The total common current reaches 8 amperes maximum. Therefore, this module suits LED indicator panels and valve arrays. The response time stays under 0.2 milliseconds. Consequently, you can use it for high‑speed sorting and counting applications. All outputs feature short‑circuit and overcurrent protection internally.

Installation and Wiring Guidelines

Mount the Fuji NC1Y32T05P1 into any NC1 series base slot. First, disconnect system power before installation. Then attach a 40‑pin ribbon cable to the module connector. Connect the other end to a terminal block for field wiring. Wire each load between the output point and common 0V. Use an external fuse on the common line for safety. Finally, apply power and test each channel individually.

System Integration and Application Notes

This output module works with all NC1 series CPUs. It occupies one slot regardless of the 32 channel count. Typical applications include matrix LED displays and solenoid banks. The unit also suits pick‑and‑place machine actuators. For loads exceeding 0.5 amperes, add external interposing relays. The compact design allows dense cabinet layouts with many points.
