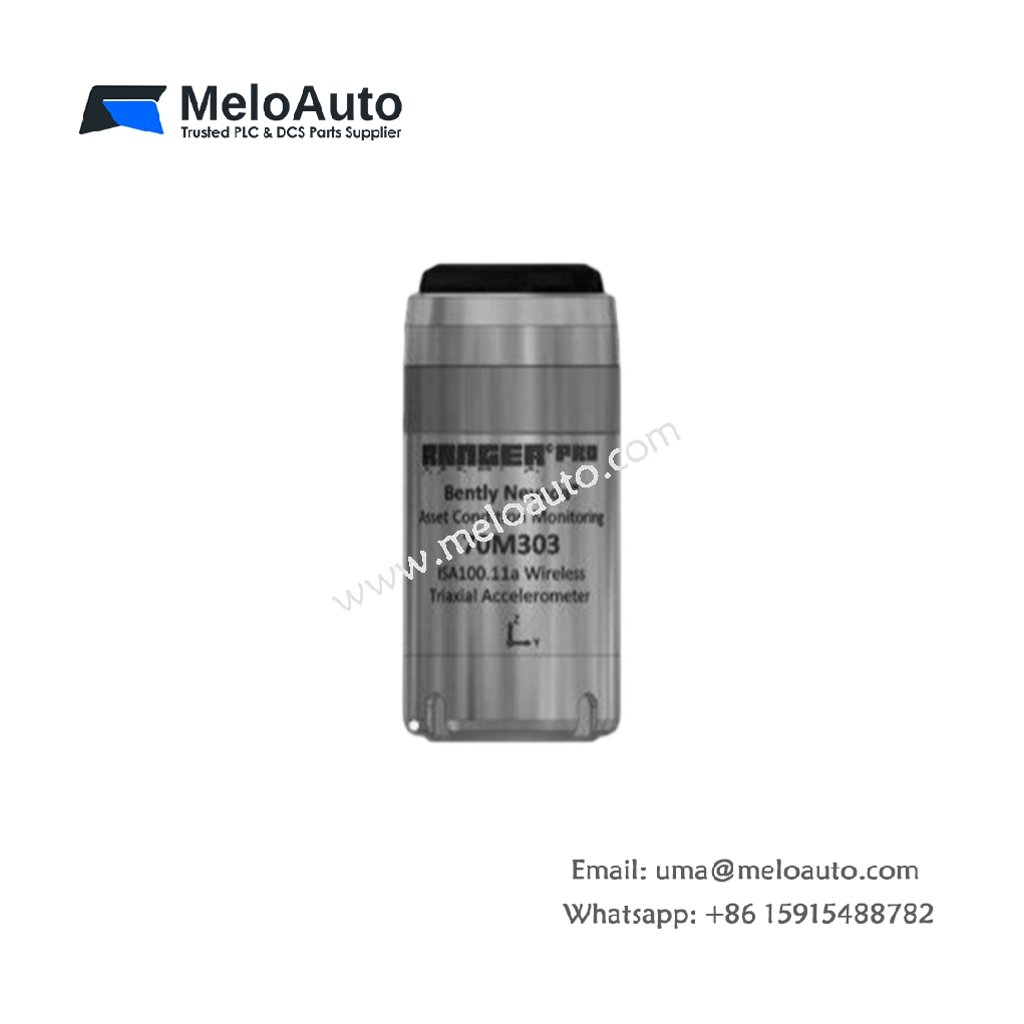

Bently Nevada 70M303 121M6469 Wireless Sensor

The 70M303 121M6469 wireless sensor from Bently Nevada monitors machine vibration and temperature without field cabling. Plant engineers deploy this sensor on pumps, motors, and compressors where routing wires would prove costly. Consequently, it delivers continuous condition data to the gateway across the plant network.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 70M303 121M6469 sensor.

Parameter	Specification
Product Type	Wireless Sensor
Compatibility	Bently Nevada wireless condition monitoring systems
Dimensions	Approximately 60 mm x 60 mm x 45 mm
Weight	Approximately 0.35 kg (0.77 lbs)
Mounting	Threaded stud or magnetic base mounting
Interface	Wireless network link and status indicator
Connectors	Integrated antenna and battery compartment
Component Count	Radio transceiver, accelerometer element, and processing circuits
Energy Storage	Internal battery plus capacitors for transmission stabilization
Measurement Channels	Vibration and temperature measurement
Operating Temperature	-20 degrees C to 85 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This sensor captures vibration and temperature readings and transmits them over a wireless link. Therefore, it removes the need for long cable runs to every measurement point. The 70M303 121M6469 also stores data locally until the gateway confirms receipt. Meanwhile, its internal energy storage keeps transmissions stable during peak power demand.

Installation and Handling Notes

Always prepare a clean, flat surface before mounting the 70M303 121M6469 onto machine housings. In addition, apply the specified torque to the mounting stud. Keep the sensor away from large metal structures that block radio signals. Finally, confirm signal strength after installation.
