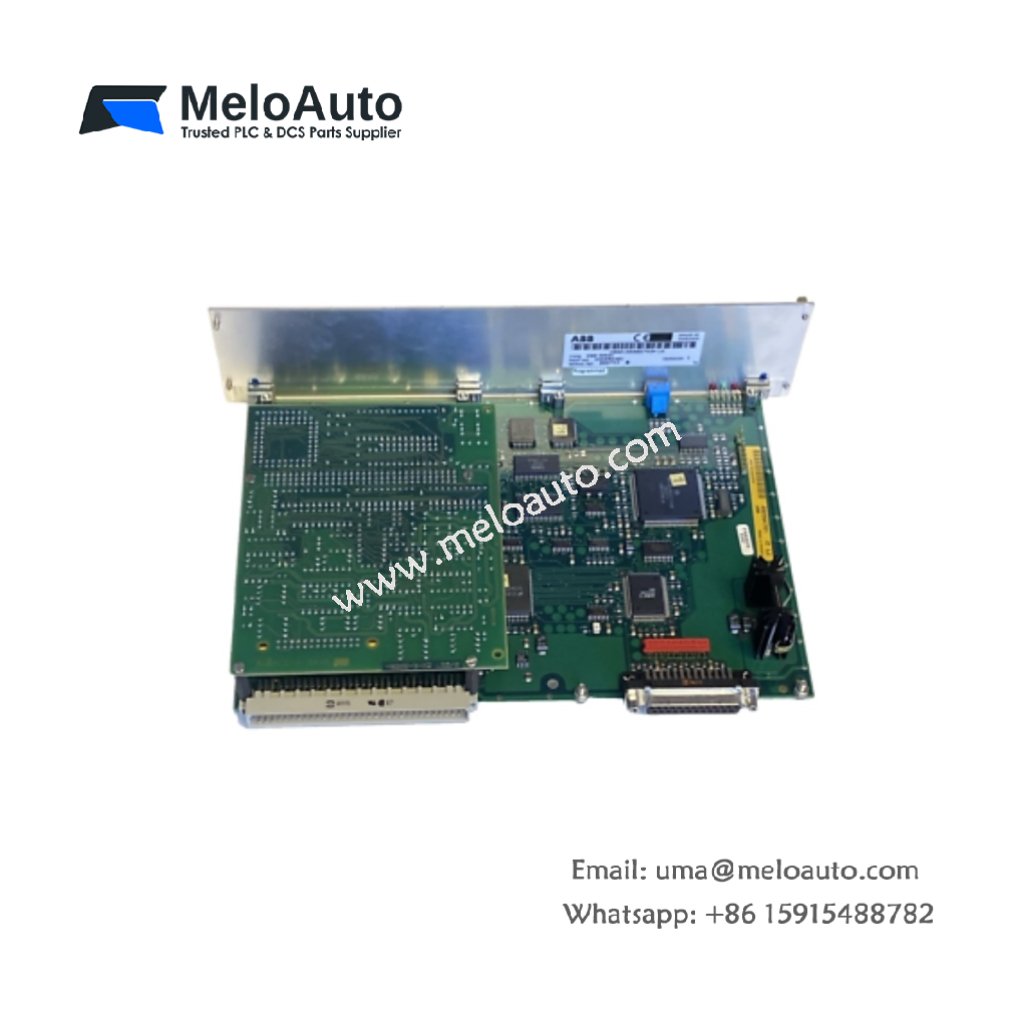

The 200-RACN connects remote I/O racks to the main ABB controller. This rack adapter manages data flow between the CPU and field modules. You can use it for system expansion in large automation networks.
Key Technical Parameters
The table below lists all essential technical specifications for this rack adapter.
| Specification | Details |
|---|---|
| Part Number | 200-RACN |
| Product Type | Rack Adapter |
| Compatibility | ABB distributed I/O systems |
| Number of Slots | 8 I/O module slots |
| Communication Protocol | ABB proprietary bus |
| Maximum Cable Length | 200 meters (coaxial) |
| Scan Time | 5 ms typical |
| Dimensions (W x H x D) | 160 mm x 120 mm x 45 mm |
| Weight | Approx. 0.42 kg |
| Interface Type 1 | Coaxial (to CPU) |
| Interface Type 2 | Backplane bus (to I/O) |
| Power Supply | 24V DC external |
| Current Consumption | 250 mA maximum |
| Operating Temperature | 0°C to 55°C |
Physical Characteristics and Installation
This rack adapter weighs approximately 0.42 kg for secure chassis mounting. Its dimensions measure 160 mm x 120 mm x 45 mm for compact cabinet fit. First, mount the 200-RACN onto your DIN rail or backplate. Then, insert up to 8 I/O modules into its expansion slots. Finally, connect the coaxial cable to your main controller. The front panel includes LED status indicators for power and communication.
Communication Architecture and Signal Flow
The 200-RACN uses a proprietary ABB bus for deterministic data exchange. A coaxial cable links this adapter to the central CPU over 200 meters. The adapter polls all connected I/O modules in a fixed sequence. Each scan cycle takes only 5 ms on average. Consequently, you get real-time data updates for process control applications.
Power Requirements and System Integration
This rack adapter requires an external 24V DC power supply for operation. The unit draws a maximum of 250 mA under full load. The 200-RACN distributes this power to all eight I/O slots automatically. You do not need separate power supplies for each module. This rack adapter works with both digital and analog I/O types.
