HIMA F6214 Analog Input Module

Module Overview

This analog input module captures 4-20 mA signals from safety field devices. You can install HIMA F6214 directly into HIMatrix system racks. The unit provides four intrinsically safe input channels for hazardous areas. It performs automatic self-diagnostics for failsafe operation.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	200 mm x 110 mm x 45 mm
Weight	0.42 kg
Number of analog inputs	4 isolated channels
Input signal range	0-20 mA or 4-20 mA
Input resolution	14-bit (0-16383 counts)
Accuracy	±0.1% of full scale
Input impedance	250 Ω
Intrinsic safety	Ex ia IIC (Zone 0,1,2)
Safety integrity level	SIL 3 (IEC 61508)
Diagnostic coverage	> 90% (internal self-test)
Response time	50 ms typical
Isolation	1500V RMS (channel to backplane)
Configuration	Software-selectable per channel
Operating temperature	-20°C to +60°C

Board Layout and Components

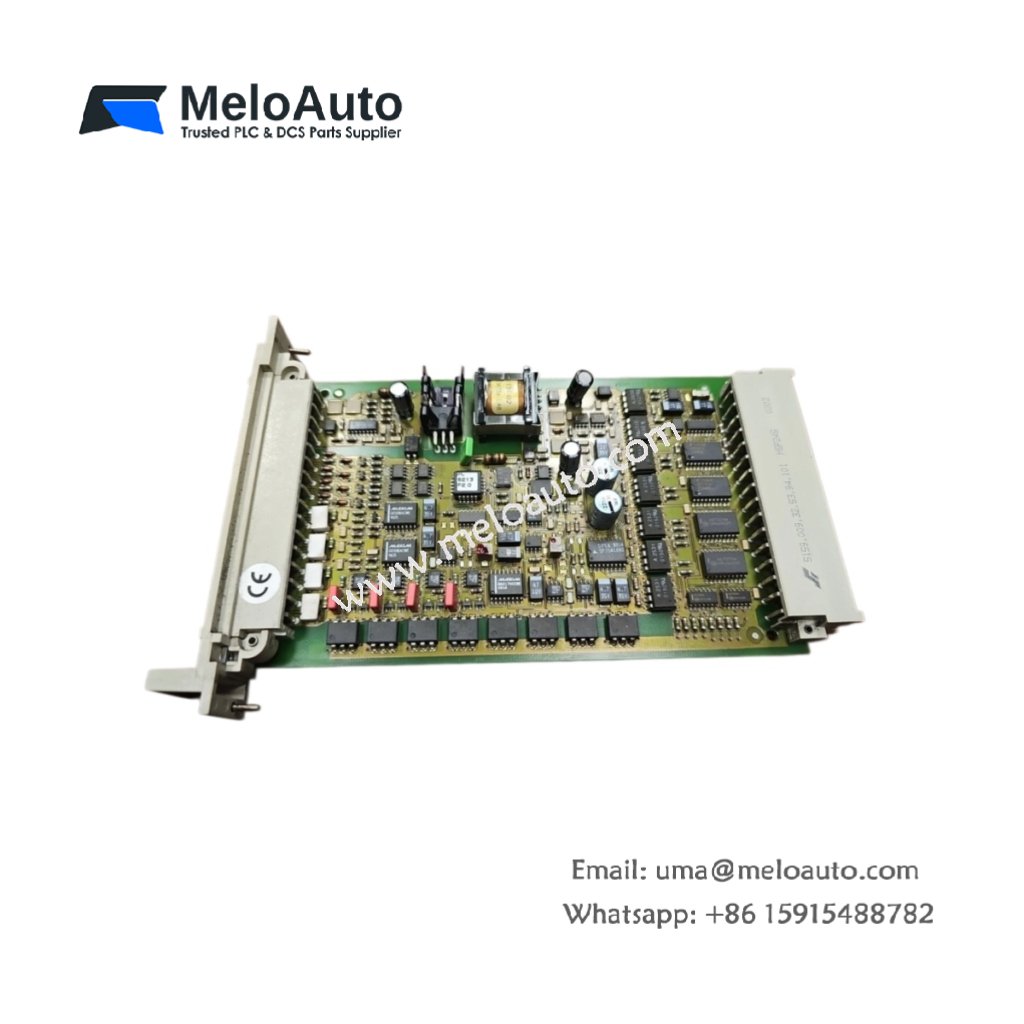

The PCB separates each input channel with reinforced isolation barriers. Four intrinsic safety barriers limit energy entering hazardous areas. Moreover, the module includes redundant analog-to-digital converters per channel. Continuous self-diagnostics test signal paths every 100 milliseconds. Consequently, the module detects internal faults before they affect safety functions.

Installation Process

You can mount HIMA F6214 into any HIMatrix system rack slot. The backplane connector supplies power and transfers data to the safety CPU. Furthermore, front panel screw terminals accept field wiring from hazardous area transmitters. Configuration software assigns each channel to safety logic functions easily.

Performance Advantages

This module meets SIL 3 requirements for safety instrumented systems. The intrinsic safety certification allows direct connection to Zone 0 field devices. Therefore, you do not need external isolation barriers for hazardous areas. The 14-bit resolution also captures small signal changes accurately.

Safety and Compliance

HIMA F6214 complies with IEC 61508 SIL 3 and Ex ia IIC standards. The module discharges stored energy below safe levels within two seconds. Hence, technicians face no explosion risk during field wiring maintenance.
