Bently Nevada 330130-080-02-05 3300 XL Extension Cable

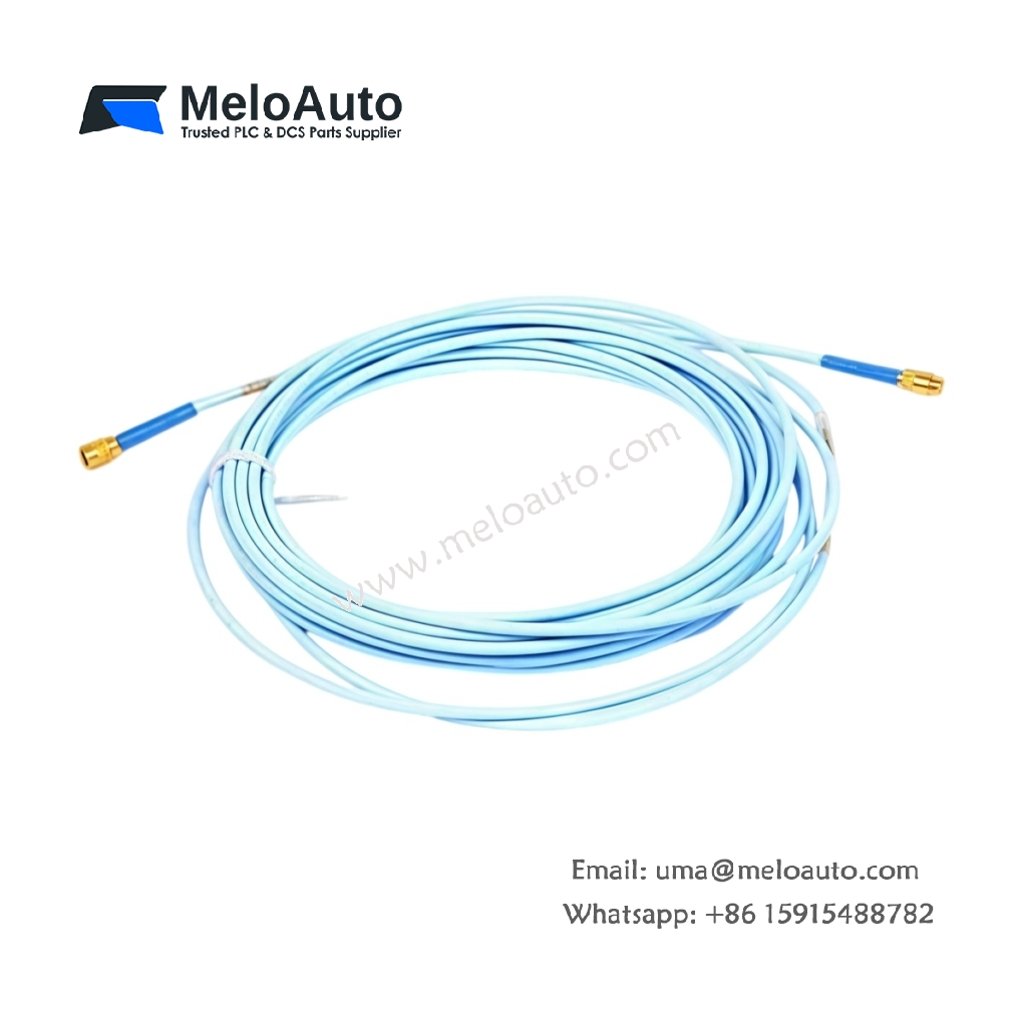

The Bently Nevada 330130-080-02-05 is an extension cable from the 3300 XL series. It connects proximity probes to drivers within 3300 XL measurement systems. Plants use this cable to extend signal paths on turbines, compressors, and motors. Consequently, it maintains signal integrity across longer installation distances.

Key Technical Specifications

Parameter	Specification
Model	Bently Nevada 330130-080-02-05
Category	3300 XL Extension Cable
Cable Length	8.0 metres (80 inches)
Connector Type	02 style coaxial connectors
Cable Type	75 Ω coaxial, triple shielded
Weight	Approximately 680 g
Operating Temperature	-51 °C to +177 °C
Capacitance	69.9 pF/m nominal
Connector Material	Stainless steel
Cable Jacket	FEP fluoropolymer
Minimum Bend Radius	25 mm
Interface Standard	3300 XL compatible

Component Count and Construction

Each assembly ships with two coaxial connectors, one at either end. The 330130-080-02-05 uses a triple-shielded 75 Ω coaxial cable design. Moreover, the FEP jacket resists abrasion, oil, and chemical attack. Stainless steel connectors tolerate repeated mating cycles in field service.

Signal Path and Energy Storage

This cable carries no active electronics or internal energy storage elements. Instead, it passively transmits high-frequency signals between probe and driver. The consistent 75 Ω impedance minimises reflections and signal loss. As a result, measurement accuracy stays stable across the full cable length.

Installation and Routing Notes

Technicians should respect the 25 mm minimum bend radius during routing. Additionally, keep cable runs away from high-voltage conductors and variable-frequency drives. Proper connector torque prevents intermittent signal faults in service. Always verify total system length against driver specifications.
