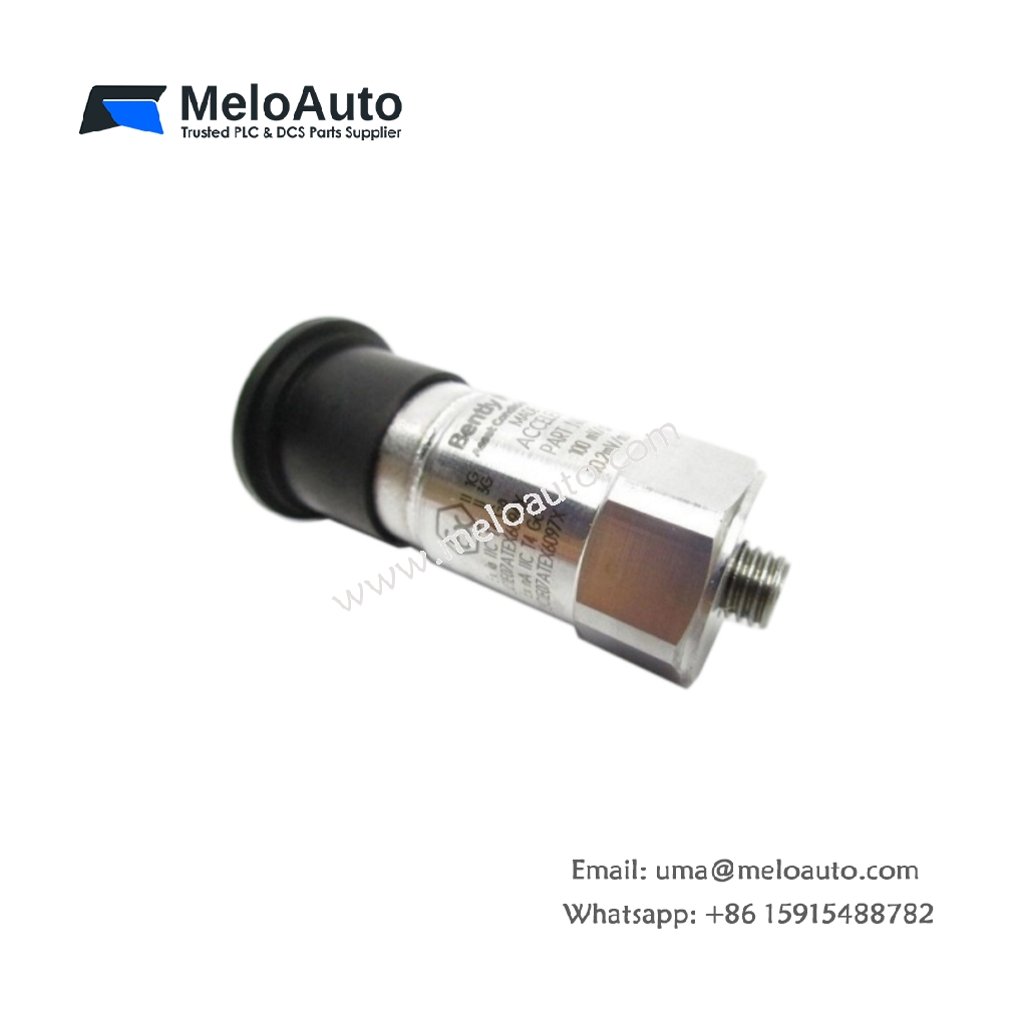

Bently Nevada 200350-02-00-00 Accelerometer Specs

The Bently Nevada 200350-02-00-00 is a 200355 series accelerometer built for industrial vibration monitoring. It captures casing and bearing vibration across a broad frequency spectrum. Maintenance teams trust it for pumps, motors, compressors, and turbines. Therefore, it plays a vital role in predictive maintenance programs.

Key Technical Specifications

Parameter	Specification
Model	Bently Nevada 200350-02-00-00
Category	Accelerometer (200355 Series)
Sensitivity	100 mV/g ± 10%
Frequency Range	0.5 Hz to 10 kHz
Measurement Range	± 50 g peak
Mounting Thread	1/4-28 UNF stud
Weight	Approximately 90 g
Housing Material	316L stainless steel
Connector	2-pin MIL-C-5015 style
Operating Temperature	-55 °C to +125 °C
Output Impedance	100 Ω nominal
Power Requirement	18 to 30 VDC, 2 to 10 mA

Housing and Mounting Design

Each unit arrives as one sealed assembly with an integrated connector. The 200350-02-00-00 features a rugged 316L stainless steel housing. Consequently, it endures moisture, dust, and chemical exposure in harsh plants. A 1/4-28 threaded stud secures the sensor to bearing housings.

Signal Output and Power Supply

This accelerometer produces a voltage output proportional to acceleration. It needs an external constant-current source to operate correctly. Typically, that source delivers 18 to 30 VDC at 2 to 10 mA. Therefore, the device contains no internal energy storage cells.

Installation and Wiring Guidance

Technicians should mount the sensor perpendicular to the machine surface. Correct torque on the mounting stud prevents signal distortion issues. Additionally, route cables away from high-voltage equipment to reduce interference. Always verify sensitivity calibration before commissioning the system.
