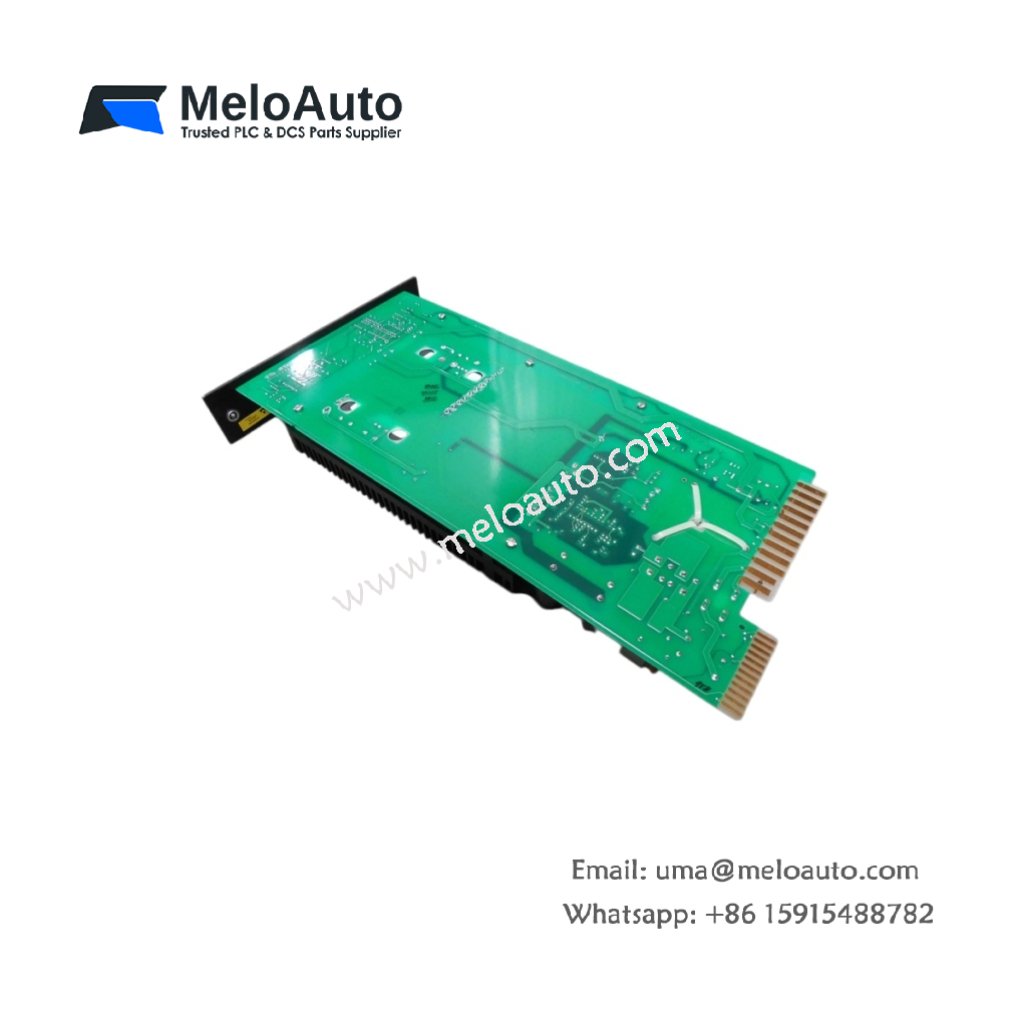

ABB Bailey IPFLD24 Power Module

This power system module supplies regulated DC voltage to ABB Bailey INFI 90 components. You will find the ABB Bailey IPFLD24 Power System Module converting AC mains power into stable 24 VDC output. Its high current capacity supports multiple I/O modules and field devices simultaneously.

Technical Specifications

This module contains one AC input stage and three isolated DC output channels. You can also locate two status LEDs for power presence and overload indication. The ABB Bailey IPFLD24 Power System Module stores minimal energy within its input filter capacitors. These capacitors discharge automatically within sixty seconds after input removal. Therefore, you should wait one minute before handling this module.

Parameter	Specification
Full Product Name	ABB Bailey IPFLD24 Power System Module
Series	INFI 90 / Bailey
Product Type	DC Power Supply Module
Weight	1.65 kg
Length	25.5 cm
Width	12.0 cm (dual-wide)
AC Input	100-240 VAC (47-63 Hz)
DC Output Voltage	24 VDC
Output Current	10 A total
Output Channels	3 (isolated)
Ripple & Noise	< 50 mV peak-peak
Efficiency	85% typical
Status LEDs	2 (green/red)
Energy Storage	Input filter capacitors

Power Conversion Details

The ABB Bailey IPFLD24 Power System Module accepts any universal AC input from 100 to 240 volts. You can connect this module to plant power without manual voltage selection switches. The internal switching converter delivers up to 10 amps of continuous DC current. Moreover, the three output channels share the total current capacity automatically. This design provides flexible power distribution for mixed loads of different sizes.

Mechanical Integration and Mounting

You must insert the ABB Bailey IPFLD24 Power System Module carefully into a dual-wide INFI 90 slot. After full insertion, secure the module using the top and bottom metal retaining clips. The module measures exactly 25.5 centimeters in length and 12.0 centimeters in width. Its total weight reaches approximately 1.65 kilograms for stable rack mounting. Furthermore, the two status LEDs indicate normal operation or overload conditions.

Environmental and Storage Guidelines

You should store this ABB Bailey IPFLD24 Power System Module in a dry location away from conductive dust. The module operates reliably between 0°C and +50°C ambient temperature. Likewise, keep the unit away from water spray or excessive vibration. Because the module uses forced convection cooling, ensure proper airflow around the heat sink fins.
