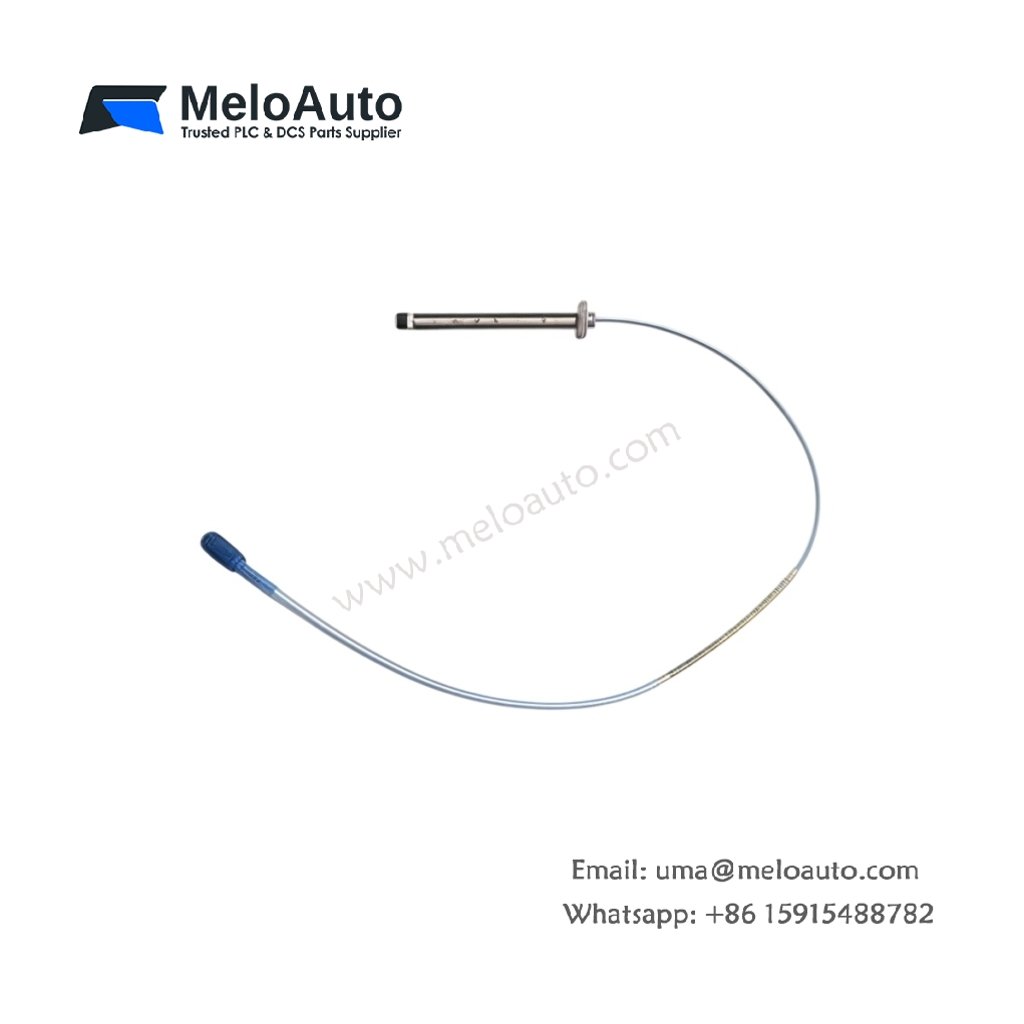

Bently Nevada 330103-00-09-10-02-CN Proximity Probe

The 330103-00-09-10-02-CN belongs to the Bently Nevada 3300 XL 8 mm proximity probe series. Maintenance engineers depend on this sensor for accurate shaft vibration and axial position readings. Consequently, it plays a vital role in turbine and compressor protection systems.

Core Technical Specifications

Parameter	Specification
Probe Tip Diameter	8 mm
Thread Type	3/8-24 UNF
Case Length	90 mm
Unthreaded Length	0 mm
Cable Length	1.0 metre
Connector Type	Miniature coaxial (ClickLoc)
Weight	Approximately 120 g
Operating Temperature	-35 °C to +177 °C
Linear Range	2.0 mm (80 mils)
Recommended Gap	1.27 mm (50 mils)
Frequency Response	0 to 10 kHz
Output Sensitivity	7.87 mV/µm (200 mV/mil)

Operating Principle

This probe applies eddy current technology to measure shaft displacement. The tip generates a high-frequency magnetic field toward the target surface. Shaft movement changes field impedance, and the transducer outputs a proportional voltage signal. Meanwhile, the coaxial cable preserves signal quality across extended routing paths.

Compatibility and Mounting

The 330103-00-09-10-02-CN works with 3300 XL extension cables and Proximitor sensors. A standard miniature coaxial connector ensures reliable mating. Furthermore, the 3/8-24 UNF thread allows direct installation into bearing housings or mounting brackets.

Environmental and Material Notes

Target material selection directly affects measurement accuracy. A-ISI 4140 steel serves as the standard calibration reference. Therefore, alternative alloys may require a correction factor. The stainless steel housing resists oil, moisture, and electromagnetic interference. Additionally, the sealed construction suits harsh industrial environments.
