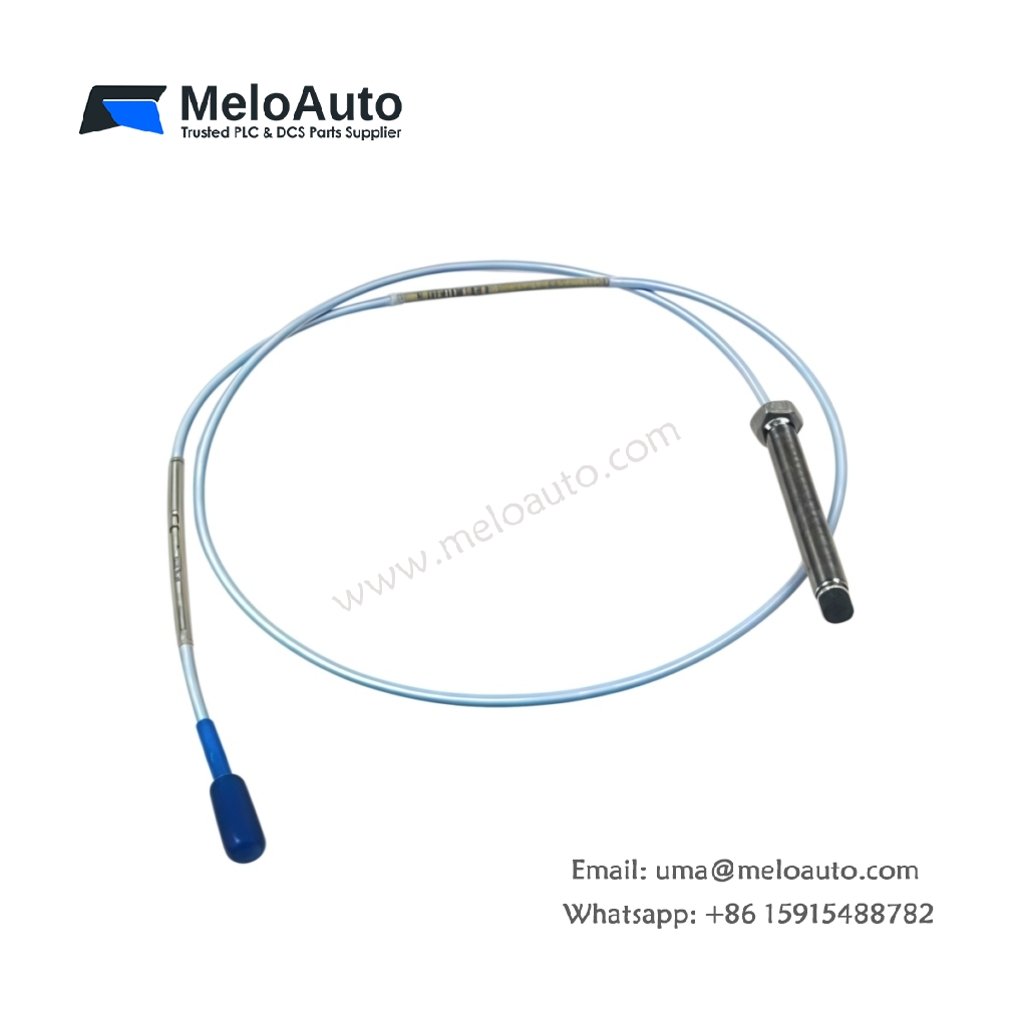

Bently Nevada 330101-00-36-15-02-05 Proximity Probe

The Bently Nevada 330101-00-36-15-02-05 stands as a dependable member of the 3300 XL 8 mm eddy current family. This probe captures accurate shaft displacement and vibration data. Furthermore, it shields vital rotating equipment across power generation and petrochemical plants.

Technical Specifications

Parameter	Value
Model Number	330101-00-36-15-02-05
Series	3300 XL 8 mm
Probe Tip Diameter	8 mm
Total Length	1.5 meters
Weight	Approximately 340 grams
Connector Type	Miniature coaxial ClickLoc
Cable Length	1.5 m integral
Linear Range	2 mm (80 mils)
Recommended Gap	1.27 mm (50 mils)
Sensitivity	7.87 mV/µm (200 mV/mil)
Frequency Response	0 to 10 kHz
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C

Interface and Mounting Details

The probe terminates with a miniature coaxial ClickLoc connector for dependable mating. Consequently, field wiring demands no special tools during installation. A mounting bracket positions the tip at the recommended gap. Meanwhile, a 330130 extension cable links the probe to the 330180 Proximitor sensor.

System Components and Signal Path

A complete measurement chain contains three essential parts. Specifically, these include the probe, extension cable, and Proximitor module. Therefore, technicians must match all three system lengths carefully. The sensing coil inside the tip generates eddy currents on the target surface. Subsequently, the Proximitor converts that signal into a calibrated voltage output.

Power and Environmental Behavior

The Proximitor supplies excitation voltage while drawing roughly 12 watts. Additionally, the probe operates without internal energy storage components. Its sealed construction resists moisture, oil, and mechanical shock. As a result, the unit performs reliably in extreme industrial conditions.
