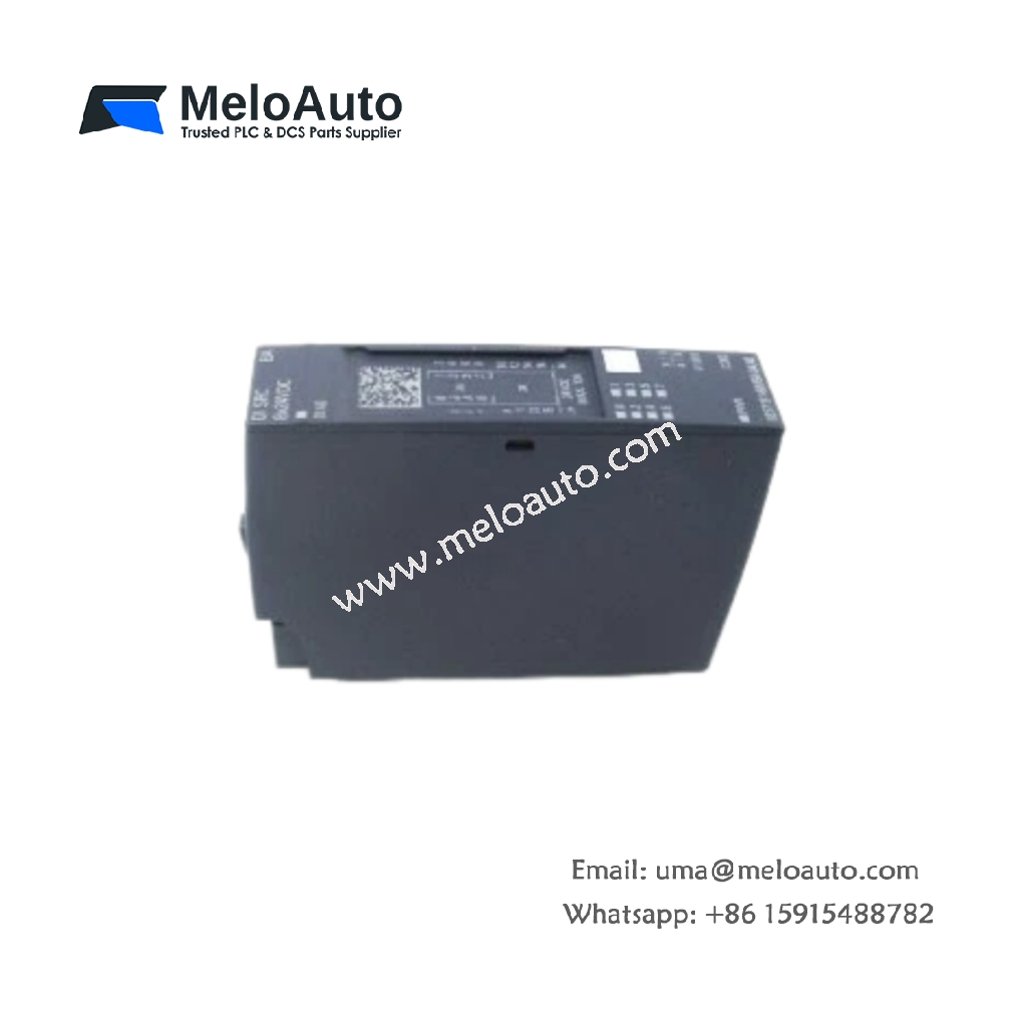

Siemens 6ES7131-6BF60-0AA0 Digital Output Module

Reliable Output Control for ET 200SP Systems

This digital output module drives actuators and indicators in ET 200SP distributed I/O stations. It provides 8 output channels for 24 V DC field devices. Many plants use this unit for solenoid valves, motor contactors, and signal lamps. The module offers diagnostic capabilities for enhanced system availability.

Technical Specifications

Parameter	Specification
Model	6ES7131-6BF60-0AA0
Dimensions	15 mm × 73 mm × 58 mm (W × H × D)
Weight	0.04 kg
Power Supply	24 V DC (from backplane bus)
Power Consumption	0.8 W typical
Output Channels	8 digital outputs (24 V DC)
Output Type	Transistor (MOSFET)
Output Current	0.5 A per channel (continuous)
Output Surge Current	1.0 A for 10 ms
Switching Delay	≤ 200 µs (turn-on), ≤ 200 µs (turn-off)
Output Voltage Drop	≤ 0.8 V at 0.5 A
Output Protection	Short-circuit protection, overload protection
Diagnostic Functions	Short-circuit detection, wire-break detection
Isolation Voltage	500 V AC (channel-to-bus)
Status Indicators	8 LED indicators (one per channel)
Terminal Type	Spring-cage connectors (push-in)
Wire Gauge	0.2 mm² to 1.5 mm²
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cULus, ATEX

Output Channel Configuration

This module integrates 8 transistor-based output channels for 24 V DC loads. Each channel delivers a continuous current of 0.5 A to connected devices. The MOSFET technology ensures fast switching with minimal power loss. Switching delays remain under 200 microseconds for both turn-on and turn-off operations.

Load Driving and Protection Features

The outputs drive solenoid valves, relays, and indicator lamps directly. Short-circuit protection safeguards each channel against wiring faults automatically. Overload detection prevents damage from excessive current draw. These protective features enhance module and system reliability.

Diagnostic Capabilities and Fault Reporting

Onboard diagnostics detect short-circuits and wire-breaks on output channels. The module reports diagnostic information to the ET 200SP master. Users receive immediate alerts for wiring or load failures. This capability reduces mean time to repair significantly.

Power Dissipation and Thermal Performance

Voltage drop across each output remains below 0.8 V at full load. This low drop minimizes heat generation within the module. Power consumption stays at just 0.8 W for all channels. The design permits dense module configurations without thermal issues.

Mechanical Construction and Physical Attributes

This module measures only 15 mm wide and weighs just 0.04 kg. The ultra-slim profile suits space-constrained control cabinets. Spring-cage connectors accept wire gauges from 0.2 mm² to 1.5 mm². Installation uses standard ET 200SP base units for secure mounting.

Status Indication and Visual Feedback

Eight individual LEDs display the real-time state of each output channel. A lit LED confirms the output is actively driving a load. This visibility assists engineers during system commissioning. Technicians can quickly identify faulty channels without external tools.

Switching Speed and Response Times

Turn-on and turn-off delays remain under 200 microseconds each. This fast response supports high-speed control applications. The module handles pulse-width modulation signals effectively. Short switching times improve precision in positioning and timing tasks.

Safety Approvals and Certifications

The 6ES7131-6BF60-0AA0 holds CE, UL, cULus, and ATEX certifications. These approvals permit use in hazardous and industrial environments. Each module undergoes functional testing before shipment. This quality commitment ensures reliable output performance.
