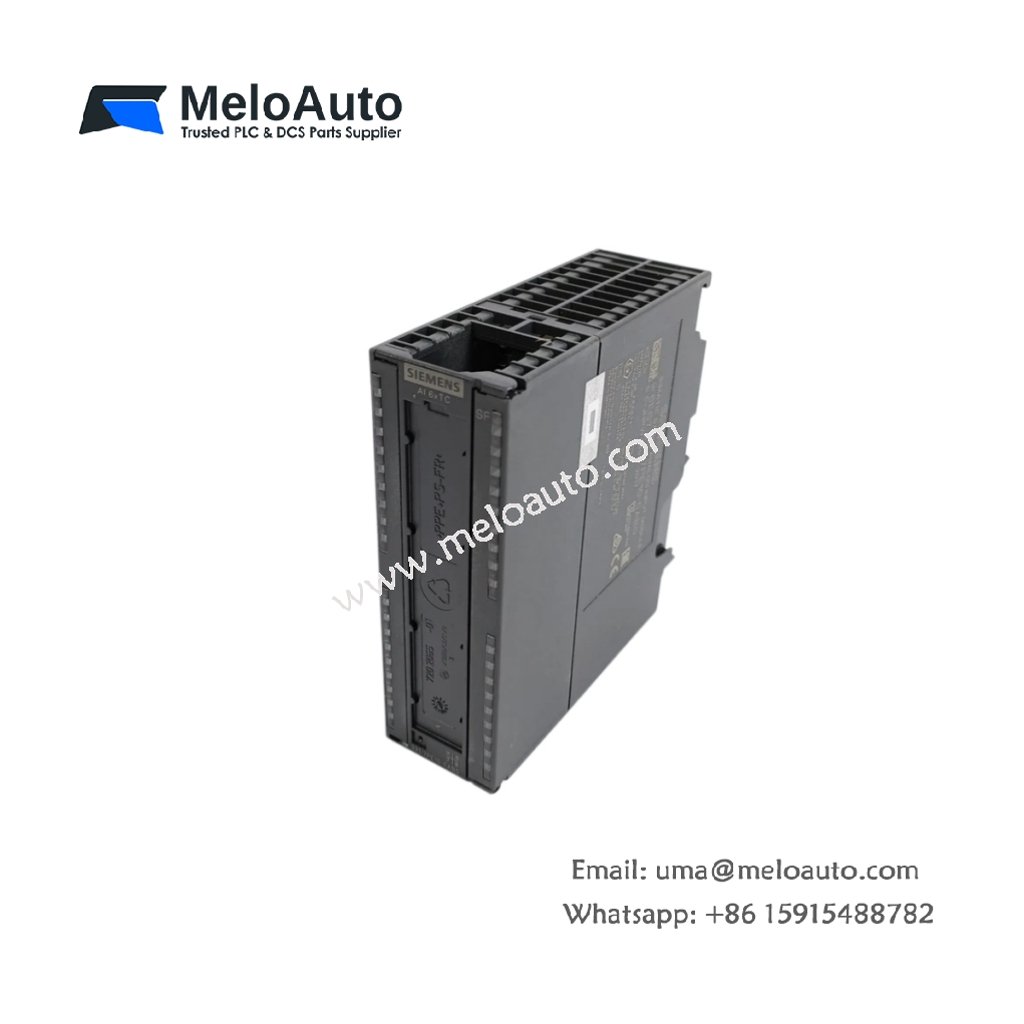

Siemens 6ES7331-7PE10-0AB0 Analog Input Module

High-Precision Analog Measurement for S7-300 Systems

This analog input module captures process signals with exceptional accuracy for S7-300 controllers. It accepts thermocouple, RTD, and voltage inputs from field sensors. Many plants rely on this unit for temperature and pressure measurement applications. The module delivers stable readings under demanding industrial conditions.

Technical Specifications

Parameter	Specification
Model	6ES7331-7PE10-0AB0
Dimensions	125 mm × 130 mm × 70 mm (W × H × D)
Weight	0.35 kg
Power Supply	24 V DC (from backplane bus)
Power Consumption	2.5 W typical
Input Channels	8 analog inputs (configurable)
Input Types	Thermocouple (J, K, T, E, R, S, N), RTD (Pt100, Ni100), mV, V
Input Range (mV)	-80 mV to +80 mV
Input Range (V)	0 V to 10 V
RTD Excitation	0.5 mA constant current
Resolution	16-bit (including sign)
Accuracy	±0.05% of span at 25°C
Temperature Drift	±50 ppm/°C
Sampling Rate	100 Hz (all channels)
Common Mode Rejection	100 dB at 50/60 Hz
Normal Mode Rejection	60 dB at 50/60 Hz
Cold Junction Compensation	Automatic (external sensor)
Diagnostic Functions	Wire-break detection, out-of-range detection
Status Indicators	1 Power LED, 1 Fault LED, 8 Channel Status LEDs
Terminal Type	Screw-type connectors (removable)
Wire Gauge	0.2 mm² to 2.5 mm²
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cULus, FM

Input Configuration and Sensor Compatibility

This module accepts 8 configurable inputs for various sensor types. It handles thermocouples with J, K, T, E, R, S, and N calibrations. RTD measurements use a precise 0.5 mA constant current excitation source. Voltage ranges include ±80 mV for thermocouple signals and 0-10 V for transmitters.

Measurement Accuracy and Signal Integrity

Resolution reaches 16-bit including sign for fine measurement detail. Accuracy of ±0.05% ensures precise process control and monitoring. Temperature drift of only ±50 ppm/°C maintains stability across varying ambient conditions. The module delivers reliable readings over its full operating temperature range.

Noise Rejection and Signal Filtering

Common mode rejection of 100 dB eliminates ground loop interference. Normal mode rejection of 60 dB attenuates power line noise from field wiring. The module filters 50 and 60 Hz frequencies effectively. This performance ensures clean signals in electrically harsh industrial environments.

Sampling Performance and Data Acquisition

All channels sample simultaneously at 100 Hz for consistent data capture. Simultaneous sampling preserves phase relationships between multiple signals. The module buffers converted values for the CPU to read periodically. This approach supports accurate process calculations and mathematical functions.

Diagnostic Functions and Fault Detection

Onboard diagnostics detect wire-breaks and out-of-range conditions on each channel. The module reports diagnostic status to the S7-300 CPU. Engineers receive immediate notification of sensor failures. This capability reduces troubleshooting time and plant downtime.

Mechanical Design and Physical Specifications

This module measures 125 mm wide and weighs only 0.35 kg. Screw-type removable connectors simplify field wiring and maintenance. The compact footprint fits standard S7-300 rack configurations. Installation uses the system backplane for power and communication.

Status Indication and Visual Feedback

A power LED confirms supply voltage to the module. A fault LED indicates diagnostic events requiring attention. Channel status LEDs show normal operation or faults per channel. This feedback assists operators during system commissioning and troubleshooting.

Certifications and Quality Assurance

The 6ES7331-7PE10-0AB0 holds CE, UL, cULus, and FM certifications for global use. These approvals confirm compliance with international safety standards. Each module undergoes comprehensive factory testing. This quality process ensures reliable analog signal acquisition.
