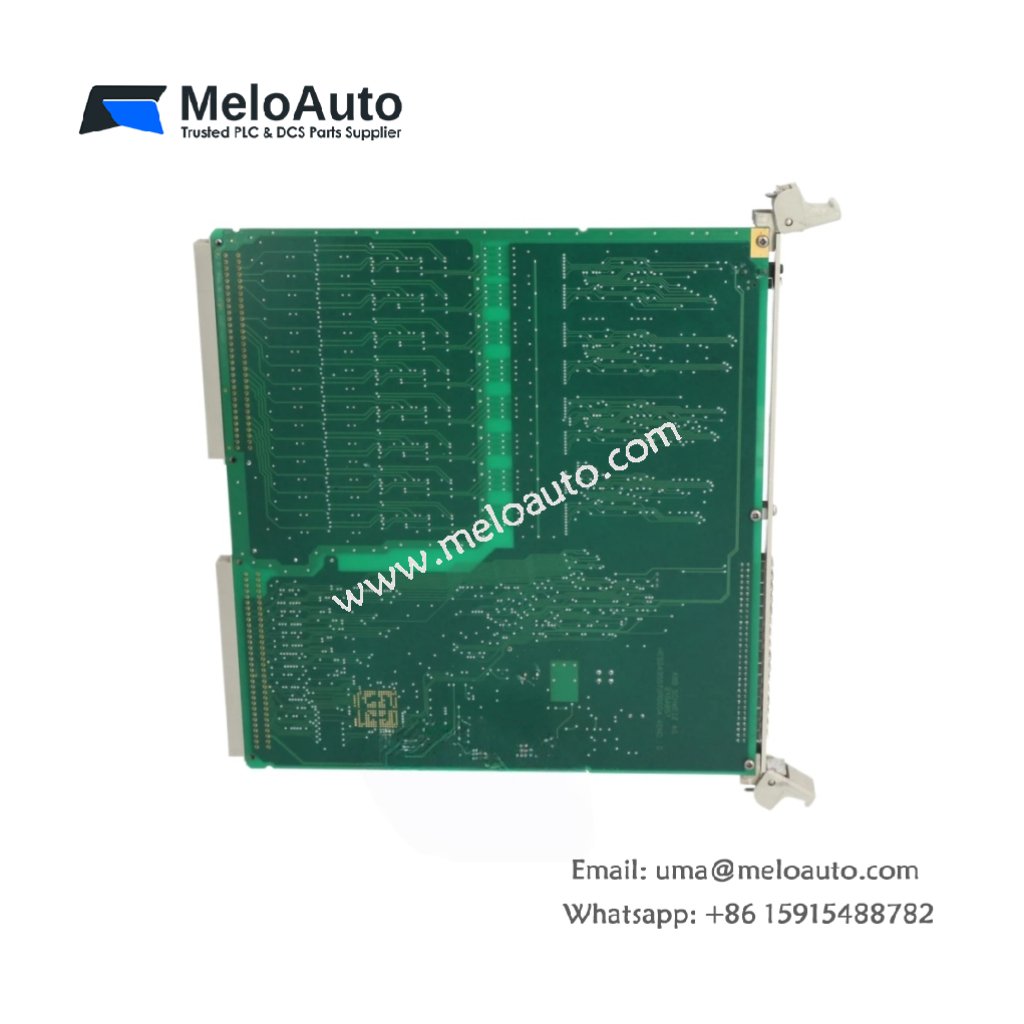

ABB 216AB61 Digital Output Unit

This digital output unit drives field actuators from ABB distributed control systems. You will find the ABB 216AB61 Digital Output Unit controlling solenoid valves, contactors, and alarm devices. Its sixteen channels provide high-density discrete output capability for industrial applications.

Technical Specifications

This unit contains sixteen solid-state output channels for reliable switching. You can also locate two LED bars for visual status indication of all outputs. The ABB 216AB61 Digital Output Unit stores no battery energy for configuration retention. Instead, it uses non-volatile memory for all output state settings. Therefore, this unit never requires any routine battery replacement.

Output Control Details

The ABB 216AB61 Digital Output Unit draws its logic power from the system backplane. You must provide external 24 VDC field power for the output loops. Each channel switches independently under processor command without interaction. Moreover, the short circuit protection resets automatically after fault removal. This design prevents damage to both the unit and connected field devices.

Mechanical Integration and Mounting

You must insert the ABB 216AB61 Digital Output Unit carefully into any standard Advant rack slot. After full insertion, secure the unit using the top and bottom metal retaining clips. The unit measures exactly 25.5 centimeters in length and 3.2 centimeters in width. Its total weight reaches approximately 0.52 kilograms for straightforward handling. Furthermore, the two LED bars show the real-time status of all sixteen outputs at once.

Environmental and Storage Guidelines

You should store this ABB 216AB61 Digital Output Unit in an anti-static bag away from moisture. The unit operates reliably between 0°C and +60°C ambient temperature. Likewise, keep the unit away from conductive dust or corrosive atmospheres. Because the unit uses solid-state switching only, it requires zero regular maintenance over its service life.
