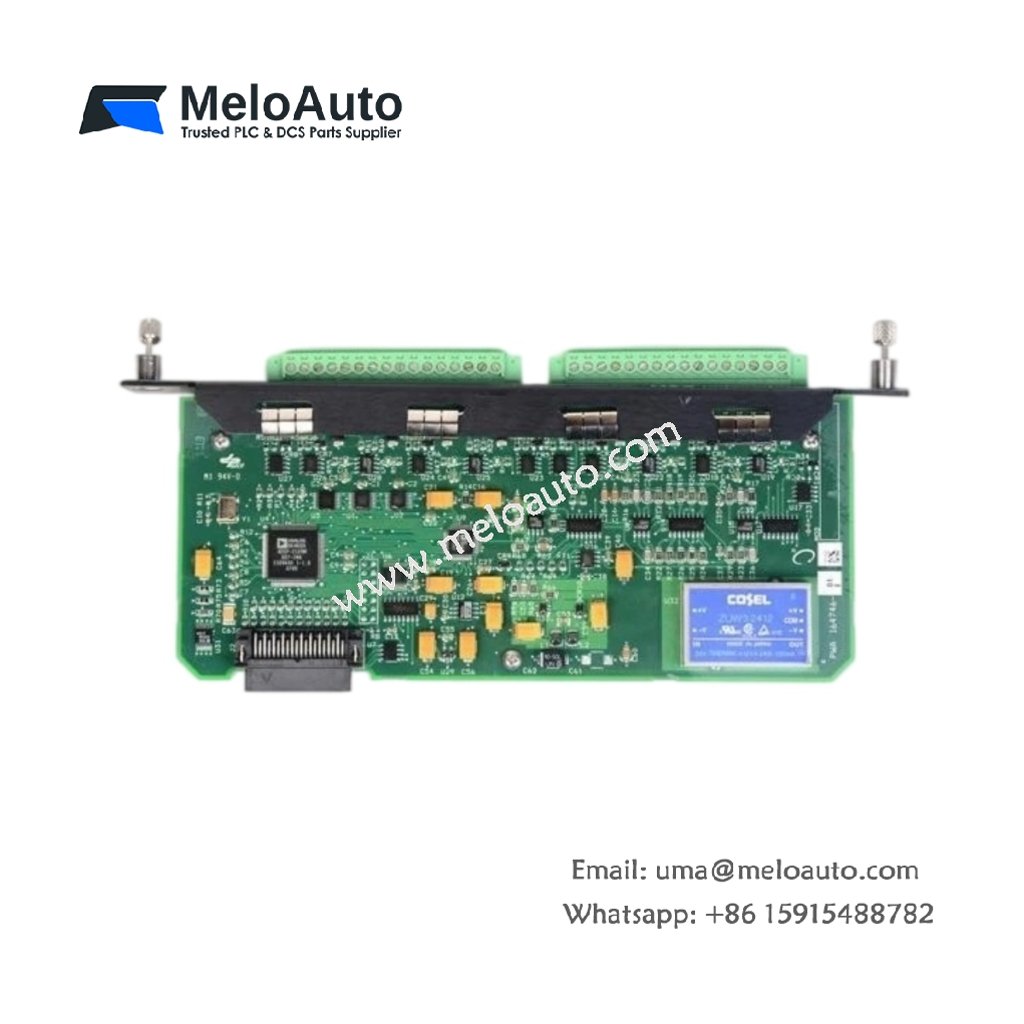

Bently Nevada 164746-01 Seismic Direct Input Card

Direct Seismic Signal Acquisition with the 164746-01

The 164746-01 accepts seismic transducer signals directly inside Bently Nevada machinery monitoring racks. This input card links velocity sensors to the monitor electronics without intermediate conditioning. Reliability engineers therefore apply it to casing vibration channels on turbines and compressors. Its full-width board fits standard rack slots without extra mounting hardware.

Detailed Technical Parameters

Input fidelity defines the 164746-01, because the front end accepts seismic signals across a wide amplitude range. The card filters noise before passing readings to the monitor cards. Meanwhile, the backplane connector carries conditioned data across the rack. Review the essential specifications in the table below.

Parameter	Specification
Function	Direct seismic transducer input for monitoring racks
Input signals	Seismic velocity transducer inputs
Dimensions (W × H × D)	40 × 220 × 250 mm
Weight	Approximately 1.0 kg
Interface	Rack backplane connector plus front terminal connections
Component count	Input amplifier stage plus filter board
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 65 °C

Integration into Monitoring Racks

The 164746-01 fits into a standard rack slot and connects through the backplane connector. Commissioning engineers land seismic sensor wiring on the front terminals. Consequently, casing vibration channels return to service quickly after card replacement. The input stage samples transducer signals within a fixed interval. Furthermore, the shielded front end resists interference from nearby power cables and drives.

Why Plants Choose This Card

Many power stations still operate Bently Nevada racks for their proven machine protection. Hence, the 164746-01 serves as a dependable spare for keeping seismic channels online. Its standardized board format simplifies stock management across multiple sites. In addition, the direct input design removes extra conditioning hardware from the cabinet. This card keeps casing vibration data accurate and plant operations on schedule.
