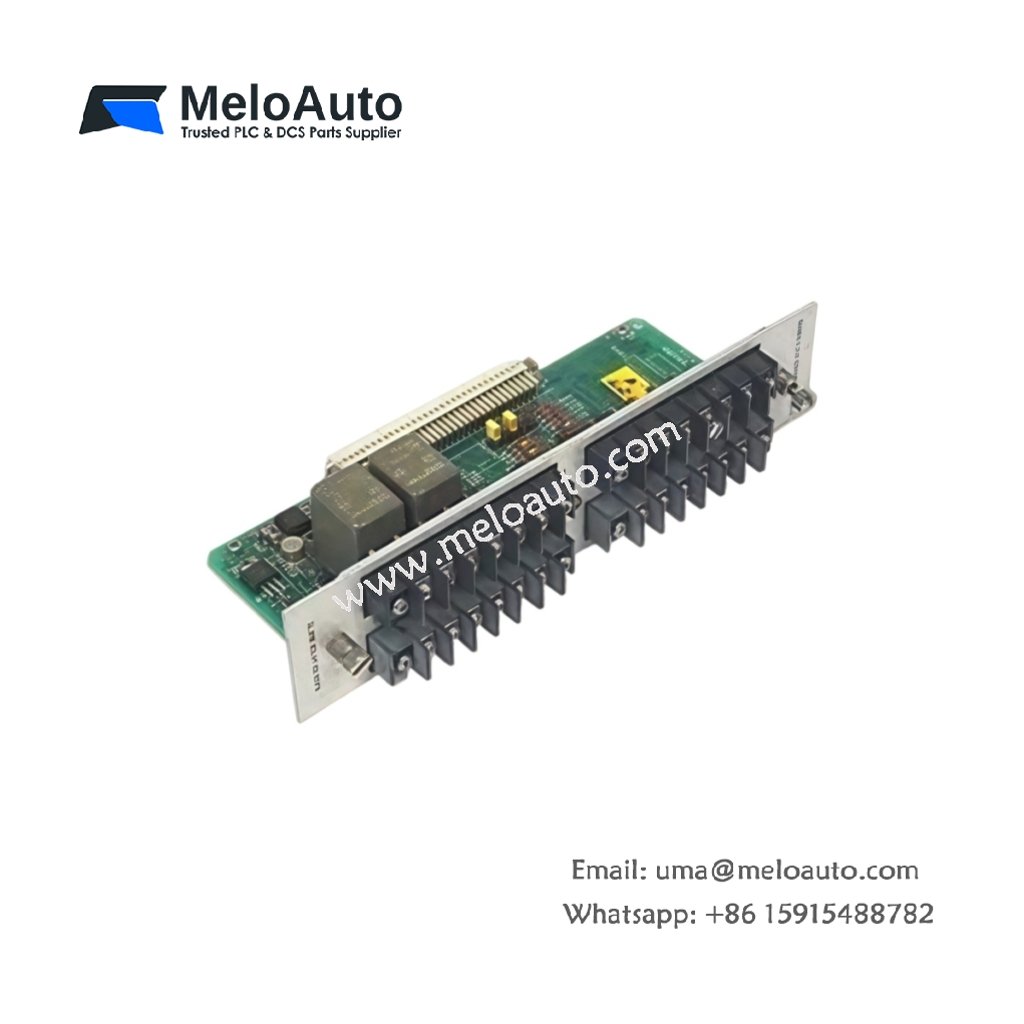

Bently Nevada 79512-03 Proximitor Seismic Monitor Assembly

Dual Measurement with the 79512-03

The 79512-03 combines proximity and seismic monitoring on a single Bently Nevada assembly. This monitor handles shaft displacement signals alongside casing vibration inputs. Reliability engineers therefore apply it to turbines where both radial and structural measurements matter. Its full-width board fits standard rack positions without extra mounting hardware.

Detailed Technical Parameters

Channel flexibility defines the 79512-03, because the input stage accepts both proximity probe and seismic transducer signals. The module filters noise before converting readings into vibration values. Meanwhile, front-panel indicators reveal channel status during walkdown checks. Review the essential specifications in the table below.

Parameter	Specification
Function	Combined proximity and seismic monitoring assembly
Input signals	Proximity probe plus seismic transducer inputs
Dimensions (W × H × D)	40 × 220 × 250 mm
Weight	Approximately 1.3 kg
Interface	Rack backplane connector plus front transducer terminals
Component count	Dual input amplifier stage plus processing board
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 65 °C

Integration into Monitoring Racks

The 79512-03 fits into a standard rack slot and connects through the backplane connector. Commissioning engineers verify probe gaps and transducer sensitivity during startup procedures. Consequently, protection channels return to service quickly after assembly replacement. The board samples both input types within a fixed interval. Furthermore, the isolated front end resists interference from nearby power cables and drives.

Why Plants Choose This Assembly

Many power stations still operate Bently Nevada racks for their proven machinery protection. Hence, the 79512-03 serves as a dependable spare for keeping combined channels online. Its standardized board format simplifies stock management across multiple sites. In addition, the dual input design reduces spare-part inventory requirements. This assembly keeps shaft and casing measurements accurate and plant operations on schedule.
