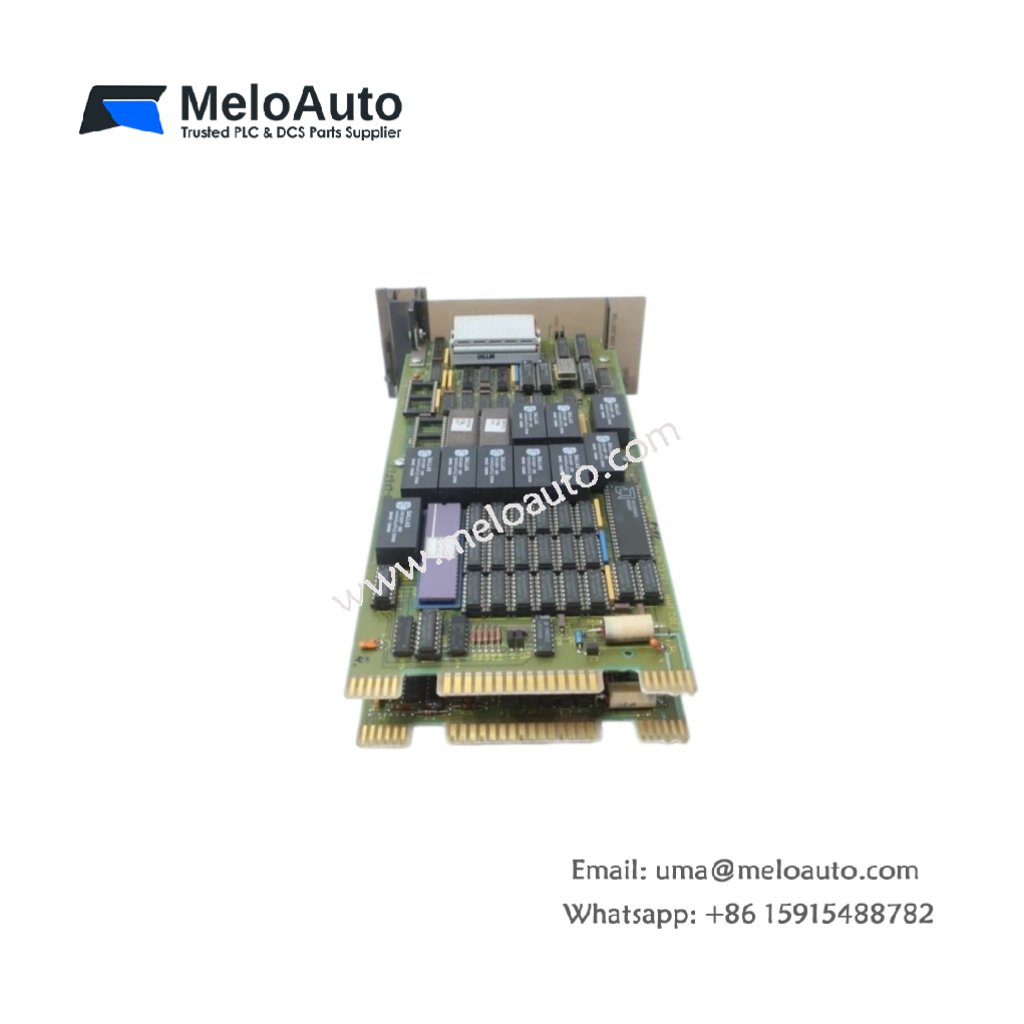

ABB Bailey M5 DEC BC Digital Controller

Controller Overview

This digital electronic controller provides single-loop PID regulation for process applications. You can install ABB Bailey M5 DEC BC directly into Bailey 60 Series instrument racks. The unit accepts analog inputs and generates analog outputs for final control elements. It operates standalone or communicates with higher-level systems.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	150 mm x 75 mm x 120 mm
Weight	0.72 kg
Control algorithm	Digital PID with auto-tuning
Input channels	2 analog (0-10V or 4-20 mA)
Output channels	1 analog (4-20 mA) + 2 relay
Input resolution	12-bit (0-4095 counts)
Output resolution	11-bit (0-2047 counts)
Sample rate	100 ms (10 Hz)
Setpoint range	-10% to +110% of input span
Communication port	RS-485 (Modbus RTU)
Display	4-digit LED, 7-segment
Configuration method	Front panel push-buttons
Power supply	24V DC or 110V AC (selectable)
Total onboard components	248 discrete parts
Energy storage type	Electrolytic and tantalum capacitors
Energy storage rating	680 µF at 35V DC
Operating temperature	-10°C to +55°C

Board Layout and Components

The PCB places the microcontroller at the center for efficient processing. A 4-digit LED display mounts on the front panel for operator feedback. Moreover, 248 discrete components include analog input filters and output drivers. Electrolytic capacitors store bulk energy for output loop power. Consequently, the controller maintains 4-20 mA output even during brief power dips.

Installation Process

You can mount ABB Bailey M5 DEC BC into any Bailey 60 Series instrument rack slot. The rear terminal block accepts power, input, and output field wiring. Furthermore, the front panel push-buttons configure all control parameters without a computer. The LED display shows process variable, setpoint, and output values clearly.

Performance Advantages

This controller executes PID loops at a 100-millisecond sample rate. The auto-tuning feature calculates optimal PID gain values automatically. Therefore, commissioning takes minimal time and engineering effort. The Modbus RS-485 port also allows remote setpoint changes and data logging.

Safety and Compliance

ABB Bailey M5 DEC BC meets CE and RoHS industrial standards. The board discharges stored energy below 4V within six seconds. Hence, technicians face minimal electrical risk during installation or replacement.
