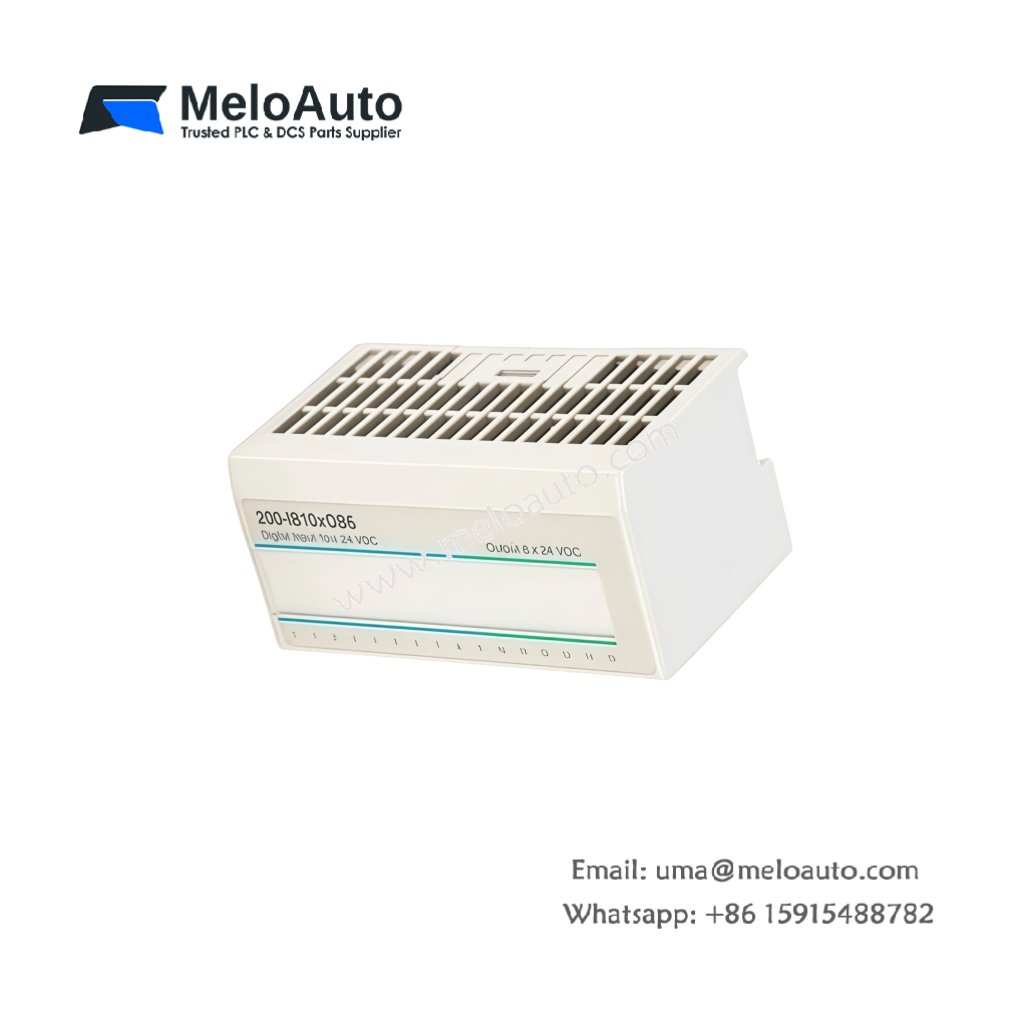

ABB 200-IB10xOB6 Digital Input/Output Combo Unit for Distributed I/O

The 200-IB10xOB6 combines digital inputs and outputs in a single compact module. This combo unit saves valuable space in ABB distributed I/O racks. You can use it for small machine control or simple sequencing tasks.

Key Technical Parameters

The table below lists all essential technical specifications for this digital I/O combo unit.

Physical Characteristics and Installation

This I/O combo unit weighs approximately 0.35 kg for standard rack mounting. Its dimensions measure 160 mm x 120 mm x 45 mm for distributed I/O chassis. First, slide the 200-IB10xOB6 into a free slot in your I/O rack. Then, connect your sensors and actuators to the screw terminals. Finally, secure the module using the built-in locking latches. LED indicators show the real-time status of every input and output channel.

Input Specifications and Signal Detection

The 200-IB10xOB6 provides 10 digital input channels for field sensors. Each channel accepts 24V DC nominal signals from switches and proximity sensors. The module draws only 7 mA per channel for reliable detection. A 2 ms response time captures standard machine events reliably. Optocouplers isolate every input from the internal logic circuits for safety.

Output Specifications and Protection Features

This combo unit delivers 6 transistor outputs for driving small actuators. Each output supplies up to 0.5 A at 24V DC. Built-in short-circuit protection prevents damage during wiring faults. Overload protection shuts down the affected output automatically. The 200-IB10xOB6 responds to output commands in just 1 ms. The total current consumption reaches 150 mA without connected loads.
