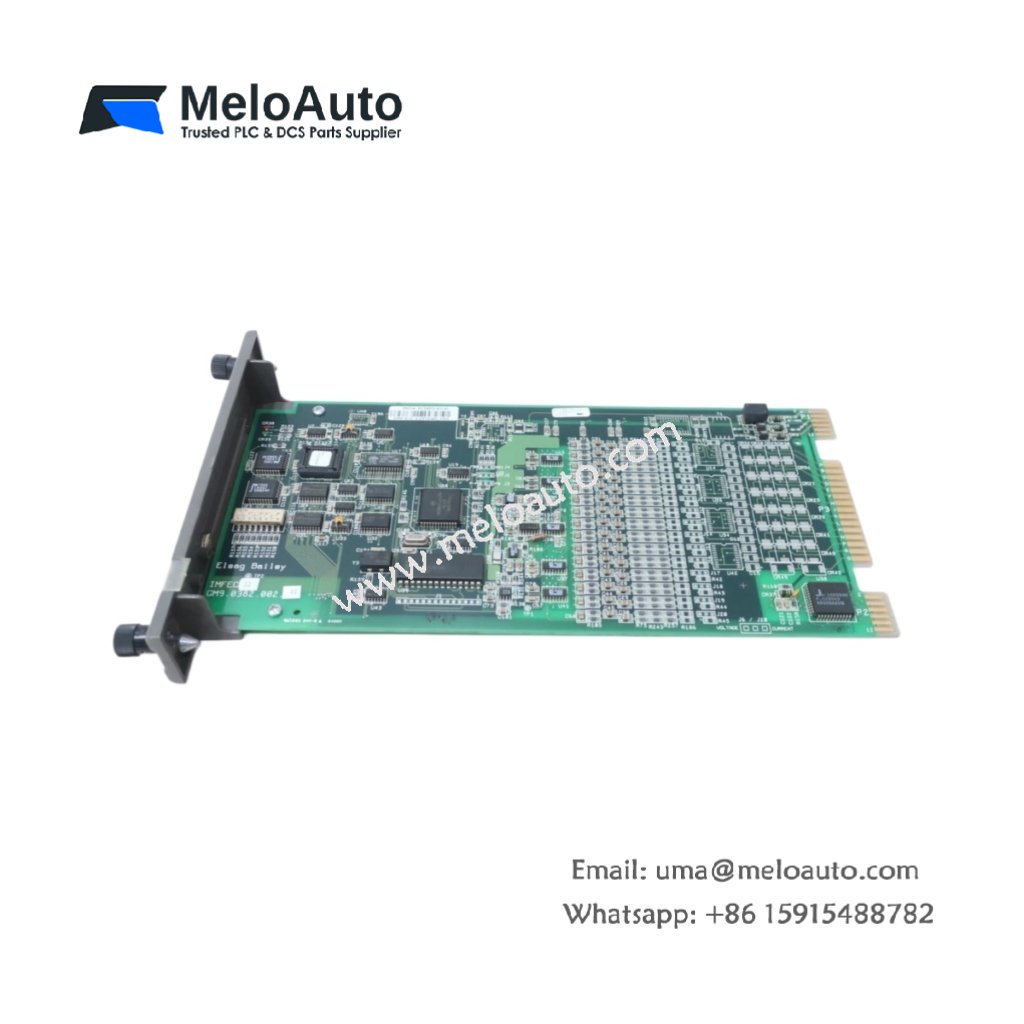

ABB Bailey IECAB12 Fieldbus I/O Module

This fieldbus I/O module connects remote instrumentation to ABB Bailey INFI 90 systems. The ABB Bailey IECAB12 processes digital and analog signals from distributed field devices. Twelve configurable channels accept either discrete or analog inputs based on application needs. Consequently, plant engineers can monitor sensors across wide plant areas using a single module.

Technical Specifications of the Fieldbus I/O Module

The ABB Bailey IECAB12 measures 180 mm in width and 240 mm in height. Its depth reaches 45 mm for standard INFI 90 rack mounting. The module weighs approximately 0.68 kg including all I/O and communication circuitry. A single front panel LED array shows network status, power, and per-channel activity. The front side features two 9-pin D-sub connectors for RS-485 fieldbus communication. This design stores minimal energy in small decoupling capacitors only. Therefore, the module contains no batteries or large energy storage elements.

Parameter	Specification
Brand	ABB Bailey
Full Model	IECAB12
Category	Fieldbus I/O Module
Dimensions (W x H x D)	180 mm x 240 mm x 45 mm
Weight	Approximately 0.68 kg
Configurable Channels	12 (analog or digital)
Analog Input Range	4-20mA or 0-10V
Digital Input Range	24V DC
Resolution	12-bit for analog channels
Fieldbus Protocol	RS-485 based
Communication Ports	2 x 9-pin D-sub
Terminal Type	Removable screw blocks
Energy Storage	Minimal (decoupling only)
Supply Voltage	24V DC external

Functional Features and Configuration Flexibility

The ABB Bailey IECAB12 allows you to configure each channel independently for analog or digital use. You can mix 4-20mA loops with discrete 24V sensors on the same module. The onboard processor scans all channels and reports data over the fieldbus network. Integrated diagnostics detect open circuits and short conditions for analog inputs. Consequently, operators receive immediate alerts for sensor wiring failures.

Installation and System Integration

You must mount this I/O module into a standard INFI 90 rack slot. The ABB Bailey IECAB12 connects to the fieldbus network through the front D-sub ports. A removable terminal block accepts field wiring from 14 to 22 AWG. The module automatically registers with the INFI 90 controller upon power-up. Always verify network addressing before connecting to the active fieldbus segment.

Maintenance and Operational Benefits

Because the ABB Bailey IECAB12 stores no battery-backed data, it needs no periodic battery changes. Technicians can replace the module without losing any configuration settings. The hot-swappable design allows removal while the fieldbus network remains active. Consequently, maintenance causes minimal disruption to plant operations.
