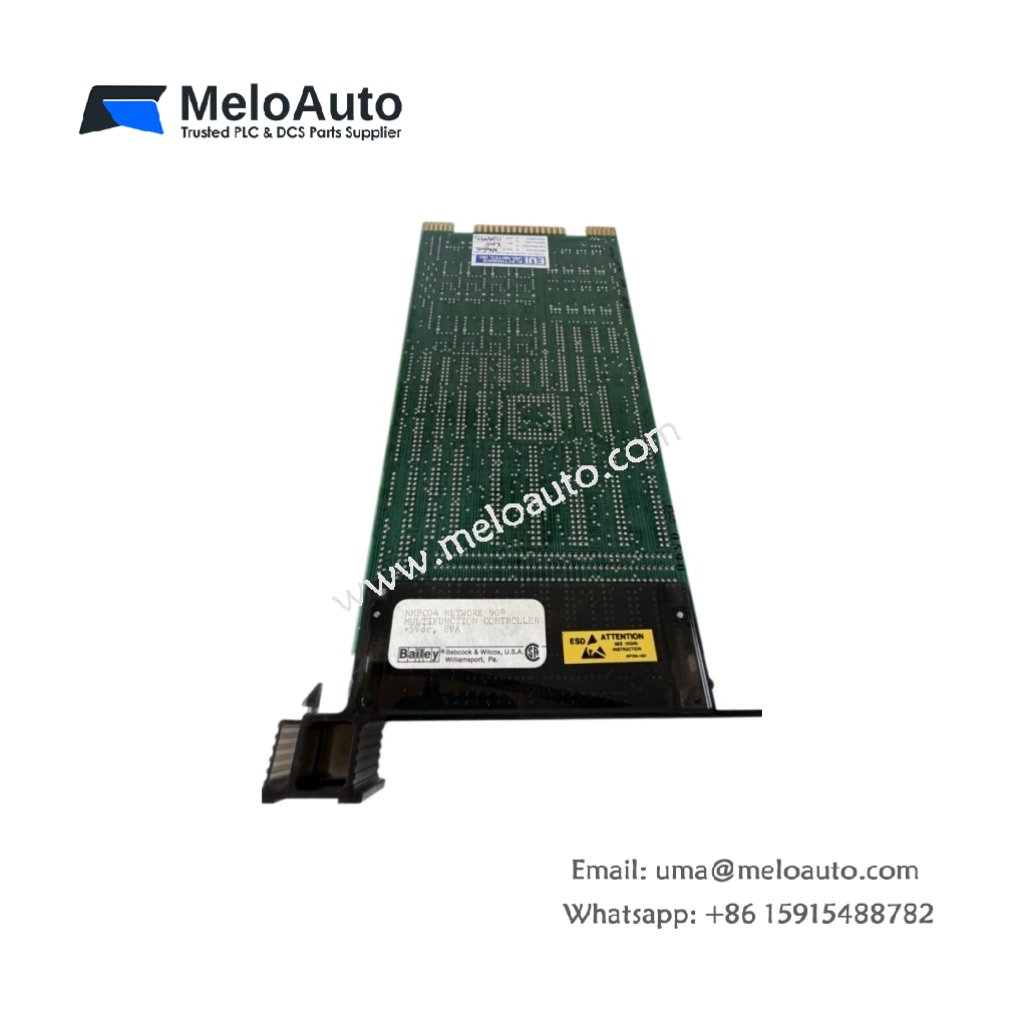

ABB Bailey NMFC04 Multi-Function Controller

This multi-function controller handles analog and digital control loops for INFI 90 systems. The ABB Bailey NMFC04 executes PID algorithms, logic sequencing, and math calculations simultaneously. A dedicated 32-bit processor scans all configured functions without load penalties. Consequently, plant engineers can replace multiple single-loop controllers with one NMFC04 module.

Technical Specifications of the Multi-Function Controller

The ABB Bailey NMFC04 measures 180 mm in width and 240 mm in height. Its depth reaches 45 mm for standard INFI 90 rack mounting. The module weighs approximately 0.75 kg including all processing and I/O circuitry. A single front panel LED array shows run status, fault conditions, and communication activity. The front side features two 9-pin D-sub connectors for peer-to-peer networking. This design stores minimal energy in small decoupling capacitors only. Therefore, the module contains no batteries for program retention.

Parameter	Specification
Brand	ABB Bailey
Full Model	NMFC04
Category	Multi-Function Controller
Dimensions (W x H x D)	180 mm x 240 mm x 45 mm
Weight	Approximately 0.75 kg
Processor	32-bit dedicated controller
Control Loops	16 PID loops maximum
Analog Inputs	8 channels (via I/O bus)
Digital Inputs	16 channels (via I/O bus)
Analog Outputs	4 channels (via I/O bus)
Digital Outputs	8 channels (via I/O bus)
Scan Rate	10 ms to 100 ms (configurable)
Communication Ports	2 x 9-pin D-sub (RS-485)
Energy Storage	Minimal (decoupling only)
Supply Voltage	24V DC from backplane

Functional Features and Control Capabilities

The ABB Bailey NMFC04 executes up to sixteen independent PID loops with auto-tuning. You can configure cascade, feedforward, and ratio control strategies using standard function blocks. The module also performs logic sequencing with up to 256 steps per sequence. Full math support includes square root, moving average, and rate limiting calculations. Consequently, this controller handles complex process applications without external computing.

Installation and System Integration

You must install this multi-function controller into a standard INFI 90 rack slot. The ABB Bailey NMFC04 communicates with I/O modules through the system backplane. A PC-based configuration tool allows offline programming and simulation. The module downloads all control strategies from Flash memory upon power-up. Always verify loop timing before commissioning critical control applications.

Maintenance and Operational Benefits

Because the ABB Bailey NMFC04 stores control programs in Flash memory, it needs no battery backup. Technicians can replace the module without reloading any configuration data. The module retains all PID tuning constants and sequence steps indefinitely after programming. Consequently, this controller offers reliable, maintenance-free operation for years of service.
