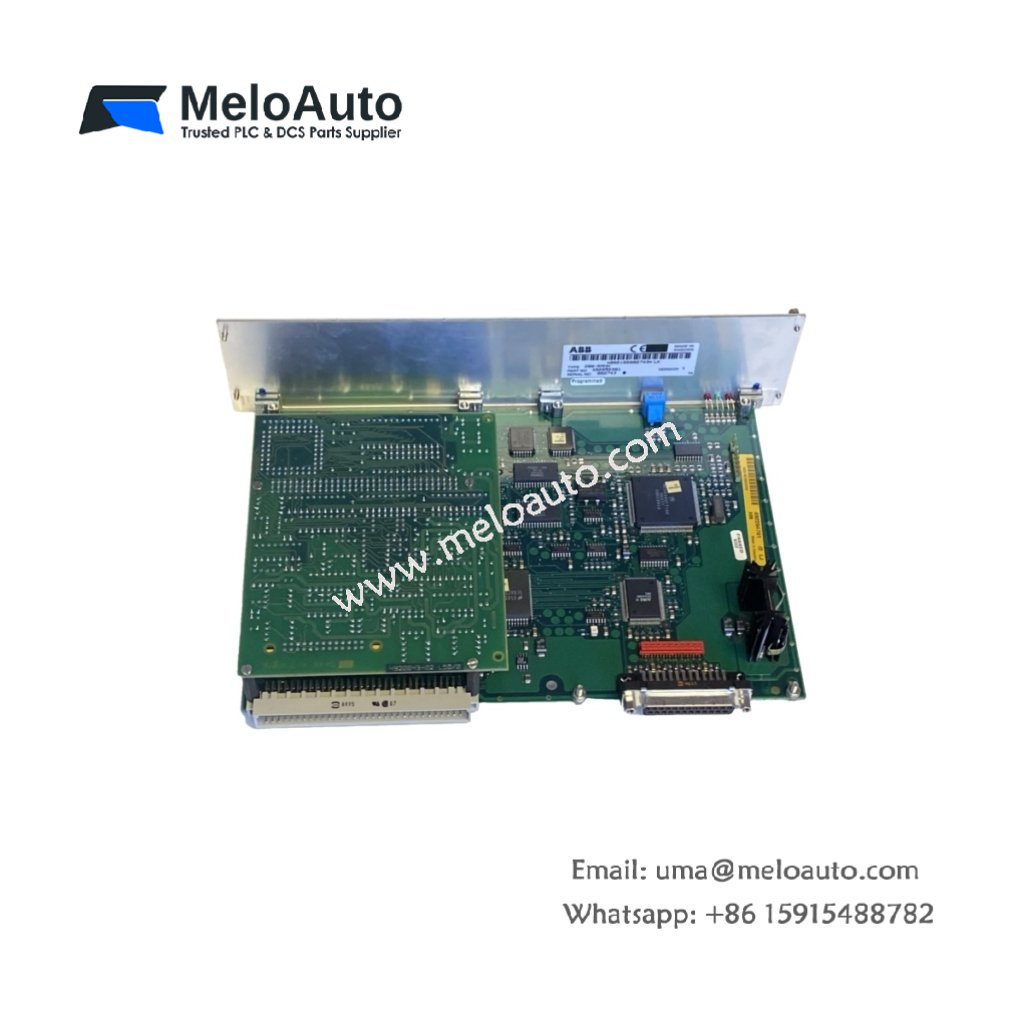

ABB 200-RANN Rack Adaptor Board

The 200-RANN adapts standard Procontic modules to different backplane types. This board provides mechanical and electrical interfacing between racks. It ensures proper signal routing and power distribution.

Key Technical Specifications

Parameter	Value
Number of Slots	8 (for Procontic modules)
Backplane Type	Passive with power rails
Current Capacity	5 A total per board
Supply Voltage	24V DC ±20%
Interface Connector	64-pin DIN 41612
Board Dimensions	25.0 cm x 16.0 cm x 1.5 cm
Weight	0.42 kg (0.93 lbs)
Component Count	24 discrete components
Energy Storage	None (passive board)
Operating Temperature	0°C to 55°C

Physical Dimensions and Component Layout

This board measures 25.0 cm in length and 16.0 cm in width. Its total thickness reaches 1.5 cm including edge connectors. 200-RANN weighs 0.42 kg for secure rack mounting. You will find 24 discrete components on a four-layer PCB.

Moreover, the board includes a heavy-duty bus bar for power distribution. This bus bar carries 24V DC and 0V to all eight slots. Gold-plated edge contacts ensure reliable connections.

Slot Configuration and Backplane Design

The passive backplane accommodates 8 Procontic modules in a single row. Each slot uses a 64-pin DIN connector for reliable contact. A separate connector links the board to the main rack. The PCB traces maintain signal integrity across all slots.

Power Distribution and Wiring

A terminal block at the edge accepts incoming 24V DC power. Two additional terminals provide +24V and 0V for external devices. Each slot receives protected power through the backplane traces. LED indicators show power status for the entire board.

Typical Application Scenarios

You can deploy 200-RANN in ABB Procontic systems needing rack adaptation. It also works well for custom enclosures and retrofit projects. This board adapts standard modules to non-standard backplanes. Its 8-slot capacity suits small to medium automation racks.
