Technical Specifications and Unit Design

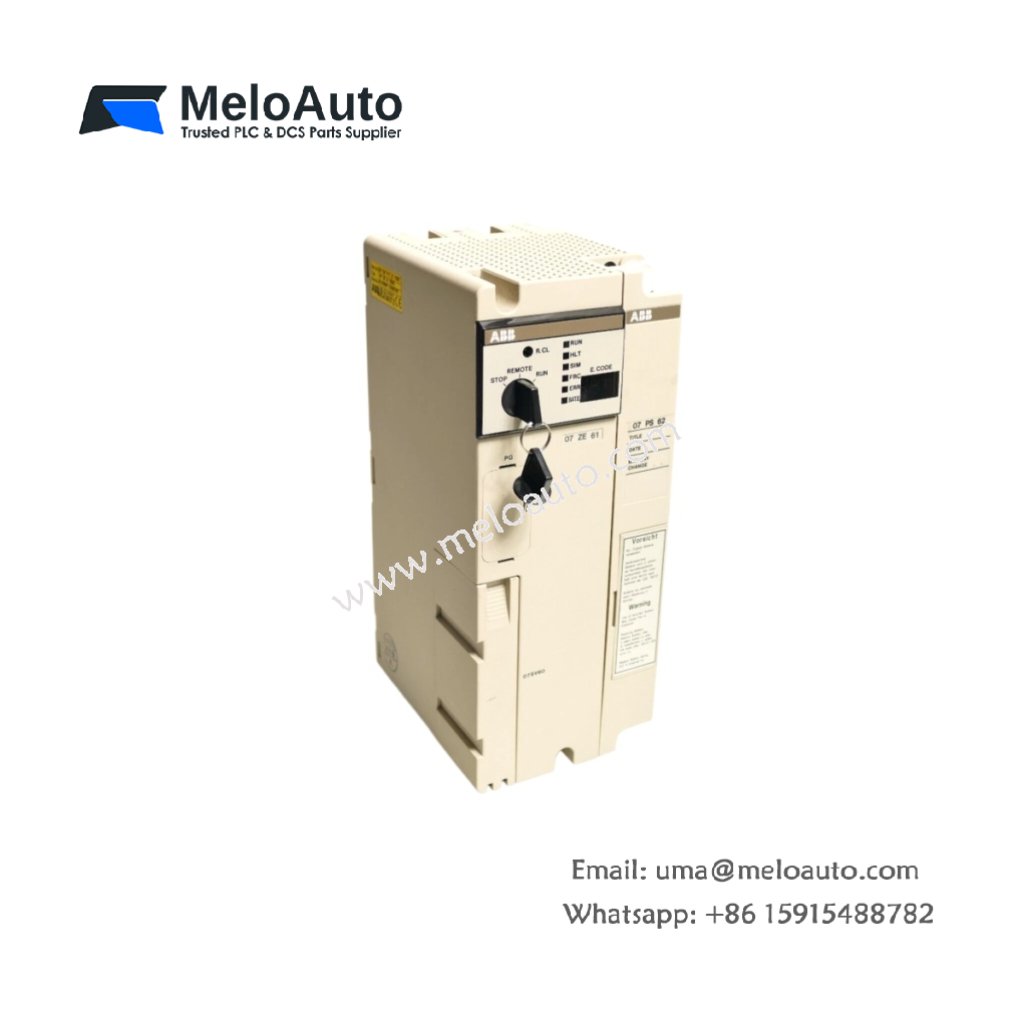

This Procontic central unit serves as the main processor for ABB Procontic CNC systems. The ABB 07 ZE 62 R101 executes part programs and manages all machine functions. You can install this unit into any standard Procontic rack slot position. Its integrated design combines CPU, memory, and axis control in one module. The unit weighs approximately 1.2 kilograms. Its dimensions measure 27 cm in height, 23 cm in width, and 21 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 07 ZE 62 R101 |
| Category | Procontic Central Unit / CNC Processor Module |
| Weight | 1.2 kg |
| Height | 27 cm |
| Width | 23 cm |
| Depth | 21 cm |
| Processor Type | 16-bit (multiprocessor architecture) |
| Program Memory | 64 KB (EPROM) |
| Part Program Memory | 32 KB (battery-backed RAM) |
| Data Memory | 16 KB (battery-backed RAM) |
| Number of Control Axes | 3 axes (simultaneous) |
| Axis Control Type | Digital servo interface |
| Maximum Feed Rate | 100 meters per minute |
| Resolution | 0.001 mm (0.0001 inch) |
| PLC Function | 128 inputs / 96 outputs |
| Energy Storage | Lithium battery for RAM backup |
| Component Count | Single PCB with CPU, axis control, and I/O circuits |
Processing Capabilities and Axis Control
The central unit executes part program blocks with high-speed interpolation. It manages three axes simultaneously for complex contouring operations. The ABB 07 ZE 62 R101 provides linear, circular, and helical interpolation functions. The unit includes full look-ahead for smooth acceleration at high feed rates. It also performs tool radius compensation and cutter length offset calculations. A green LED indicates proper processor operation and program execution. The unit supports both absolute and incremental programming modes.
PLC Functions and Machine Interface
The central unit integrates programmable logic control for machine auxiliary functions. It handles spindle control, coolant activation, and tool changer sequencing. The ABB 07 ZE 62 R101 supports up to 128 digital inputs and 96 digital outputs. The PLC logic executes independently from the part program processing. You can program the PLC using ladder logic or instruction list languages. A yellow LED flashes when the PLC detects any machine fault condition. The unit stores PLC program in battery-backed RAM permanently.
Installation and Operational Guidelines
You must insert this unit into a dedicated slot in the Procontic rack. The backplane supplies 5V and 24V DC power to the unit automatically. The ABB 07 ZE 62 R101 draws approximately 500 mA from the 5V supply rail. The lithium battery retains RAM data for up to three years without power. You should replace the battery every five years for reliable operation. The unit stores no program in RAM when you remove the battery. Therefore, keep the application backup on your programming computer. The operating temperature ranges from 0°C to 50°C.
