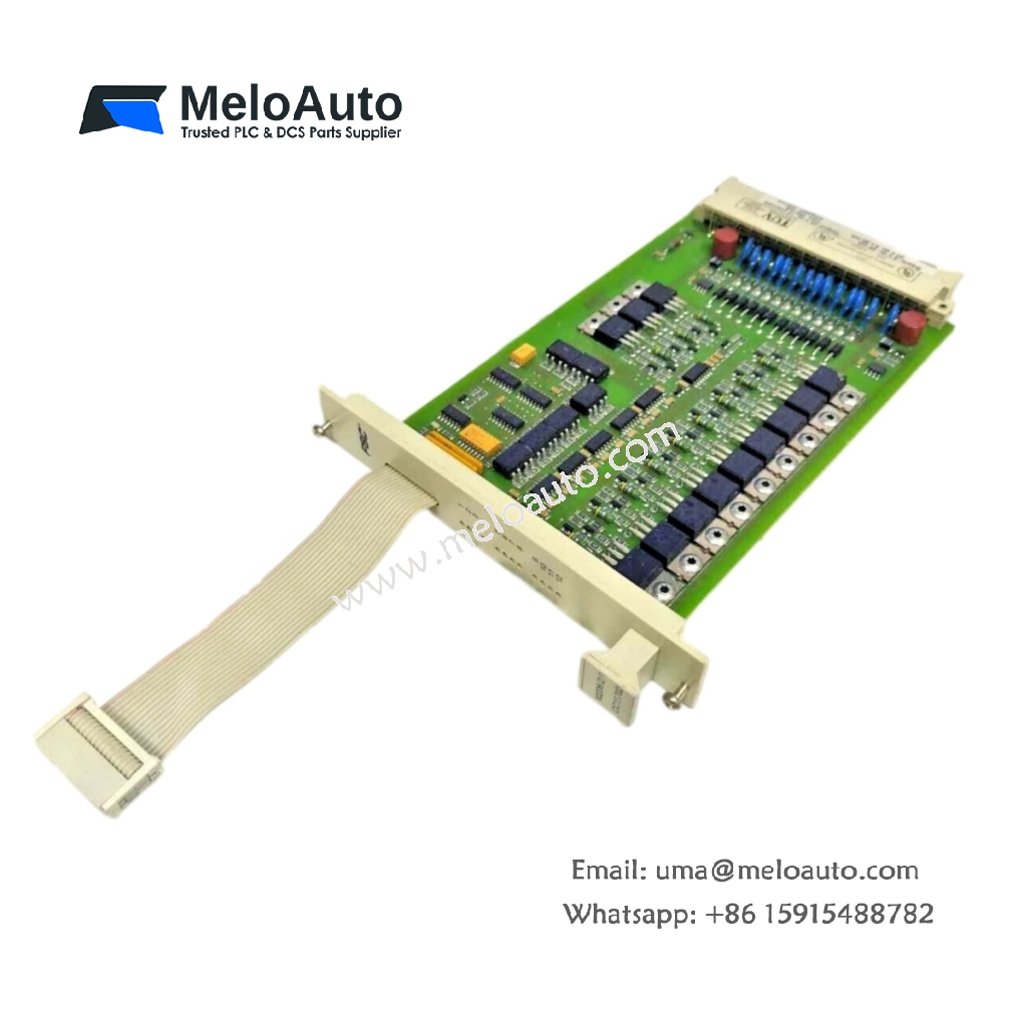

Honeywell 10206/2/1 Analog Output Module

The 10206/2/1 analog output module from Honeywell drives analog field actuators inside industrial burner and safety control systems. Plant engineers install this module when valves, positioners, and dampers need accurate current or voltage signals. Consequently, it delivers stable output levels that keep combustion and process loops within specification.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 10206/2/1 module.

Parameter	Specification
Product Type	Analog Output Module
Compatibility	Honeywell burner and safety control systems
Dimensions	Approximately 200 mm x 130 mm x 30 mm
Weight	Approximately 0.45 kg (1.0 lbs)
Mounting	Cabinet backplane or card cage slot
Interface	Backplane bus and analog output terminals
Connectors	Multiple edge connectors and terminal blocks
Component Count	Multiple D/A converters, output drivers, and filter circuits
Energy Storage	On-board capacitors for output stabilization
Output Channels	Multiple analog output points
Signal Range	Configurable current and voltage outputs
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module converts digital commands into precise analog output signals for field actuators. Therefore, it controls valve position, damper angle, and other modulating devices. The 10206/2/1 also isolates each channel to protect backplane circuitry from field faults. Meanwhile, its onboard energy storage stabilizes output levels against transient electrical noise.

Installation and Handling Notes

Always verify signal type and range before wiring the 10206/2/1 to field instruments. In addition, check that channel addressing matches your configuration database. Tighten terminal screws evenly to prevent intermittent connections. Finally, calibrate each output point during commissioning.
