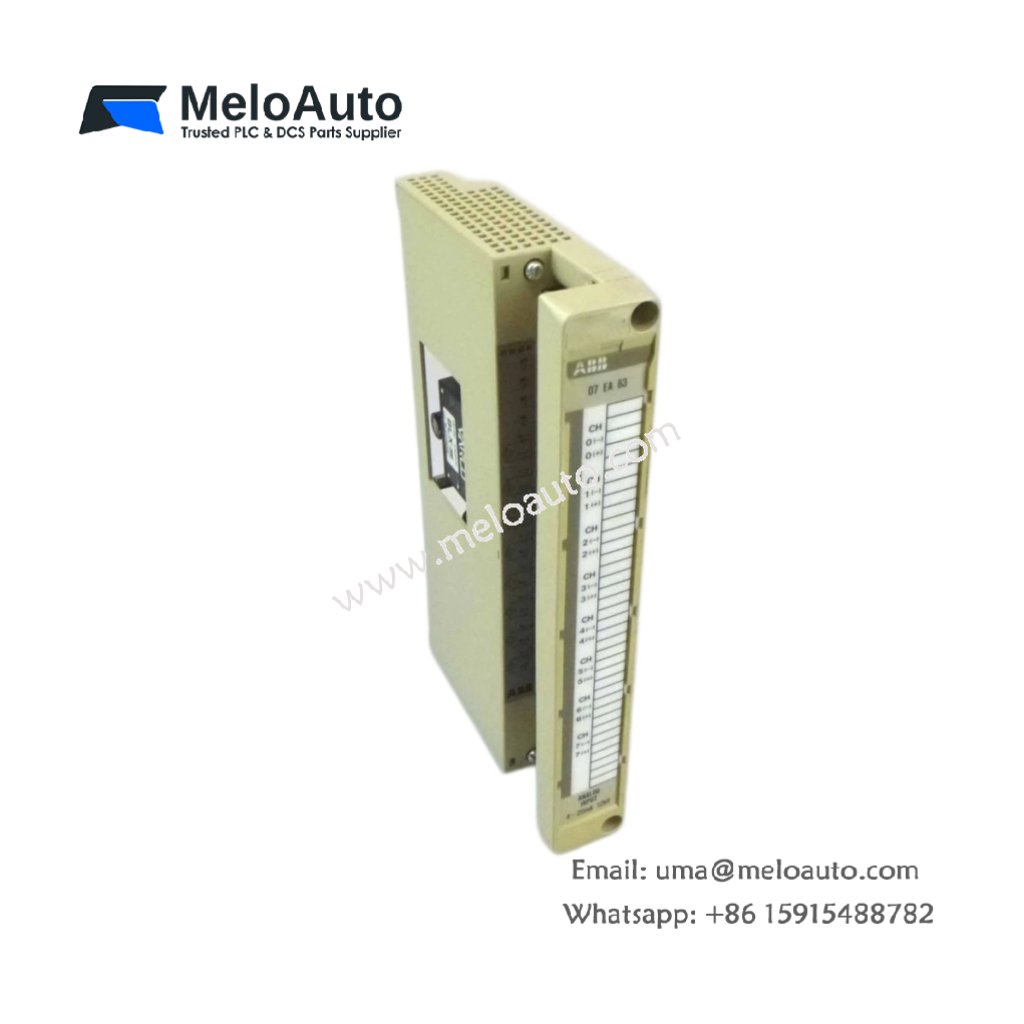

ABB 07 EA 66 R1 Analog Input Module | 8 Ch, 14‑bit, 4‑20 mA

This analog input module captures eight channels of process signals accurately. The ABB 07 EA 66 R1 accepts current and voltage inputs from field transmitters. You can connect pressure, flow, and temperature sensors directly. Its high resolution ensures precise measurement for critical control loops.

Physical Dimensions and Hardware Layout

The ABB 07 EA 66 R1 measures 16.5 cm in overall width. Its total depth reaches 18.2 cm including the terminal hood. This analog input module weighs approximately 0.52 kg. A metal housing provides excellent shielding against electrical noise. One green LED indicates backplane power status. Additionally, eight green LEDs show active channel conversion status.

Input Specifications and Signal Ranges

Each channel accepts 0 to 20 mA or 4 to 20 mA current signals. The ABB 07 EA 66 R1 also accepts 0 to 10V voltage signals. You can configure each channel independently for current or voltage mode. A built‑in 250 Ω resistor activates automatically for current measurements. The module provides 24V DC loop power for two‑wire transmitters.

Parameter	Specification
Number of Channels	8, differential
Current Input Ranges	0 to 20 mA, 4 to 20 mA
Voltage Input Range	0 to 10V
Input Impedance (Current)	250 Ω (internal resistor)
Input Impedance (Voltage)	> 1 MΩ
Resolution	14 bits
Accuracy	±0.1% of full scale
Conversion Time	10 ms per channel
Update Time (all channels)	80 ms
Loop Power Output	24V DC, 30 mA per channel
Dimensions (W x H x D)	165 mm x 90 mm x 182 mm
Weight	0.52 kg (1.15 lbs)
Terminal Type	Removable 20‑pin screw block
Wire Size	0.2 to 2.5 mm²
Number of Terminal Screws	20
Backplane Current Draw	180 mA @ 5V DC
Power Dissipation	1.2 W typical
Internal Energy Storage	100 µF capacitor bank
Isolation Voltage	500 Vrms channel‑to‑backplane
Common Mode Rejection	80 dB at 50/60 Hz
LED Indicators	1 green (power), 8 green (active)
Operating Temperature	0°C to +55°C

Energy Storage and Signal Stability

Internal capacitors stabilize the analog reference voltage locally. The ABB 07 EA 66 R1 maintains reading accuracy during brief power dips. This storage prevents false measurements from supply fluctuations. Consequently, process readings remain reliable in noisy industrial environments.

Configuration and Channel Programming

You configure each channel using the Procontic configuration software. The ABB 07 EA 66 R1 stores channel settings in non‑volatile memory. Select current or voltage mode for each input independently. Enable or disable the 24V loop power per channel as needed. Therefore, mixed signal types can connect to the same module.

Wiring and Installation Guidelines

Connect two‑wire transmitters to the channel positive and negative terminals. The ABB 07 EA 66 R1 provides 24V loop power on dedicated pins. Use shielded twisted‑pair cables for optimal noise rejection. Connect the shield drain wire to the ground terminal only. Proper grounding improves measurement accuracy significantly.
