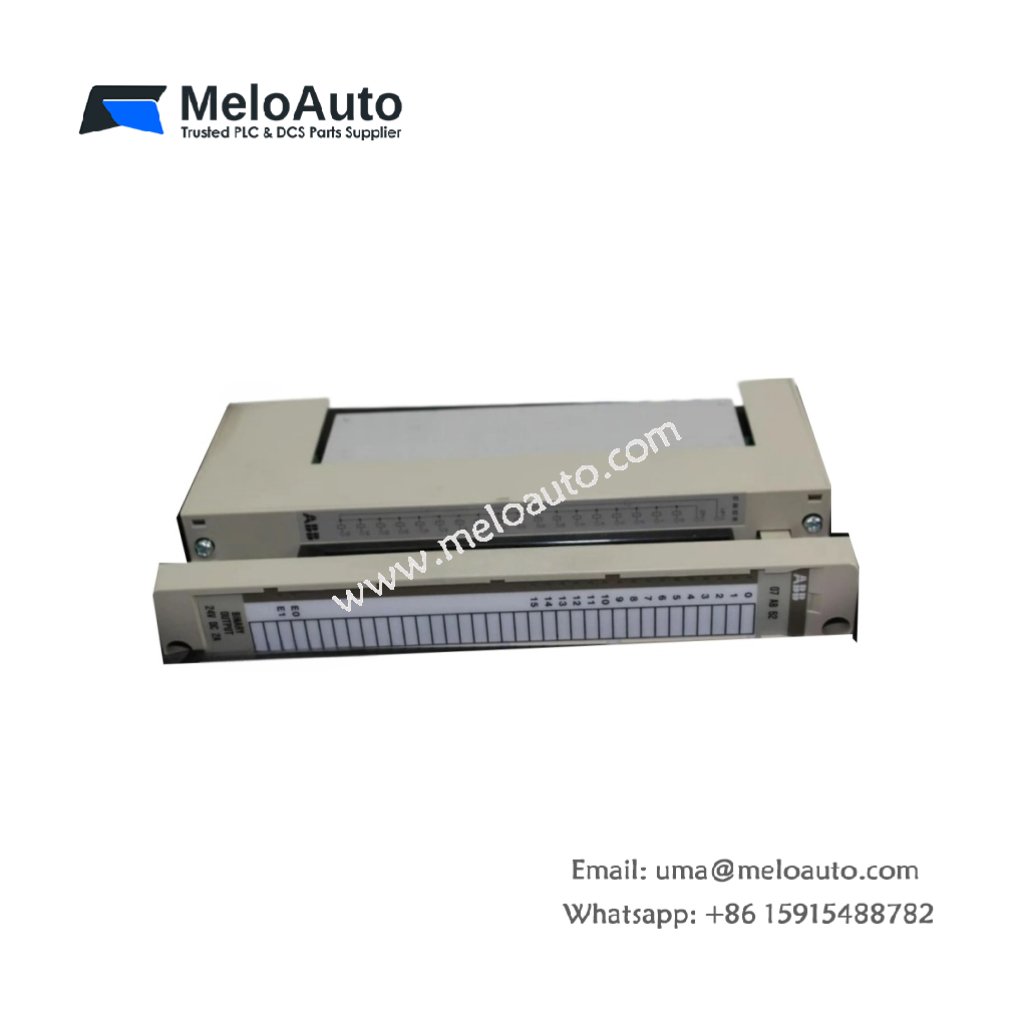

ABB 07 AB 62 R1 Digital Input Module

The 07 AB 62 R1 reads 16 digital field signals for Procontic systems. This module accepts 24V DC inputs from sensors and switches. It provides optical isolation between the field and the backplane.

Key Technical Specifications

Physical Dimensions and Component Layout

This module measures 16.0 cm in length and 9.0 cm in width. Its total height reaches 5.5 cm including the terminal block. 07 AB 62 R1 weighs just 0.22 kg for DIN rail mounting. You will find 82 discrete components on a four-layer PCB.

Moreover, the module integrates a 100 µF capacitor for input filtering. This capacitor smoothes voltage spikes from inductive field devices. It also debounces noisy switch contacts effectively.

Input Channel Design and Characteristics

Each of the 16 channels features an optocoupler for isolation. The optocoupler separates field wiring from the internal 5V logic. Each channel draws only 6 mA from the field supply. Consequently, you can connect many modules to one power supply.

Connector Interface and Field Wiring

A 20-pin screw terminal block accepts field wiring for all 16 inputs. Four additional terminals provide two separate 24V DC field supply connections. Each terminal accepts wire sizes from 26 AWG to 14 AWG. LED indicators sit above each channel for visual status monitoring.

Typical Application Scenarios

You can deploy 07 AB 62 R1 in ABB Procontic racks for industrial control. It also works well for reading limit switches, pushbuttons, and proximity sensors. This module interfaces with relay contacts and selector switches. Its 16 channels suit small to medium automation tasks.
