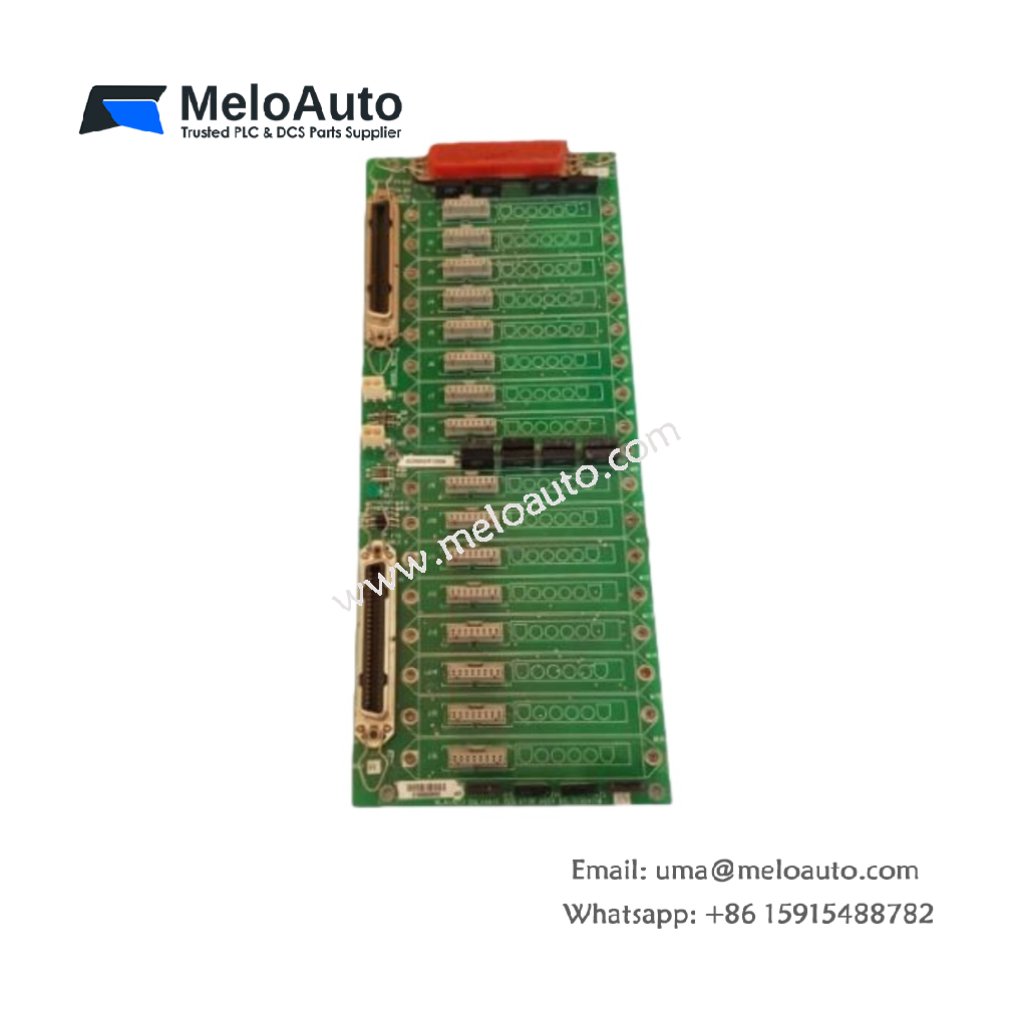

Honeywell MC-TAIH13 32-Channel Analog Input Module

Overview

The Honeywell MC-TAIH13 is a high-performance, 32-channel analog input module designed for use within the TotalPlant Solution (TPS) Distributed Control System (DCS). This module interfaces with various analog signals, such as those from temperature, pressure, and flow sensors. The MC-TAIH13 is ideal for industries requiring precise and real-time data acquisition and processing.

Key Features

32 High-Level Analog Input Channels: Supports the integration of up to 32 analog inputs, providing excellent flexibility.
Wide Input Voltage Range: Accepts signals in the range of 0-10V, 0-20mA, and 4-20mA, making it compatible with most sensor types.
16-bit Resolution: Ensures precise signal conversion for high-quality data.
High Accuracy: Offers 0.05% accuracy, delivering reliable and consistent measurements.
Fast Scan Rate: Features a fast scan rate of 100ms, ensuring real-time performance and minimal delay.
Isolation Between Channels: Provides electrical isolation between channels for enhanced system stability and safety.
Hot-Swappable: The module supports hot-swapping, allowing for maintenance or replacement without system downtime.

Technical Specifications

Specification	Details
Model	Honeywell MC-TAIH13
Product Type	32-Channel Analog Input Module
Compatible System	TotalPlant Solution (TPS) DCS
Input Channels	32 high-level analog input channels
Input Voltage Range	0-10V, 0-20mA, 4-20mA
Resolution	16 bits
Accuracy	0.05%
Scan Rate	100ms
Isolation Between Channels	Yes
Hot-Swappable	Yes
Application Areas	Industrial automation, process control, power generation, oil and gas, chemical processing, food and beverage, pharmaceutical manufacturing
Dimensions	40 x 25 x 10 mm
Weight	Approximately 1.2 kg (2.6 lbs)

Applications

The Honeywell MC-TAIH13 is suitable for a wide range of applications, including:

Industrial Automation: Facilitates the integration of sensors into automated systems.
Process Control: Provides essential data for controlling and monitoring industrial processes.
Power Generation: Used for monitoring and controlling power generation systems.
Oil and Gas: Critical for monitoring equipment and processes in oil and gas fields.
Chemical Processing: Ensures precise measurements in chemical manufacturing environments.
Food and Beverage Processing: Supports process control in food and beverage production lines.
Pharmaceutical Manufacturing: Monitors and ensures consistent production quality in pharmaceutical plants.

Why Choose Honeywell MC-TAlH13?

The Honeywell MC-TAIH13 offers reliable, high-accuracy data acquisition with flexible input options and fast scan rates. It is perfect for industries requiring precise control, monitoring, and automation. With its high-level analog input capability, accuracy, and isolation features, this module integrates seamlessly into complex industrial systems.
