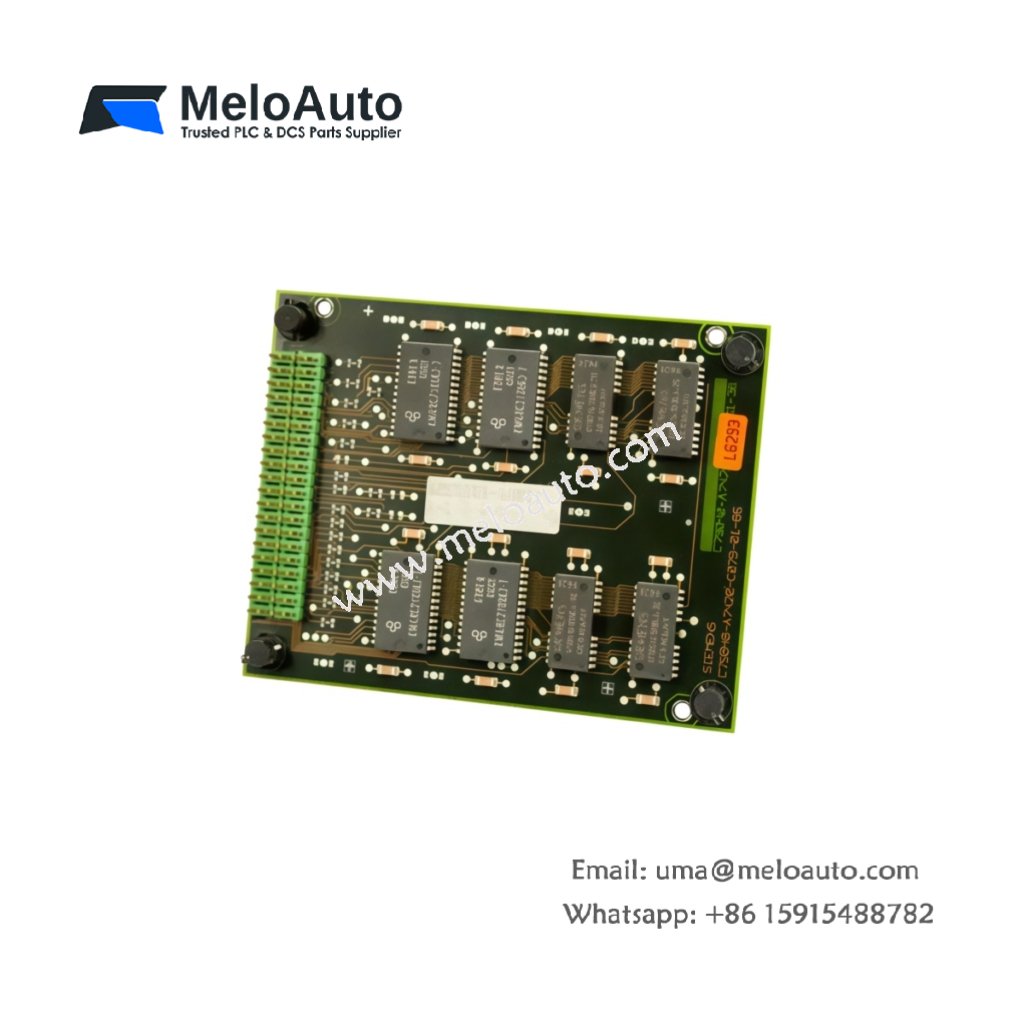

Siemens 6ES5581-1HB11 Memory Expansion Module

Technical Overview

The Siemens 6ES5581-1HB11 is a CP 581 memory expansion module for the SIMATIC S5 programmable controller series. This module provides additional memory capacity for complex automation systems, expanding the total memory to 8 MB. It enables storage of large user programs, extensive data logs, and sophisticated communication configurations.

This CP 581 communication processor module supports high-speed data exchange and offers flexible connectivity options. It integrates seamlessly with the SIMATIC S5 system architecture and remains a critical component for maintaining and upgrading legacy S5 installations. The module’s compact design allows installation in standard S5 rack slots.

Technical Specifications

Key Features

8 MB Memory Expansion – The Siemens 6ES5581-1HB11 increases the memory capacity of SIMATIC S5 systems to 8 MB, accommodating large-scale automation programs and data storage requirements.

CP 581 Communication Processor – This module functions as a communication processor, enabling high-speed data exchange between the PLC and other automation devices .

S5 System Compatibility – The module integrates seamlessly with the SIMATIC S5 platform, providing a reliable upgrade path for legacy automation installations.

Compact and Lightweight Design – At only 0.08 kg, the module saves valuable rack space and simplifies installation .

RoHS Compliance – The module meets current environmental standards for restricted substances .

Applications

The Siemens 6ES5581-1HB11 suits large-scale manufacturing automation, process control, and distributed control systems. It is ideal for extending the memory capacity of SIMATIC S5 systems requiring extensive program storage and complex communication configurations.
