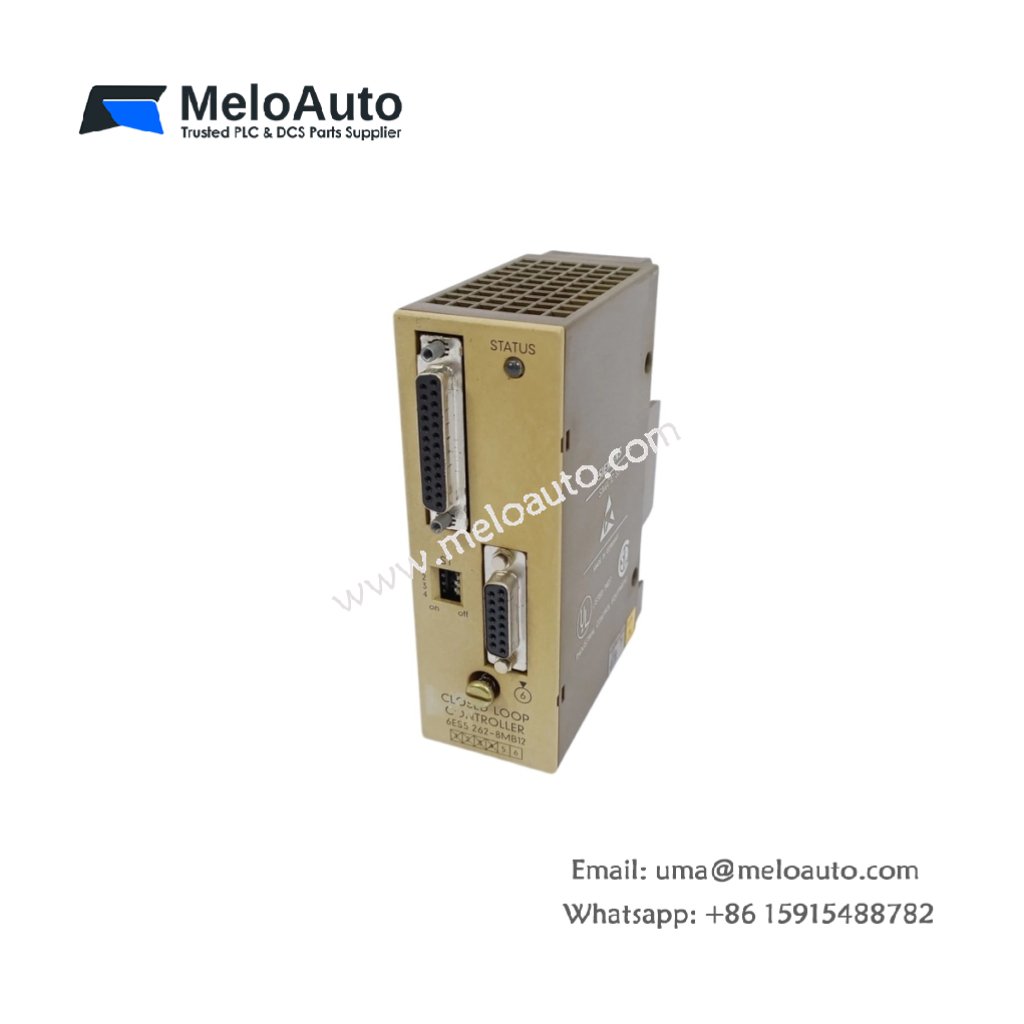

Siemens 6ES5262-8MB12 Closed-Loop Control Module

Technical Overview

The Siemens 6ES5262-8MB12 (IP 262) is a compact and intelligent closed-loop control module from the SIMATIC S5 series, specifically designed for the S5-90U, S5-95U, and S5-100U PLC systems . This module functions as an intelligent peripheral capable of executing complex PID control algorithms independently . This architecture offloads the main CPU, thereby improving overall system performance for control-intensive applications.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5262-8MB12
Product Type	IP 262 Closed-Loop Control Module
System Compatibility	SIMATIC S5-90U, S5-95U, S5-100U
Number of Control Loops	4 independent PID loops
Analog Inputs	4 channels
Digital Inputs	4 channels
Digital Outputs	8 channels
Control Algorithm	PID (P/PI/PID configurable)
Input Signal Types	0-10V, 0-20mA, ±10V (configurable)
Output Signal Types	0-10V, 0-20mA
Resolution	12 bits
Control Cycle	Configurable, typical 10 ms to several seconds
Rated Voltage	24 V DC
Weight	Approx. 0.32 – 0.4 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Protection Rating	IP20

Key Features

Independent PID Control – The Siemens 6ES5262-8MB12 can execute up to four independent PID control loops, significantly reducing the processing burden on the S5 CPU . This architecture ensures deterministic control for critical loops.

Flexible Signal Configuration – Each analog input and output channel is configurable for 0-10V or 0-20mA signals, providing compatibility with a wide range of sensors and actuators . This flexibility simplifies integration into existing systems.

Built-in Diagnostics and Protection – The module features comprehensive diagnostic LEDs and short-circuit protected analog outputs . These features simplify troubleshooting and protect the module from field-side faults.

Compact and Robust Design – With its compact Euro-card form factor and IP20 protection, the 6ES5262-8MB12 is well-suited for installation in space-constrained control cabinets .

Efficient Parameterization – You can configure the module’s parameters and setpoints via data blocks (DB) using the STEP 5 programming language . This method provides a flexible and efficient means of setup.

Applications

The Siemens 6ES5262-8MB12 is primarily used for temperature control, pressure regulation, flow control, and position control in manufacturing, chemical processing, and material handling systems. It is a key component for maintaining and upgrading legacy SIMATIC S5 installations.
