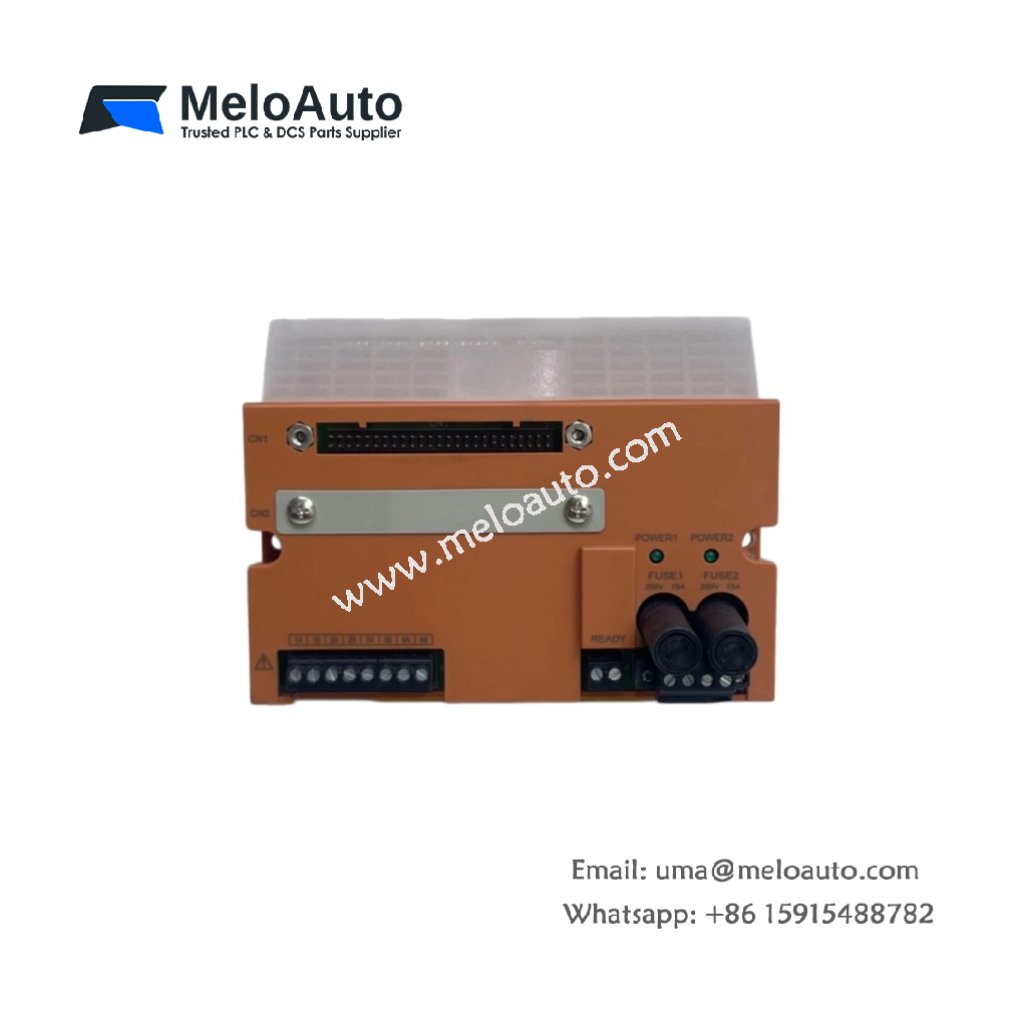

Yokogawa SED2D-01 Terminal Board

The SED2D-01 Terminal Board from Yokogawa provides reliable integration of field I/O signals to I/O modules within control stations. Designed for industrial automation, it ensures secure signal transmission and consistent performance. With a focus on high safety standards and robust operation, the is an excellent choice for demanding industrial environments.

Key Technical Specifications

Here are the key technical specifications for the Terminal Board:

Parameter	Value
Model	SED2D-01
Manufacturer	Yokogawa
Number of Channels	4 channels
Mounting Screws	4 M4 screws
Certifications	SIL3, SDV521, AKB651
Weight	2.3 kg
Insulation Resistance	Minimum 100 MΩ at 500 V DC
Withstanding Voltage	2000 V AC for 1 minute

Features and Benefits

The SED2D-01 offers a variety of features that enhance its reliability and versatility in industrial automation:

Multiple Channels: This terminal board supports 4 channels, allowing for flexible and efficient signal routing within your control system.
High Voltage Tolerance: The SED2D-01 can withstand up to 2000 V AC for 1 minute, offering excellent durability in high-voltage environments.
Reliable and Secure Connections: Equipped with 4 M4 screws, it ensures stable and secure connections, reducing the risk of signal loss.
Safety Certifications: Certified with SIL3, SDV521, and AKB651, the SED2D-01 meets high safety standards, making it ideal for critical process applications.
Robust Insulation Resistance: With a minimum insulation resistance of 100 MΩ at 500 V DC, this terminal board guarantees safe operation in harsh electrical environments.

Applications

The SED2D-01 is ideal for use in various industrial applications, such as:

Process Control Systems: It provides a reliable interface for field devices and I/O modules, ensuring smooth communication in industrial control processes.
Automation Systems: Perfect for applications where secure and stable signal transmission is critical, such as in manufacturing plants and control stations.
Hazardous Environment Operations: With high voltage tolerance and SIL3 certification, it is suitable for use in environments with stringent safety requirements, such as chemical plants and power stations.

The SED2D-01 Terminal Board ensures reliable performance and seamless integration, helping to optimize your automation systems.
